Australian architecture is undergoing a significant transformation. For decades, standard sliding and awning windows dominated the suburban landscape, primarily due to lower costs and simple manufacturing. However, as energy efficiency standards tighten and homeowners demand higher comfort levels, the market is shifting toward high-performance European designs adapted for the harsh Australian climate. Among these, Aluminium Tilt and Turn Windows have emerged as a frontrunner, offering a sophisticated "three-in-one" mechanism that combines fixed glazing security, door-like access, and hopper-style ventilation.
While unplasticized polyvinyl chloride (uPVC) and timber are common in Europe, this guide focuses specifically on aluminium. In Australia, building materials must withstand intense ultraviolet (UV) radiation and strict Bushfire Attack Level (BAL) compliance, areas where aluminium excels. This article provides a comprehensive evaluation for homeowners and builders. We aim to determine if the higher upfront investment in these advanced systems delivers a sufficient return on investment (ROI) regarding thermal comfort, asset protection, and property value.
Dual Functionality: Unmatched control over ventilation (Tilt) and ease of access/cleaning (Turn).
Material Superiority: Why thermally broken aluminium outperforms uPVC in Australian UV conditions and bushfire zones.
Security & Sealing: Multi-point locking systems offer superior air tightness and burglary protection compared to sliders.
Implementation Realities: Addressing common concerns regarding flyscreens, blinds, and installation costs.
To understand why these windows are often called the "engineer’s choice," you must look past the glass to the hardware. Unlike a sliding window, which relies on simple tracks and rollers, a tilt and turn window operates via a complex system of linkages, stays, and locking cams located inside the frame.
The user interface is deceptively simple: a single handle controls three distinct mechanical states. This design eliminates the need for multiple latches or winders, streamlining both aesthetics and functionality.
Locked (Handle Down): In this position, the window is fully closed. The hardware engages multiple locking points around the entire perimeter of the sash. This compression sealing is critical. It squeezes the weather stripping tightly against the frame, providing maximum weatherproofing and sound reduction.
Turn Mode (Handle at 90°): Rotating the handle to the horizontal position disengages the side locks but keeps the hinge side active. The sash swings inward completely, functioning exactly like a door. This mode allows for rapid air exchange—ideal for "purging" hot air from a room in minutes—and serves as a compliant emergency egress route in case of fire.

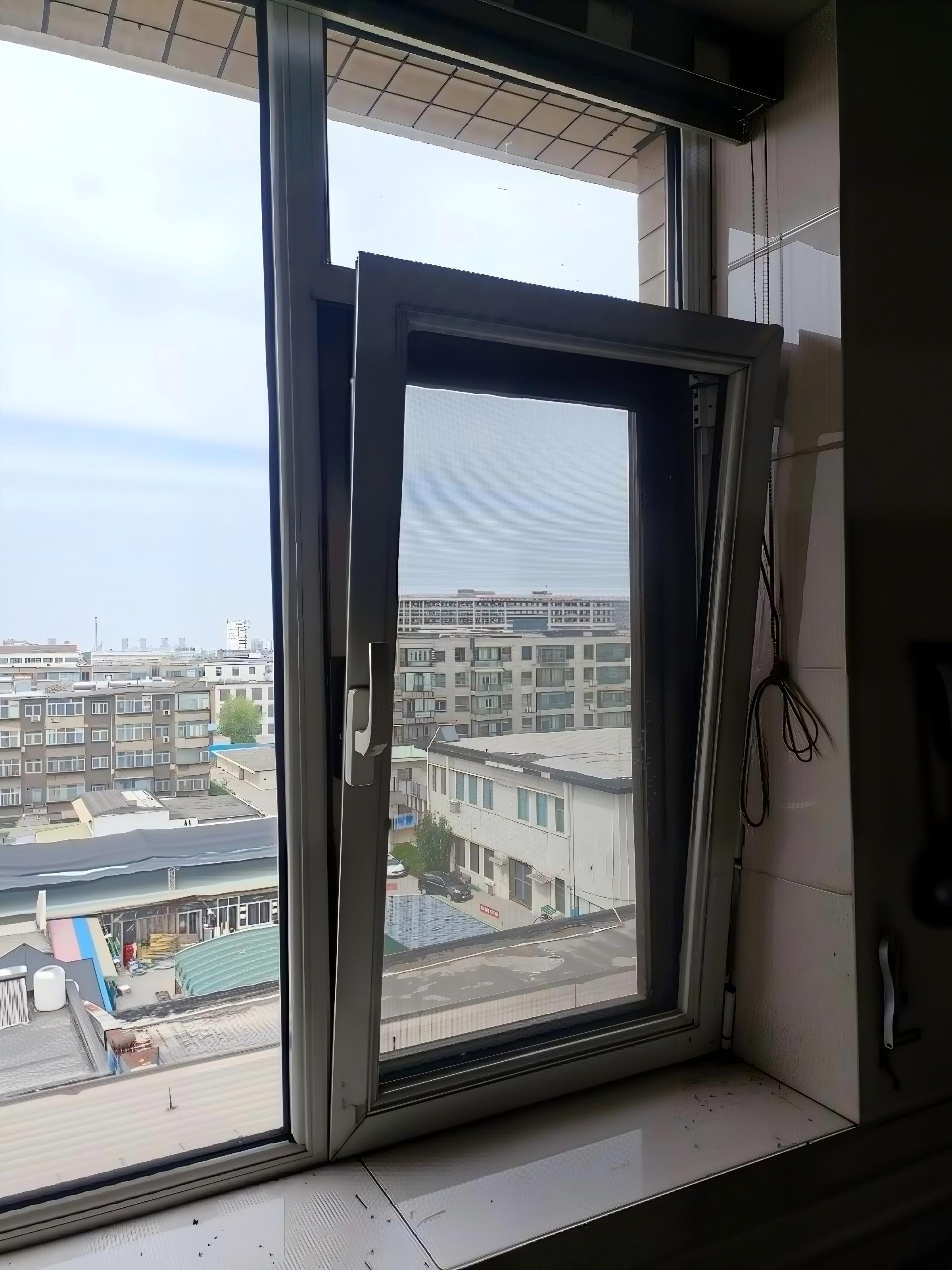

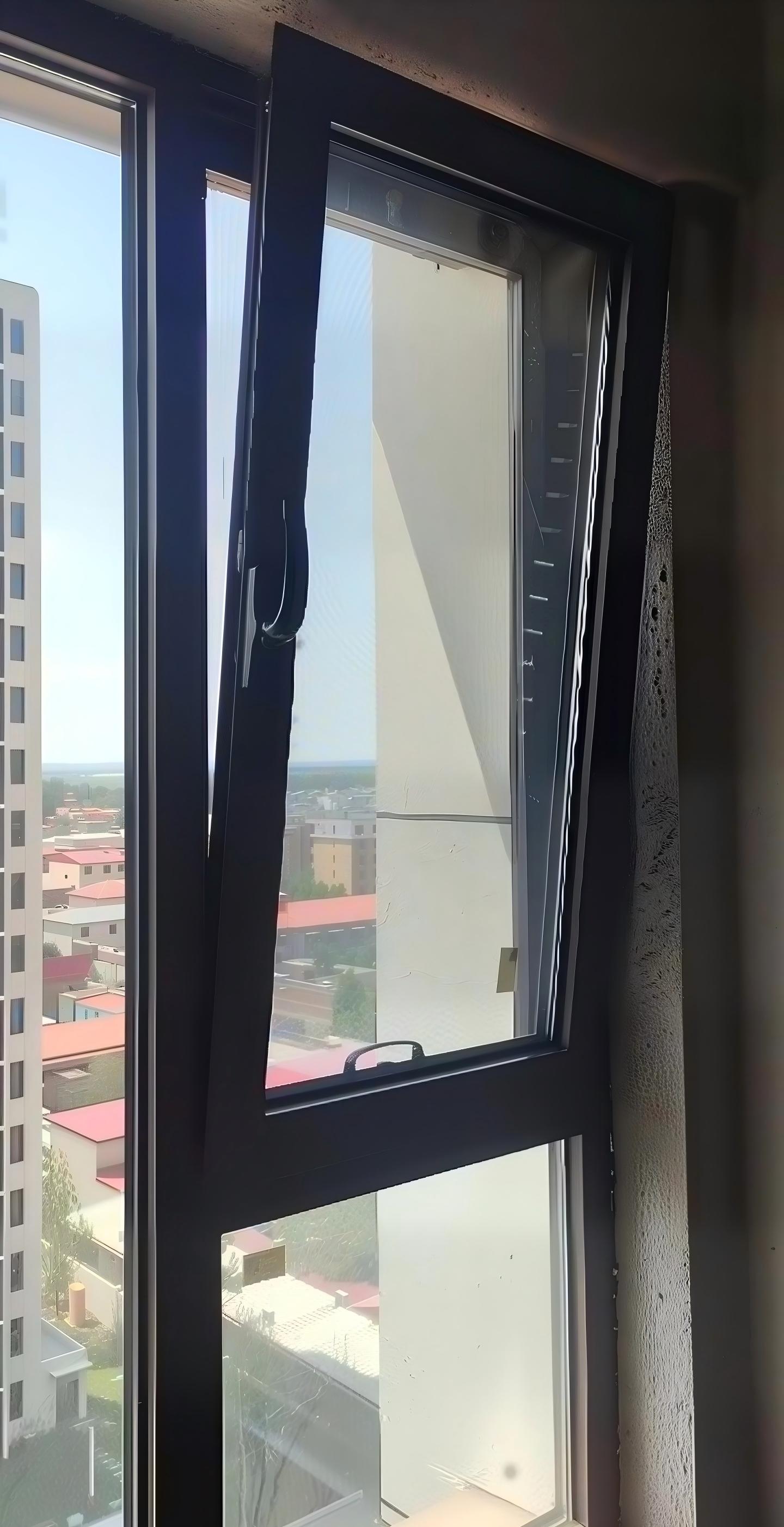

Tilt Mode (Handle at 180°): Turning the handle to point vertically upward engages a pivot mechanism at the bottom corners. The top of the sash tilts inward by approximately 10 to 15 degrees. This creates a hopper effect, directing airflow toward the ceiling rather than across the room. It facilitates ventilation without creating direct drafts at body level and maintains rain protection even during sudden downpours.
The engineering challenge with this design is weight. Modern energy requirements often dictate the use of double or even triple glazing. A floor-to-ceiling glass sash can weigh over 80 kilograms. Standard residential aluminium framing, often only 1.8mm thick, may flex or warp under such loads, leading to operation failure.
High-quality systems address this by increasing the wall thickness of the aluminium extrusion. A 2.8mm Thickness Tilt and Turn Window profile provides the necessary structural rigidity. This added mass ensures the hinges remain aligned over decades of use, preventing the sash from sagging—a common issue in cheaper vinyl alternatives. When evaluating quotes, checking the profile thickness is a reliable way to gauge the window's longevity.
The debate between plastic (uPVC), wood, and metal is ongoing. However, the unique environmental factors of the Australian continent often tip the scales in favor of high-grade aluminium.
Australia has some of the highest UV radiation levels in the world. While uPVC technology has improved, plastic materials are inherently more susceptible to UV degradation than powder-coated metal. Over a 20-year cycle, lower-quality uPVC can suffer from discoloration (yellowing) or become brittle. Aluminium is immune to this UV damage. Its structural integrity remains unchanged whether it is installed in the scorching heat of the Pilbara or the coastal sun of Queensland.
Bushfire compliance is another critical factor. Many Australian homes fall within Bushfire Attack Level (BAL) zones. Timber is combustible and often requires expensive treatment or shutters to meet code. Aluminium is non-combustible. It inherently meets higher BAL ratings, offering peace of mind to homeowners in fire-prone regions without requiring additional, unsightly protective barriers.
Historically, aluminium was criticized for being a poor insulator because metal conducts heat. This is where modern engineering intervenes. You should never install standard, solid aluminium frames if energy efficiency is a goal. Instead, Thermal Insulation Tilt and Turn Windows utilize a "thermal break."
A thermal break is a reinforced polyamide strip that separates the interior and exterior aluminium sections. This strip acts as a barrier, stopping heat transfer. It ensures the inside of the frame remains close to room temperature, regardless of the weather outside. This technology also controls condensation. By preventing the inner frame from becoming cold, thermally broken systems eliminate the "sweating" that leads to mold growth on curtains and sills—a frequent problem with older, single-pane aluminium windows.
Architecturally, aluminium offers a distinct advantage: strength-to-weight ratio. To support a large pane of heavy glass, a uPVC frame must be thick and bulky, often resulting in "plasticky" sightlines that reduce the view. Aluminium is stronger, allowing for slimmer profiles that maximize the glass area. This makes it the superior material for modern "floor-to-ceiling" designs where the boundary between indoor and outdoor spaces is minimized.
| Feature | Standard uPVC | Thermally Broken Aluminium | Timber |
|---|---|---|---|
| UV Resistance | Moderate (Risk of yellowing) | Excellent (Immune) | Good (Needs painting) |
| Bushfire Safety | Low (Combustible) | High (Non-combustible) | Low to Medium (Depends on wood) |
| Frame Profile | Bulky/Thick | Slim/Architectural | Bulky/Variable |
| Maintenance | Low | Zero | High (Sanding/Sealing) |
Beyond materials, the actual performance of the tilt and turn mechanism sets it apart from traditional Australian window styles.
Sliding windows typically rely on a single central latch. If a burglar forces the frame, the latch can often be bypassed. In contrast, tilt and turn windows utilize a perimeter locking system. When the handle is turned down, "mushroom cams" (steel locking pins) slide into strikers located on all four sides of the frame. This multi-point engagement makes the window virtually impossible to pry open from the exterior. It forces the sash tightly against the seals, creating a bank-vault-like closure.
The compression seal design offers a unique advantage in extreme weather. With sliding windows, wind pressure can rattle the sash and eventually force air or water through the brush seals. With a tilt and turn design, wind pressure actually pushes the sash tighter against the frame's rubber gaskets. The stronger the wind blows, the tighter the seal becomes.
For regions prone to cyclones or severe storms, this is a game-changer. Specialized Hurricane Proof Tilt and Turn Window options are available that reinforce this capability, ensuring water penetration resistance even under horizontal rain conditions.
Noise pollution is a growing concern for inner-city living. The dual-compression seals used in these windows significantly reduce air infiltration, which is the primary carrier of sound. When combined with laminated or double glazing, these systems offer exceptional decibel reduction.
For projects requiring elite performance, builders often look for Apollo PHI Certificates Tilt and Turn Window specifications. These certificates indicate compliance with Passive House standards, representing the gold standard for airtightness and acoustic insulation in the global construction industry.
While the technical specs are impressive, the daily lifestyle benefits often justify the investment for homeowners.
Cleaning windows on a second story is usually a dangerous or expensive task, often requiring ladders, scaffolding, or professional cleaners. Tilt and turn windows solve this pain point entirely. By switching the window to "Turn" mode, the sash swings inward 90 degrees. This allows you to safely clean the exterior glass surface while standing comfortably inside the room. For multi-story homes or apartments, this feature alone can save thousands of dollars in maintenance costs over the life of the building.
The "Tilt" function facilitates secure passive ventilation. Homeowners can leave the windows tilted open at night for "night purging"—allowing cool air to enter and hot air to escape—without compromising security. Because the opening at the top is narrow and the bottom hinge remains engaged, it prevents intruder entry. Furthermore, this mode is safer for families. The restricted opening prevents small children from falling out, whereas a fully open sliding or awning window presents a significant fall risk.
It is true that Energy Efficient Tilt and Turn Windows carry a higher price tag than standard glazing. However, the Total Cost of Ownership (TCO) often favors them. Aluminium requires no painting, unlike timber which needs treatment every few years. It does not degrade or warp like rubber or plastic components. With a lifecycle exceeding 40 years and significant reductions in heating and cooling bills due to thermal breaks, the initial premium is recovered through operational savings and increased asset longevity.
Despite their benefits, these windows require careful planning. They operate differently than what most Australians are used to, which introduces specific integration challenges.
The number one objection from Australian buyers is, "How do I use flyscreens if the window opens inwards?" You cannot mount a standard screen on the inside face of the frame. Solutions exist but must be planned early. Options include retractable screens that roll away when not in use, or fixed screens mounted externally. External screens allow full use of the "Tilt" function but must be removable if you plan to use the "Turn" function for egress or cleaning.
The "Turn" mode requires clearance. If you place a sofa or a heavy desk directly in front of the window, you will block the sash from swinging inward. This impacts furniture layout. Similarly, window treatments like curtains or blinds cannot interfere with the swing. Homeowners often opt for pelmets to clear the sash or install blinds directly onto the window sash itself (integrated blinds) so they move with the window.
These windows are heavy technical instruments. Installation is not a job for a general handyman. The frame must be perfectly square and plumb; otherwise, the locking cams will not align, and the sash may bind. Engaging a specialized Tilt and Turn Windows manufacturer or a certified installer is non-negotiable. They ensure the weight is distributed correctly across the structural opening.
While versatile, there are size limits based on weight. A Custom Tilt and Turn Window can be large, but if the sash exceeds the hinge capacity (often 100kg-130kg), performance suffers. Architects must balance the desire for massive panes of glass with the mechanical realities of the hardware.
Aluminium Tilt and Turn windows represent the "engineer's choice" for modern Australian homes. They successfully balance conflicting requirements: bushfire safety, structural longevity, and thermal efficiency. While they may present a learning curve regarding flyscreens and interior clearance, their performance advantages are undeniable.
The upfront investment is typically 20–30% higher than standard sliding options. Yet, the ROI is realized through substantial energy savings, near-zero exterior maintenance, and enhanced property security. For those building in noisy urban environments or harsh coastal climates, they are an essential asset rather than a luxury.
When requesting quotes, ensure you specify "Thermally Broken" aluminium profiles and verify that the product meets the BAL rating for your specific location. This ensures you receive the full benefit of this advanced fenestration technology.
A: Yes, particularly when evaluating Total Cost of Ownership. While the initial purchase price is higher, the inclusion of thermal breaks significantly lowers energy bills for heating and cooling. Furthermore, aluminium eliminates the repainting costs associated with timber and avoids the replacement costs of degrading plastic, offering a 40+ year service life.
A: Yes, but they require a different approach than sliding windows. Because the window swings inward, screens are typically installed on the exterior frame. For full functionality, retractable screens are popular, or removable fixed external screens can be used if you primarily rely on the "Tilt" function for ventilation.
A: Standard aluminium is a poor insulator because it conducts heat. However, thermally broken aluminium is excellent for insulation. These frames feature a polyamide strip that separates the interior and exterior metal, stopping heat transfer and matching or exceeding the performance of uPVC and timber.
A: The "V-shape" opening created during the Tilt mode can be a trap hazard for cats trying to jump out. It is essential to install side protection grills or use restrictive limiters if you have adventurous pets. However, for dogs and small children, the high tilt opening is generally much safer than a wide-open sliding window.
A: Tilt and Turn Windows offer superior airflow. An awning window typically opens only partially at the bottom, restricting ventilation to about 30% of the opening capacity. A Tilt and Turn window in "Turn" mode opens 100%, allowing for maximum rapid ventilation. Additionally, you cannot clean the outside of an awning window from the inside.
