Tilt&Turn Window
Key points
Improved Ventilation, Accessible Maintenance, Integrated Security Solutions, Thermal Efficiency, Optimized Space Utilization
Benefits
Apollo have passed the PHI passive window certification, and are certified for the most difficult climate zone - the cold temperate climate, suitable for Nordic countries. Equipped with imported TECHNOFORM PA66GF25 insulation strips as standard, using ultra-wide 64mm insulation strips, and the insulation effect is 2-3 times higher than conventional ones.
| Quantity: | |
|---|---|
Apollo
Rolansini

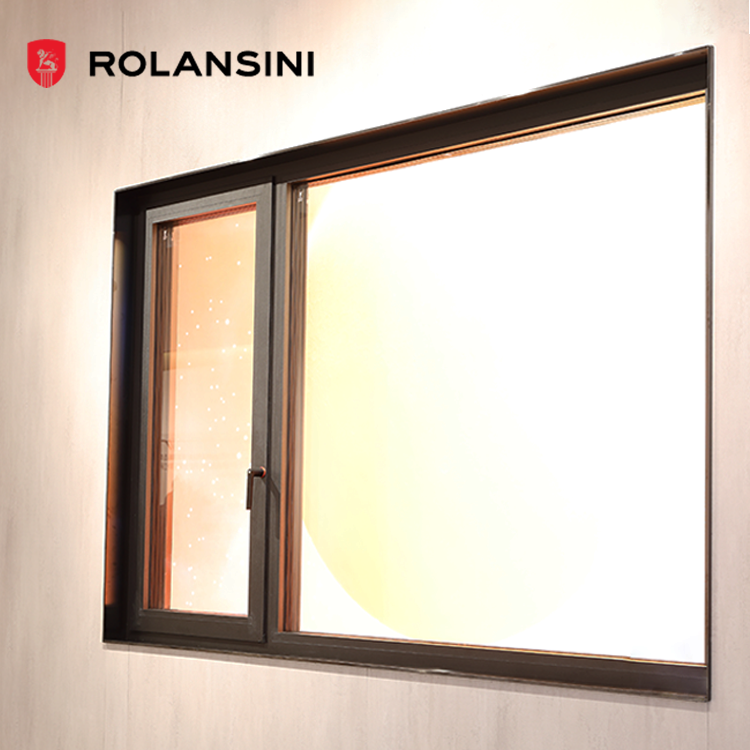

In the realm of high-performance windows, the Apollo PHI certified tilt&turn window stands out as a benchmark of innovation, engineered to meet the most stringent energy-saving and safety standards. Designed by Rolansini, a leading manufacturer in China, this window combines German-inspired technology with cutting-edge materials to deliver exceptional performance, making it ideal for cold-temperate climates—particularly Nordic countries where thermal efficiency and durability are non-negotiable.
At the heart of the Apollo passive house tilt&turn window is its commitment to passive house standards, validated by the prestigious PHI (Passive House Institute) certification. This certification ensures the window meets the strictest criteria for energy efficiency, making it suitable for the harshest cold-temperate zones, where temperatures can plummet to -35°C. Beyond energy savings, the window offers a suite of user-centric benefits: improved ventilation through its dual tilt-and-turn functionality, accessible maintenance for long-term upkeep, integrated security solutions to protect against intruders, and optimized space utilization—a key advantage for compact living environments.
A standout feature is its thermal insulation system. Equipped with imported TECHNOFORM PA66GF25 insulation strips as standard, the window uses ultra-wide 64mm insulation strips—a design that boosts insulation efficiency by 2-3 times compared to conventional windows. This, paired with advanced glazing technology, ensures minimal heat loss, reducing reliance on heating systems and lowering energy bills year-round.
Specification | Details |
Profile Reinforcement | 2.0mm |
Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
Frame Depth | 110mm |
Frame Width (Internal) | 40.8mm |
Sash Width (Internal) | 79mm |
Max. Leaf Width | 510-1300mm |
Max. Leaf Height | 750-1700mm |
Glass Standard | 70mm (6G low-e + 16A + 6G low-e + 16A + 5G + 16A + 5G) Quadruple Toughened Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 71mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Quadruple Panes, Triple Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure Glass |
Hardware | Belgium SOBINCO |
Screens/Blinds | No Screen, No Blinds |
Standards Compliance | ISO9001, CE, NFRC, AS2047, PHI Certification |
Warranty | 10 Years (Terms and conditions apply) |
The Apollo window's thermal performance is elevated by its 70mm quadruple glazing system, a sophisticated design comprising 6G low-e glass (x2) + 16mm argon gas cavities (x3) + 5G glass (x2). This configuration achieves an impressive U-value of 0.78W/m²K (PHI Class C), outperforming even the EU’s top-tier Energy A++ standards. Beyond insulation, the glazing delivers 42dB noise reduction, creating a peaceful indoor environment even in busy or noisy areas.
Complementing the glazing is the use of aerogel-filled cavities within the frame, which work with the 64mm Technoform thermal breaks to eliminate thermal bridging. This combination ensures the window operates reliably in extreme temperatures, from -35°C to 40°C, while maintaining 92% visible light transmission—balancing energy efficiency with natural illumination.
Safety is paramount in the Apollo design, thanks to Belgium SOBINCO's RC2-certified tilt&turn hardware. This system is rigorously tested to withstand 5,000Pa wind loads—equivalent to a Category 5 typhoon—making it ideal for regions prone to severe weather. The frame, crafted from 6063-T5 aluminum alloy with 4.5mm reinforced corners, and 130kg-rated hinges, resists shear forces of up to 15,000N, ensuring structural integrity under pressure.
For enhanced security, the window features multi-point steel-reinforced locks. Its dual inward-opening design allows for 15° secure ventilation even during monsoons, preventing rain ingress while maintaining airflow. Optional upgrades, such as laminated glass and anti-drill strike plates, extend forced-entry resistance to 8 minutes, providing peace of mind for homeowners and commercial spaces alike.
