Tilt&Turn Window
Key points
Improved Ventilation, Easy Cleaning, Enhanced Security, Energy Efficiency, Space Saving
Benefits
110 stronger reinforced window frames can significantly reduce energy loss by preventing drafts and maintaining a better seal. This, in turn, can contribute to lower heating and cooling costs.The structural support offered by modern aluminium alloys can easily support the weight of heavy glass panes.
| Quantity: | |
|---|---|
The 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window from Rolansini, a leading China manufacturer, is a high-performance window solution designed to meet the demands of various architectural needs. This window combines advanced technology and superior materials to offer a range of benefits, making it an ideal choice for both commercial and residential buildings, especially in areas prone to extreme weather conditions.
With its unique design and exceptional features, this tilt&turn window stands out in the market. It not only provides enhanced security and energy efficiency but also offers convenience in terms of ventilation and cleaning. Whether it's a high-rise building in a bustling city or a coastal home facing the threat of typhoons, this window is engineered to deliver reliable performance.
One of the most prominent advantages of the 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window is its outstanding hurricane resistance. The window features a cyclone-resistant structure with 110mm reinforced frames and 2.8mm-thick aluminum, which is twice as strong as standard aluminum materials. This robust construction allows it to withstand Chinese standard Grade 17 typhoons (≥51.0m/s), ensuring the safety of the building and its occupants even in the harshest weather conditions.
In addition, the window is equipped with 30mm-wide steel-reinforced center bars and 4 base supports, which prevent sway in large panels (up to 3.5m tall). The inclusion of anti-drop chains, which are steel safety cables with a 200kg load rating, adds an extra layer of protection by preventing accidental detachment, even if hinges fail during typhoons.
The 110 stronger reinforced window frames play a crucial role in enhancing energy efficiency. They effectively prevent drafts and maintain a better seal, significantly reducing energy loss. This, in turn, contributes to lower heating and cooling costs for the building, making it an environmentally friendly and cost-effective choice.

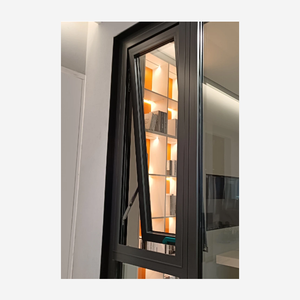

Security is a top priority, and this window doesn't disappoint. It comes with hidden locks, with no exposed parts, which can stop burglars instantly. The German SIEGENIA concealed tilt-turn system adds to the convenience. In tilt mode, it can be opened at a 15° angle, which blocks rain while allowing air to flow without drafts. When fully opened (90° inward opening), it enables easy cleaning of both sides from indoors, saving time and effort.
Specification | Details |
Profile Reinforcement | 2.8mm |
Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
Frame Depth | 112mm |
Frame Width | 44.1mm(Internal Side) |
Sash Width | 77.5mm |
Max. Leaf Width | 450-1000mm |
Max. Leaf Height | 600-1700mm(normal), 1700-2600mm(floor to ceiling) |
Glass Standard | 30mm(5G+ 20A+5G) Double Toughened Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 32 mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Double Panes,Triple Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure...Glass |
Hardware | German SIEGENIA, HOPPE, WEHAG(180°) |
Screens | 304 / 316 Stainless Steel, Foldable Nylon Mesh Screen |
Blinds | HANS Manual Blinds, Electric blinds, Solar Powered Build-in Blinds |
Grills | External Aluminum Bars, Built-in Decorative Bars |
Guardrail | Fixed and Active, Both Removable |
Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA Certification |
Warranty | 10 Years - Terms and conditions apply |
The 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window is designed with maintenance and safety in mind. The use of high-quality materials, such as modern aluminium alloys, ensures that the window can easily support the weight of heavy glass panes, enhancing its durability.
The German SIEGENIA concealed tilt-turn system not only provides convenience in operation but also contributes to the window's safety. The hidden locks and anti-drop chains further reinforce the security features, making it suitable for high-rise commercial and residential buildings in subtropical monsoon climate areas with frequent typhoons.
This window offers a wide range of configurations to meet different architectural and design requirements. From various glass types to different finishes and additional features like screens, blinds, grills, and guardrails, customers can customize the window according to their specific needs. This versatility makes it a flexible choice for a variety of projects.
The 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window from Rolansini, a leading China manufacturer, is a high-performance window solution designed to meet the demands of various architectural needs. This window combines advanced technology and superior materials to offer a range of benefits, making it an ideal choice for both commercial and residential buildings, especially in areas prone to extreme weather conditions.
With its unique design and exceptional features, this tilt&turn window stands out in the market. It not only provides enhanced security and energy efficiency but also offers convenience in terms of ventilation and cleaning. Whether it's a high-rise building in a bustling city or a coastal home facing the threat of typhoons, this window is engineered to deliver reliable performance.
One of the most prominent advantages of the 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window is its outstanding hurricane resistance. The window features a cyclone-resistant structure with 110mm reinforced frames and 2.8mm-thick aluminum, which is twice as strong as standard aluminum materials. This robust construction allows it to withstand Chinese standard Grade 17 typhoons (≥51.0m/s), ensuring the safety of the building and its occupants even in the harshest weather conditions.
In addition, the window is equipped with 30mm-wide steel-reinforced center bars and 4 base supports, which prevent sway in large panels (up to 3.5m tall). The inclusion of anti-drop chains, which are steel safety cables with a 200kg load rating, adds an extra layer of protection by preventing accidental detachment, even if hinges fail during typhoons.
The 110 stronger reinforced window frames play a crucial role in enhancing energy efficiency. They effectively prevent drafts and maintain a better seal, significantly reducing energy loss. This, in turn, contributes to lower heating and cooling costs for the building, making it an environmentally friendly and cost-effective choice.
Security is a top priority, and this window doesn't disappoint. It comes with hidden locks, with no exposed parts, which can stop burglars instantly. The German SIEGENIA concealed tilt-turn system adds to the convenience. In tilt mode, it can be opened at a 15° angle, which blocks rain while allowing air to flow without drafts. When fully opened (90° inward opening), it enables easy cleaning of both sides from indoors, saving time and effort.
Specification | Details |
Profile Reinforcement | 2.8mm |
Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
Frame Depth | 112mm |
Frame Width | 44.1mm(Internal Side) |
Sash Width | 77.5mm |
Max. Leaf Width | 450-1000mm |
Max. Leaf Height | 600-1700mm(normal), 1700-2600mm(floor to ceiling) |
Glass Standard | 30mm(5G+ 20A+5G) Double Toughened Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 32 mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Double Panes,Triple Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure...Glass |
Hardware | German SIEGENIA, HOPPE, WEHAG(180°) |
Screens | 304 / 316 Stainless Steel, Foldable Nylon Mesh Screen |
Blinds | HANS Manual Blinds, Electric blinds, Solar Powered Build-in Blinds |
Grills | External Aluminum Bars, Built-in Decorative Bars |
Guardrail | Fixed and Active, Both Removable |
Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA Certification |
Warranty | 10 Years - Terms and conditions apply |
The 110 Series 2.8mm Thickness Hurricane Proof Tilt&Turn Window is designed with maintenance and safety in mind. The use of high-quality materials, such as modern aluminium alloys, ensures that the window can easily support the weight of heavy glass panes, enhancing its durability.
The German SIEGENIA concealed tilt-turn system not only provides convenience in operation but also contributes to the window's safety. The hidden locks and anti-drop chains further reinforce the security features, making it suitable for high-rise commercial and residential buildings in subtropical monsoon climate areas with frequent typhoons.
This window offers a wide range of configurations to meet different architectural and design requirements. From various glass types to different finishes and additional features like screens, blinds, grills, and guardrails, customers can customize the window according to their specific needs. This versatility makes it a flexible choice for a variety of projects.
