Last year, we were fortunate to undertake two high-end villa door and window projects for a Canadian contractor.
Located in the harsh climate of Canada, this project presented clear and high-standard requirements for the window and door system: residential windows and doors must be CSA certified and possess excellent cold-weather performance (Climate Guard). Triple-pane glazing was required to prevent condensation.
Simply put, condensation is when warm, humid indoor air comes into contact with a cold glass surface, rapidly cooling and condensing into water droplets, much like how a can of iced drink quickly "sweats" after being taken out of the refrigerator.
In Canada's cold winters, the inner surface temperature of ordinary double-glazed windows can become extremely low, easily causing moisture from the indoor air to condense and even freeze. This not only wets the windowsill, but prolonged dampness can also breed mold, damaging walls and furniture.
The argon-filled configuration of triple-pane glass is the "black technology" that solves this problem. Its principle is not complicated:
Adding an insulation layer: Compared to double-pane glass, triple-pane glass has an extra layer of glass and an air (or gas) layer. This is equivalent to putting a thicker "down jacket" on the window, greatly increasing thermal resistance and making it more difficult for the cold outside to conduct to the indoor side.
Inert gas filling: Argon gas is filled between the glass layers. Argon is a colorless and odorless inert gas with a thermal conductivity much lower than air, which can more effectively prevent heat loss.
Increasing surface temperature: Due to the significant improvement in thermal insulation performance, even if the outdoor temperature is tens of degrees below zero, the surface temperature of the indoor glass can be maintained at a relatively high level. When it is higher than the dew point temperature of the indoor air, water vapor cannot condense, thus achieving excellent anti-condensation effects.

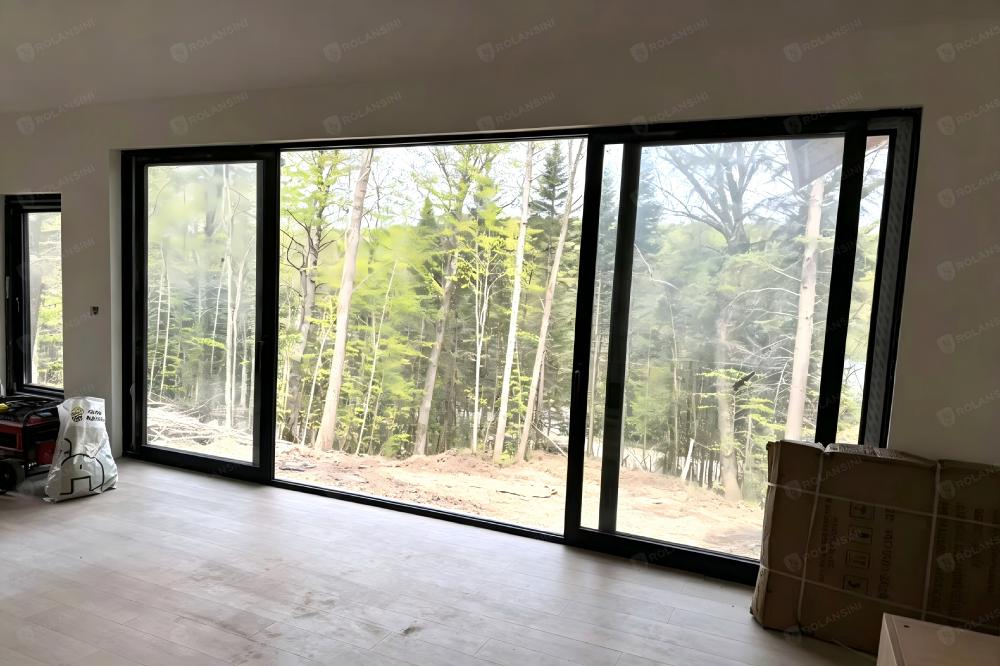

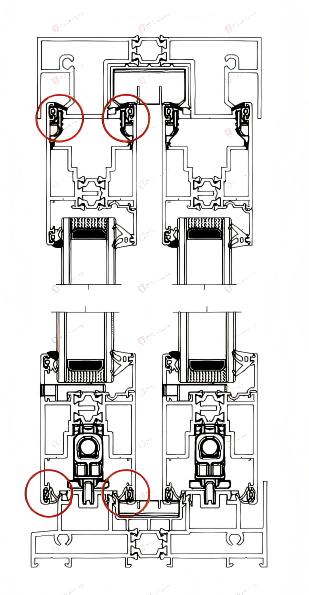

·Superior Sealing and Sound Insulation: Unlike sliding doors with weatherstripping that are prone to drafts and allowing insects to enter, our 125 series lift-up sliding door uses a sealing strip. When closed, the door automatically sinks and fits tightly against the frame. This design not only significantly improves water tightness and sound insulation but also effectively blocks cold air penetration, keeping your villa warm and comfortable even in snow and wind.
It's worth mentioning that the "sinking" mechanism of the lift-up sliding door is not only for sealing but also for protecting mechanical components. When stationary, the pulley system "rests," directly extending the lifespan of the hardware and reducing long-term maintenance costs.
·User-Friendly Ventilation Experience: The system supports a "minimum ventilation" mode and can be locked at any point, meeting users' needs for precise control of airflow under different weather conditions.
·Invisible Security: When the door is fully closed, the locking points are recessed deep within the frame, effectively preventing intruders from damaging the door from the bottom frame. Its anti-theft performance far surpasses that of ordinary sliding doors.
·Thermal Break Design for Worry-Free Insulation: Utilizing advanced thermal break technology, heat conduction is significantly reduced, ensuring that the doors and windows maintain excellent thermal insulation performance even under extreme outdoor temperatures, meeting the stringent standards for outdoor doors.
Due to outstanding performance, this series is widely used in our projects in the United States and Canada, as well as some coastal island nations in Central America.

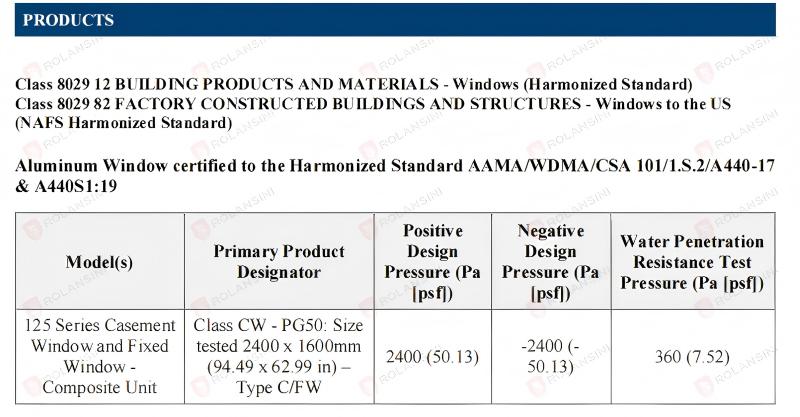

·Wind Pressure Resistance Rating CW-PG50 (DP: ±2400 Pa): This rating means the window can withstand wind pressure differences of up to 2400 Pascals, suitable for high-rise buildings or coastal areas with strong winds, ensuring no deformation or leakage under extreme weather conditions. This product can also achieve extra-large glass and hurricane resistance through internal steel strips and nailed closed glazing.
·Water Tightness 360Pa: Effectively prevents rainwater from seeping into the room through gaps during heavy rain or typhoons, ensuring safety and dryness.
·Air Tightness "Low Leakage": Utilizing multiple sealing strips and precision assembly processes, it significantly reduces air permeability, not only saving energy and reducing consumption, but also effectively isolating external noise and dust.
·Anti-theft security level 10: Reaching one of the highest security standards in the industry, equipped with the German SIEGENIA multi-point locking system and anti-pry structure design, effectively resisting illegal intrusion, suitable for high-end residences or places with high security requirements.

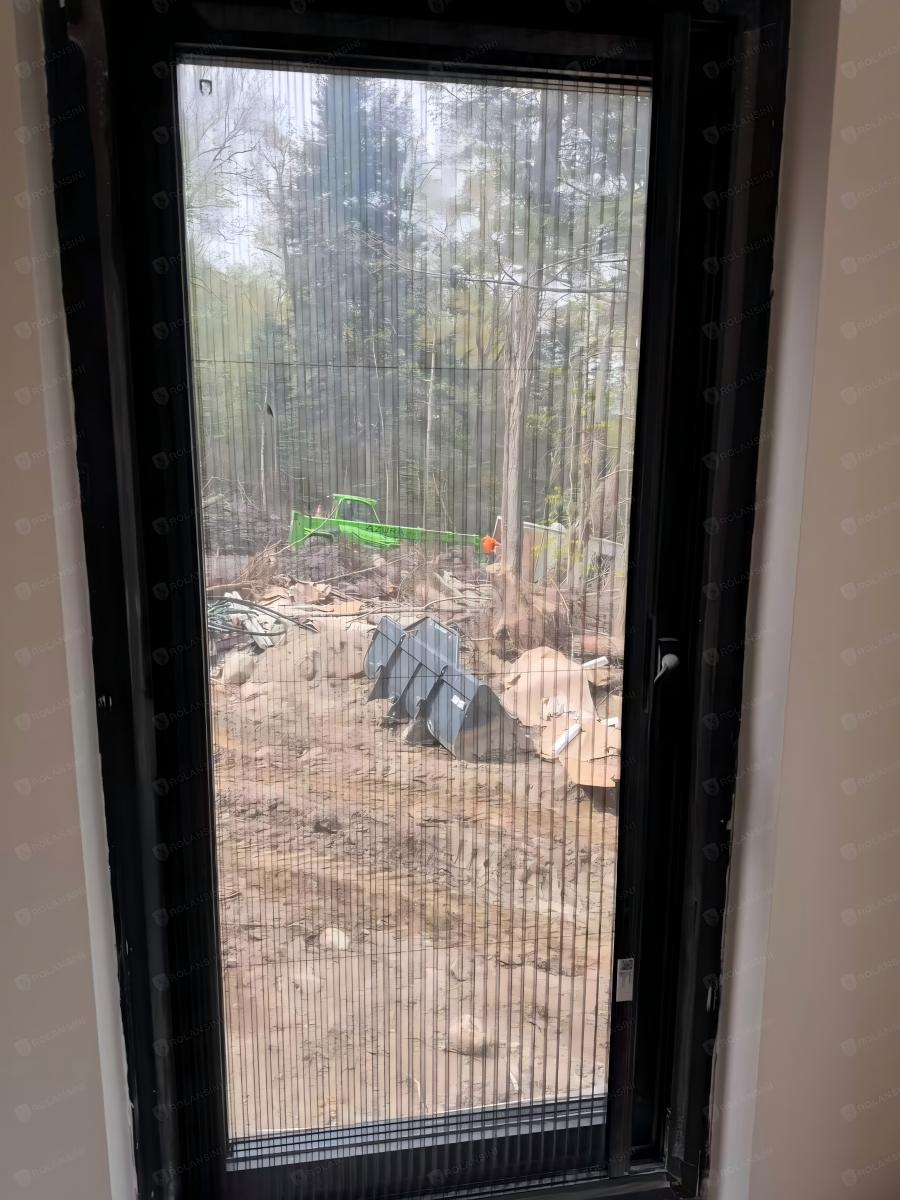

(Using the effect of hidden folded yarn)
In the high-end custom doors and windows industry, trust is often more valuable than technical specifications. For this Canadian villa project, the client's initial on-site inspection and final approval of the solution not only validated the strength of our products but also marked a solid step forward in our cooperation. With the installation and acceptance of both projects completed, the client has expressed interest in collaborating on new projects.
