Semi-visible Frame Curtain Wall
Rolansini
A Semi-visible Frame Curtain Wall is a hybrid architectural façade system. It bridges the gap between traditional exposed-frame and hidden frame systems.

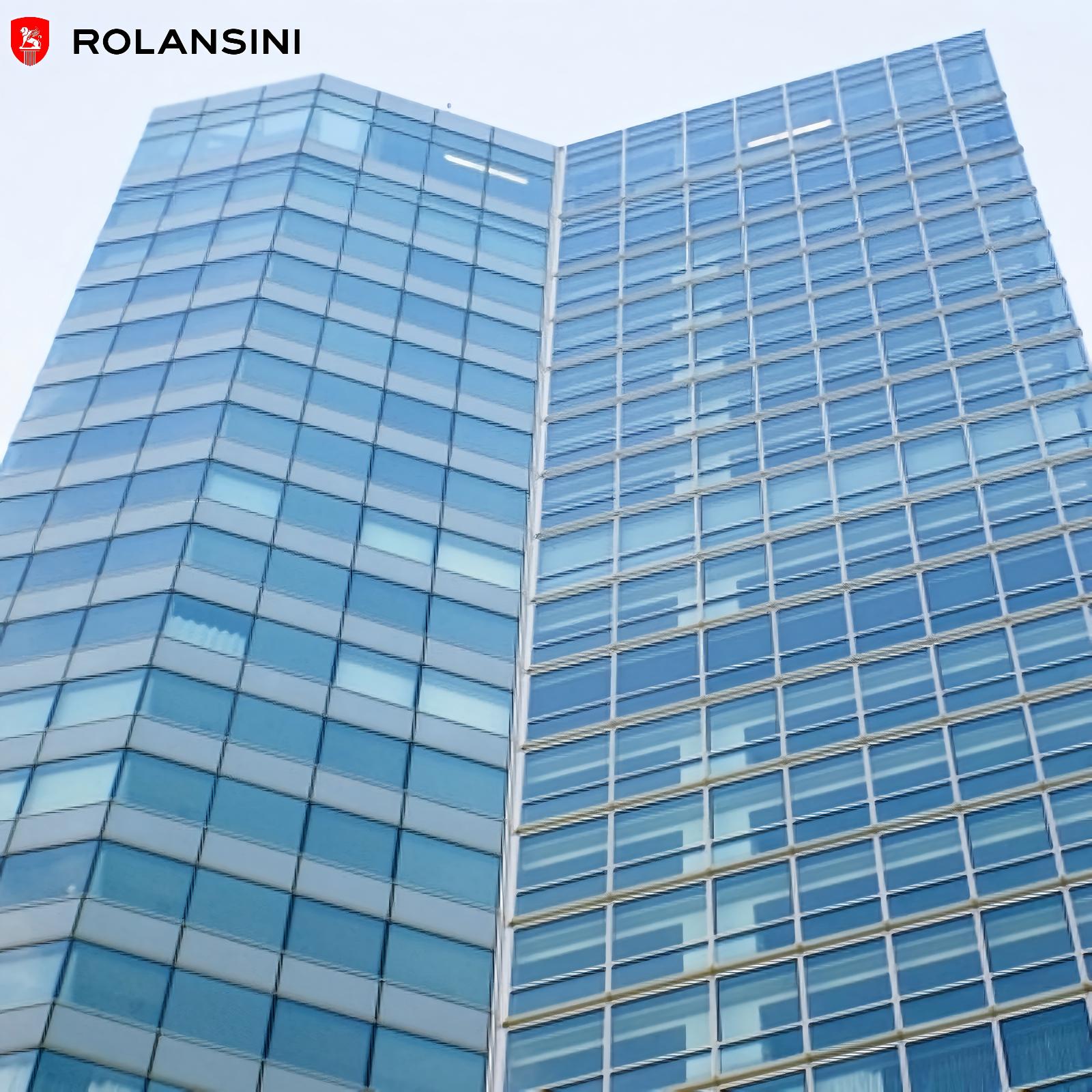

Horizontally Visible, Vertically Hidden: Metal pressure caps emphasize horizontal bands across the façade, while vertical glass joints rely on structural sealant for a continuous glass strip.

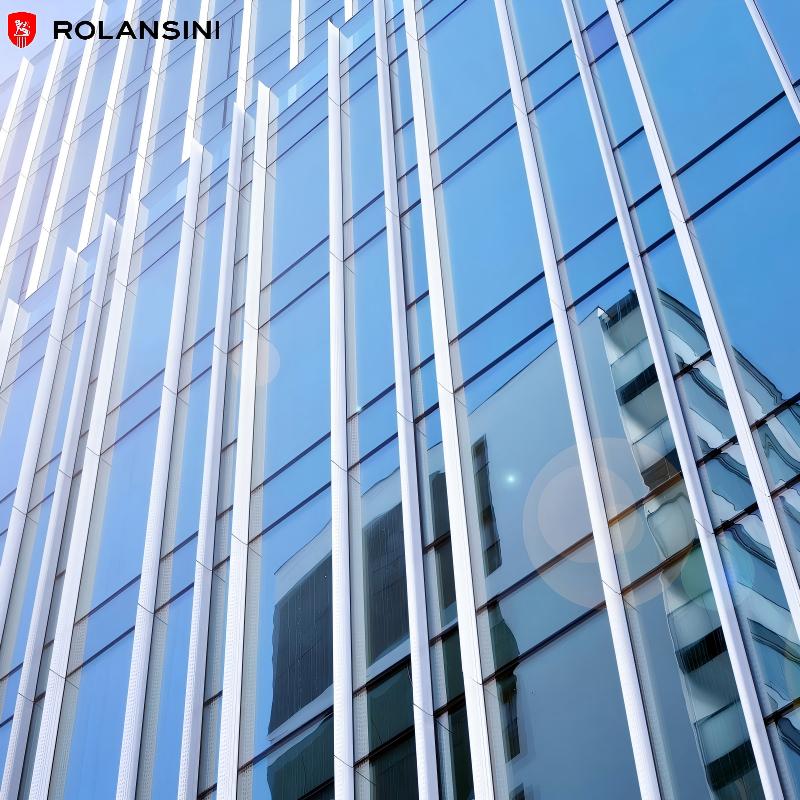

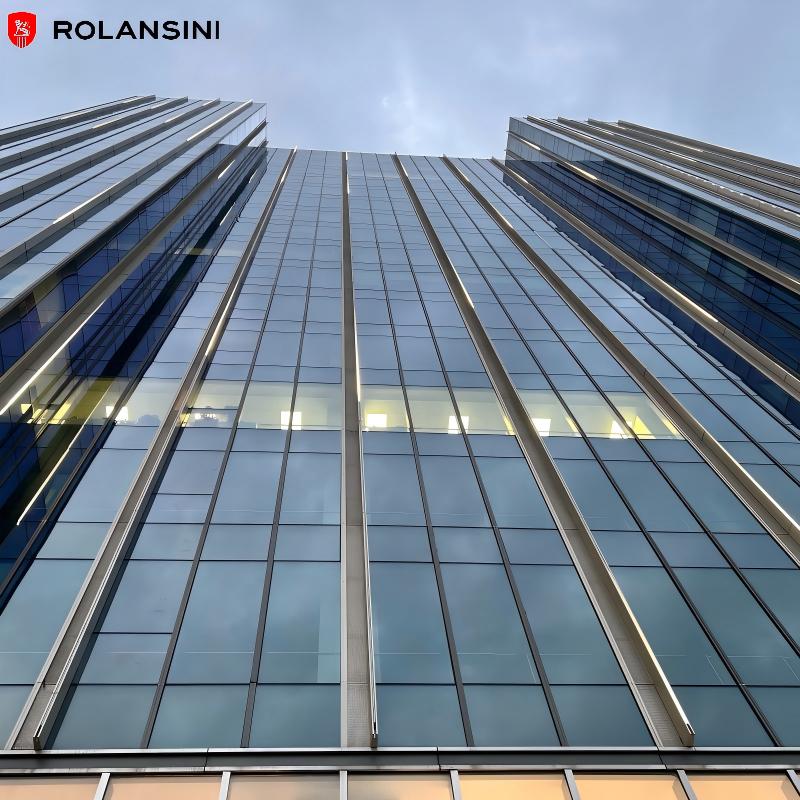

Vertically Visible, Horizontally Hidden: Vertical mullions are accentuated on the exterior, while horizontal joints use structural silicone for a sleek, vertical rhythm.

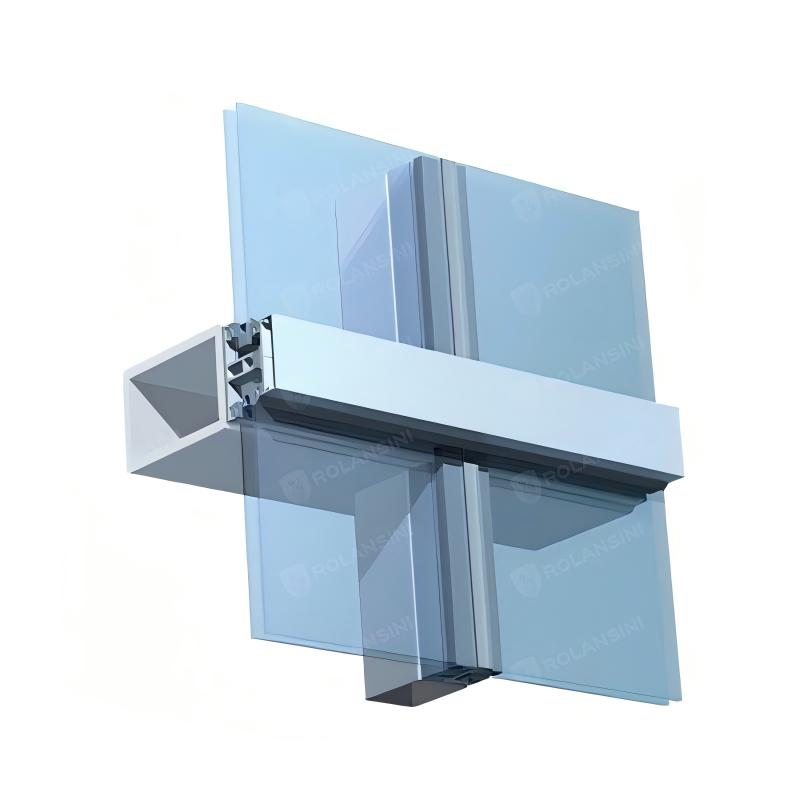

①Semi-concealed frame curtain wall (vertical concealed, horizontal exposed):
·Vertical: Glass bonded with structural adhesive, no exposed frame (concealed frame)
·Horizontal: Exposed aluminum alloy horizontal frame (exposed frame)
·Features: Clean and crisp vertical lines, regular horizontal lines; most commonly used, cost-effective.

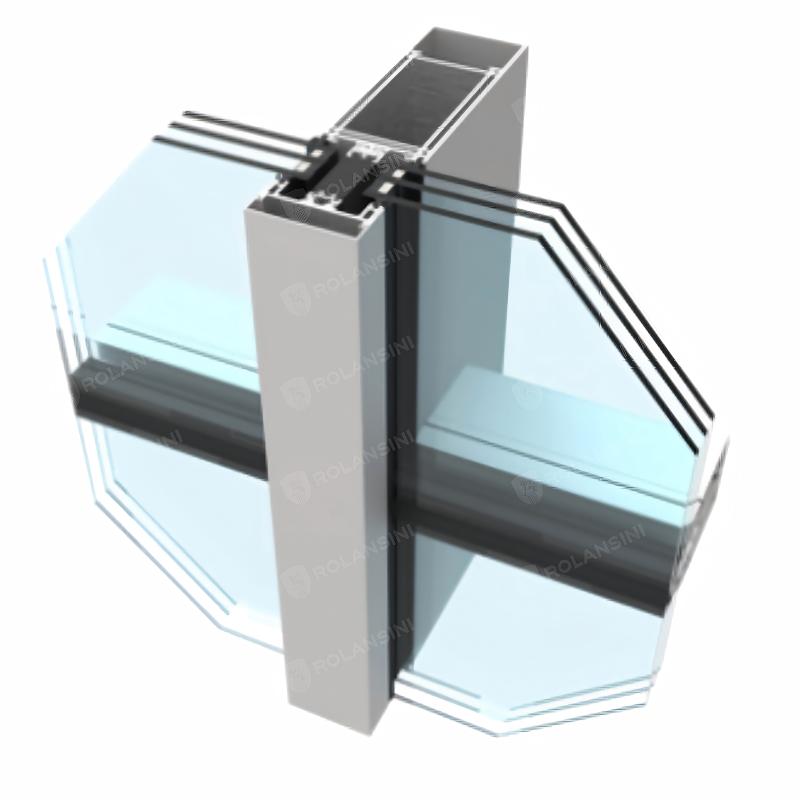

②Semi-concealed frame curtain wall (horizontal concealed, vertical exposed):
·Horizontal: Glass bonded with structural adhesive, no exposed frame
·Vertical: Exposed vertical frame
·Features: Simpler horizontal lines, more prominent vertical lines, more upright visual appearance.
| Product Name | Semi-visible Frame Curtain Wall |
| Material | Aluminum Alloy+Tempered Glass |
| Design Style | Semi-visible |
| Frame Material | High quality 6063-T6 aluminium alloy/Thermal break aluminum alloy |
| Aluminum profile | 50*80 series,100*65 series，110*65 series，120*65 series，150*65 series，160*65 series，200*65 series，180*80 series，140*40 series，150*65 series... |
| Glass Types | Double glass,Frosted glass,Reflective glass,laminated glass,Low-E glass etc. |
| Glass Thickness | 5mm,6mm,8mm,10mm,12mm etc. clear, tinted, frosted, reflective, low-e, fireproof，bulletproof etc. |
| Color Option | Customizable |
| Hardware | KINGLONG,SIEGENIA... |
| Feature | Heat Insulation/Sound insulation/Waterproof etc. |
| Application | Office buildings, business centers, shopping malls, shopping centers, hotels, high-end apartments, museums, art galleries, theaters, R&D buildings, corporate showrooms, etc. |
1. Enhanced Safety and Reliability: The semi-concealed frame curtain wall features two opposite edges with rigid aluminum alloy mechanical clamps for physical support, significantly improving wind pressure resistance and fall safety.
2. Better Cost-Effectiveness and Economy: Since only two edges require expensive high-performance structural silicone sealant, the amount of sealant used is reduced by nearly 50% compared to the fully concealed frame, significantly lowering material costs and on-site sealant application and maintenance costs.
3. Superior Water and Air Tightness: On the exposed frame axis, mature EPDM rubber sealing strips are generally used with mechanical clamping, greatly improving the overall performance of the curtain wall in preventing rainwater leakage and air infiltration.
4. Easier Construction and Maintenance: When glass breaks and needs replacement, the pair of opposite edges with mechanical clamps are easier to disassemble and position, greatly reducing the difficulty of subsequent curtain wall maintenance and glass replacement.
