Visible Frame Curtain Wall
Rolansini

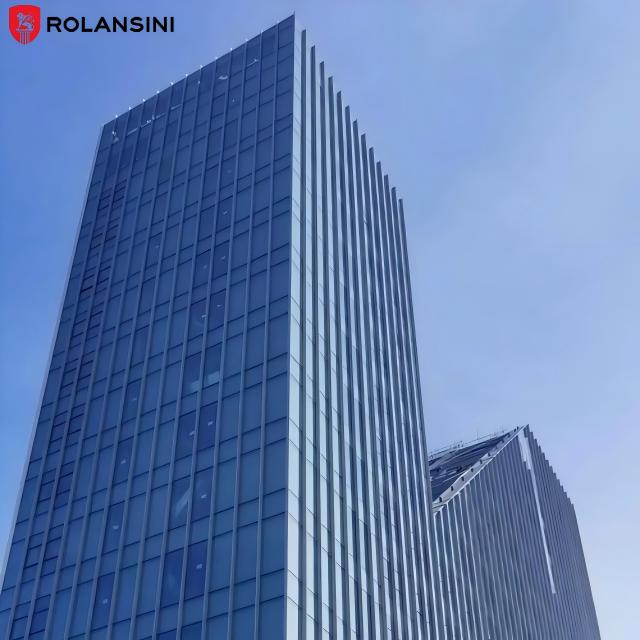

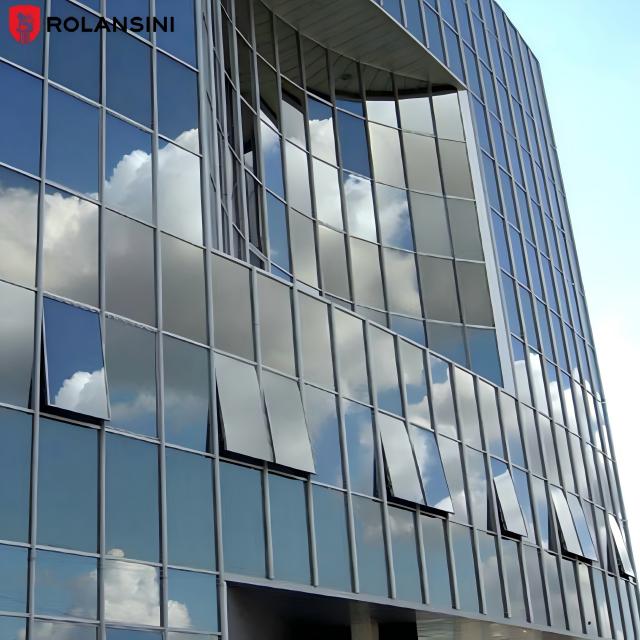

In modern office building architecture, exposed-frame glass curtain wall is a classic and widely used form of exterior wall decoration.The aluminum alloy frame of an exposed-frame glass curtain wall not only supports the glass behind it but is also exposed on the outer surface of the glass. From the outside, you can clearly see the crisscrossing metal lines wrapping around the glass panels, which is why it is called "exposed-frame."

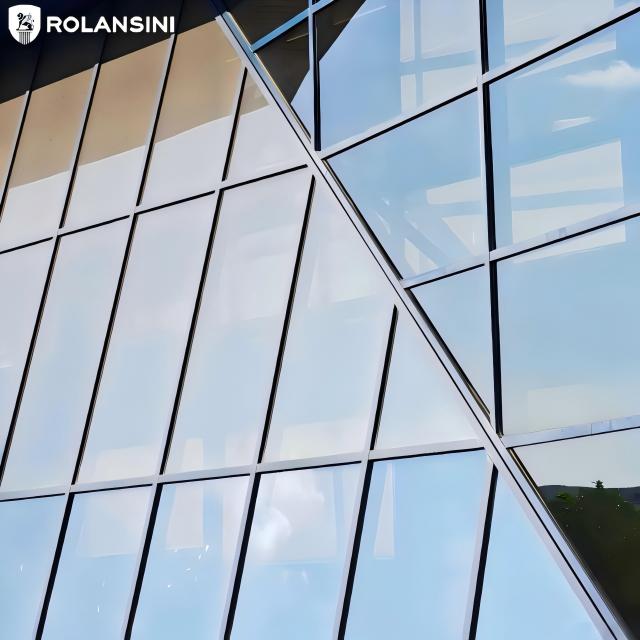

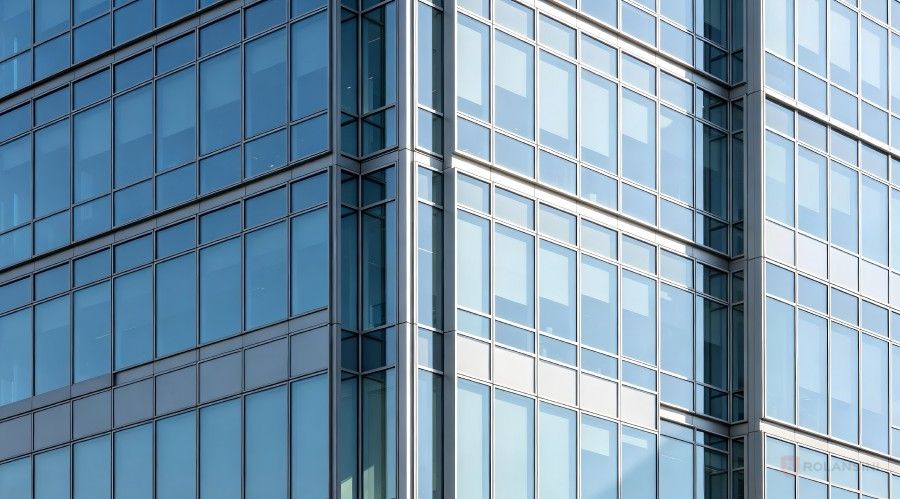

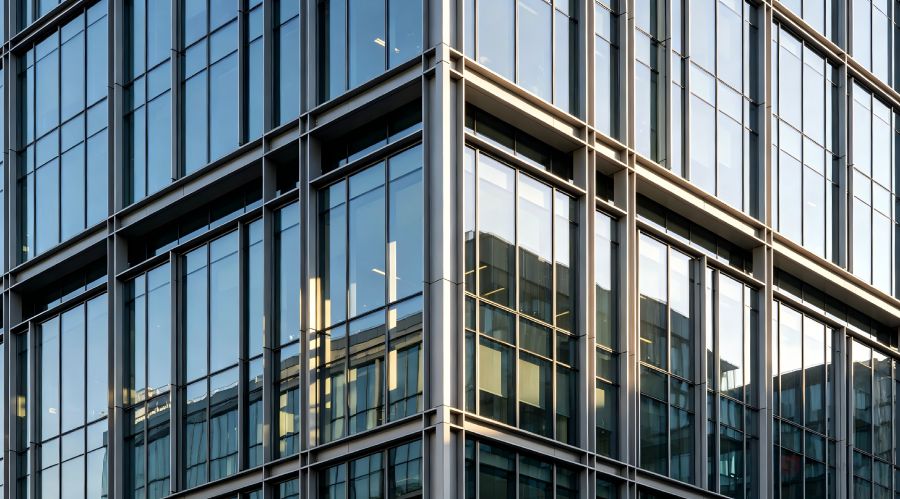

1、Exposed Frame: The exposed aluminum alloy profiles can be made in various shapes (such as square sections, streamlined shapes, etc.) and colors. These straight, horizontal and vertical metal lines intertwine with the reflections of the glass, giving the office building a highly orderly, modern, and robust facade visual effect.

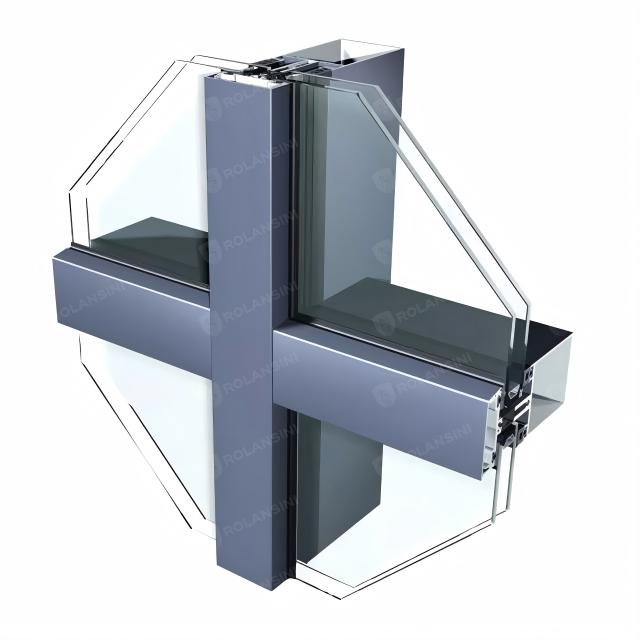

2、Traditional and Mature Structure: It is the most traditional form of glass curtain wall. The glass frame rests on a skeleton composed of aluminum alloy beams and columns, and is fixed around the perimeter by strips and panels.

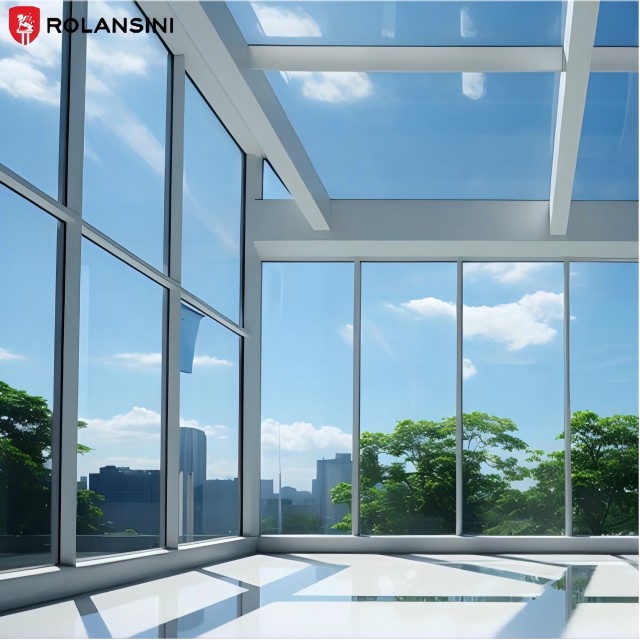

3、Frame Visible Both Inside and Outside: Compared to frameless curtain walls that appear as a single sheet of glass from the outside, exposed frame curtain walls allow the metal skeleton to be seen from both the exterior of the building and the interior of the office.
| Product Name | Visible Frame Curtain Wall Window |
| Product Model | Visible Frame Curtain Wall |
| Material | Aluminum Alloy+Tempered Glass |
| Design Style | Visiable |
| Frame Material | High quality 6063-T6 aluminium alloy/Thermal break aluminum alloy |
| Aluminum profile | 50*80 series,100*65 series，110*65 series，120*65 series，150*65 series，160*65 series，200*65 series，180*80 series，140*40 series，150*65 series... |
| Glass Types | Double glass,Frosted glass,Reflective glass,laminated glass,Low-E glass etc. |
| Glass Thickness | 5mm,6mm,8mm,10mm,12mm etc. clear, tinted, frosted, reflective, low-e, fireproof，bulletproof etc. |
| Color Option | Customizable |
| Hardware | KINGLONG,SIEGENIA... |
| Feature | Heat Insulation/Sound insulation/Waterproof etc. |
| Application | Office buildings, business centers, shopping malls, shopping centers, hotels, high-end apartments, museums, art galleries, theaters, R&D buildings, corporate showrooms, etc. |
1. Extremely Safe and Reliable Structure: The exposed frame curtain wall is mechanically fixed, with the glass securely clamped to the aluminum alloy frame by metal strips around its perimeter. Even in the event of an accident or extreme windstorm, the glass will not easily detach in whole, resulting in a very high safety factor.
2. Simple Construction and High Fault Tolerance: Flexible on-site installation: Most of its components can be fabricated in the factory and then transported to the site for assembly.
3.Low Environmental Requirements: The exposed frame curtain wall relies primarily on mechanical assembly, making it less affected by weather conditions and effectively shortening the overall construction period of the office building.
4. Excellent Waterproofing and Sealing Performance: The glass sealing strips and sealing processes of the exposed frame curtain wall are completed in relatively easy-to-create physical grooves. Combined with a mature drainage channel design, condensation inside the building or rainwater seeping in from the outside can be smoothly discharged through the guide channels inside the profiles, resulting in excellent leak-proof performance.
5. Economical Cost and Convenient Maintenance
High Cost-Effectiveness: Because it doesn't require large amounts of expensive structural silicone sealant and has relatively low barriers to material testing, its overall material and construction costs are generally lower than those of concealed or semi-concealed frame curtain walls.
Easy Replacement: During office building operation, if any glass panel accidentally cracks, maintenance personnel can simply remove the corresponding metal panel and strip from the outside for direct replacement, resulting in extremely low subsequent maintenance costs.
