68 series
Rolansini

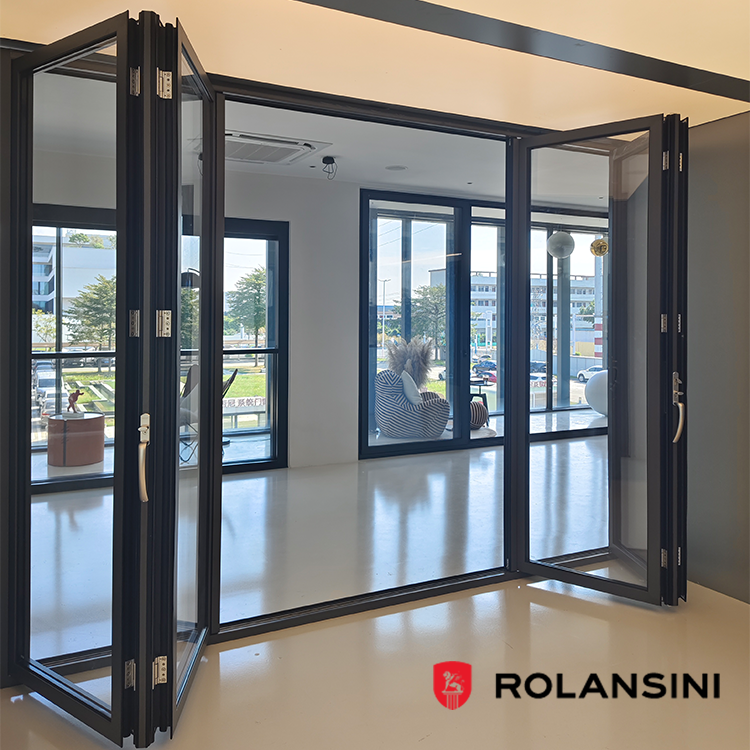

The Rolansini 68 series aluminum bifold door folds glazed panels back to connect or divide spaces. KERSSENBERG hardware, inward or outward folding and thermal break structure choices support residential and commercial layouts.

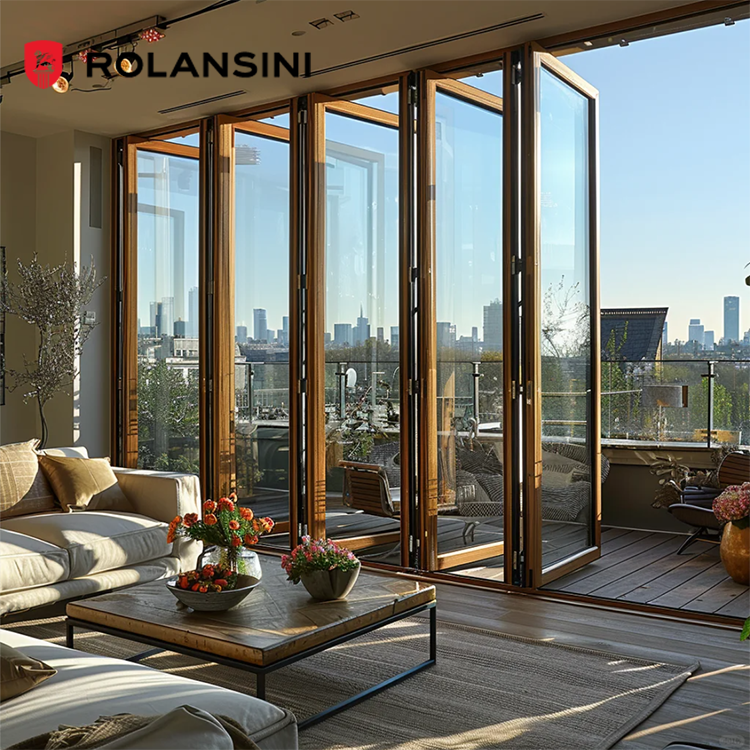

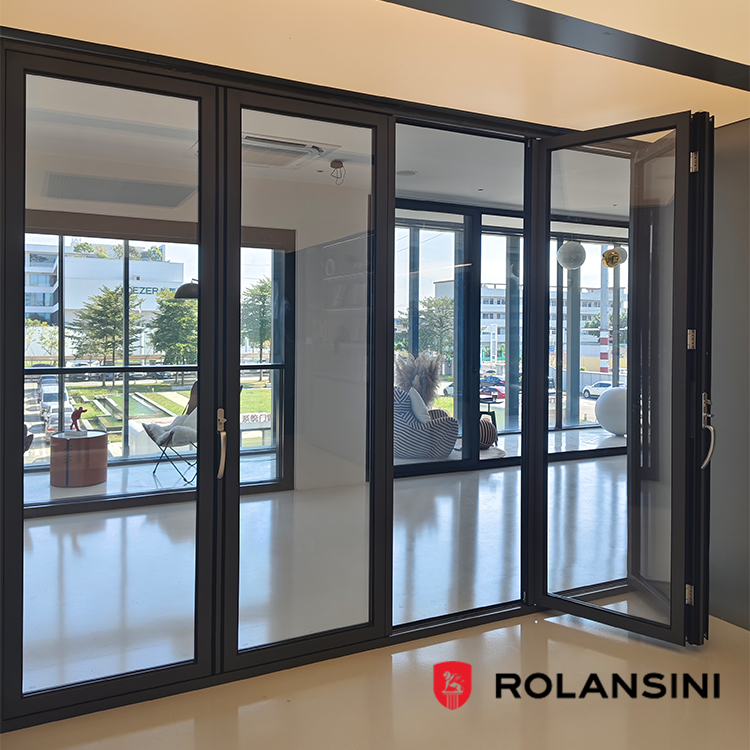

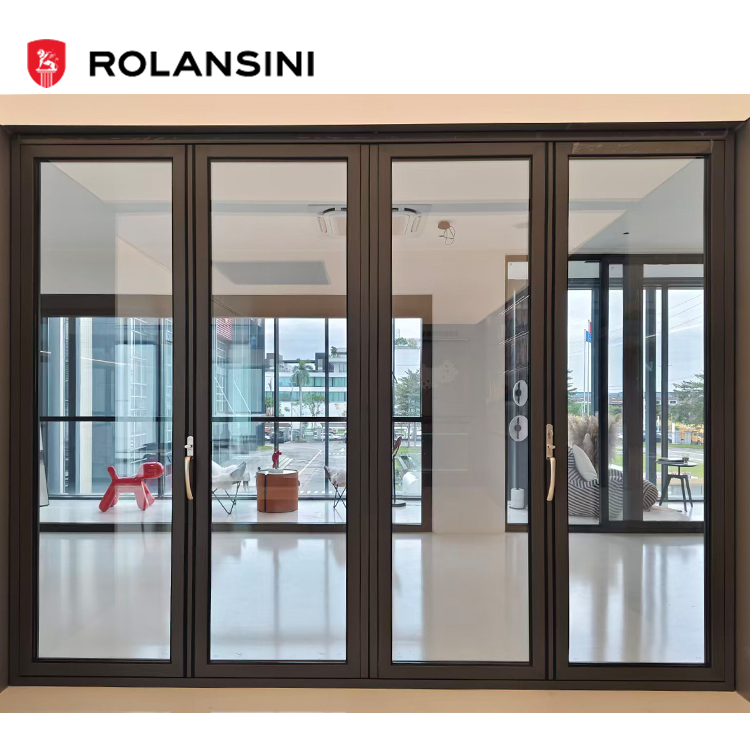

The Naples door uses a folding arrangement to change how adjoining spaces connect. Panels can be folded back when a wider passage is needed, then closed to divide the area. Kitchens, balconies and patios are supported applications, alongside restaurants, cafes, offices and meeting rooms.
This makes the product relevant to projects where the opening needs to serve different uses throughout the day. Folding direction and panel arrangement should be considered with the furniture plan and the space available beside the opening.

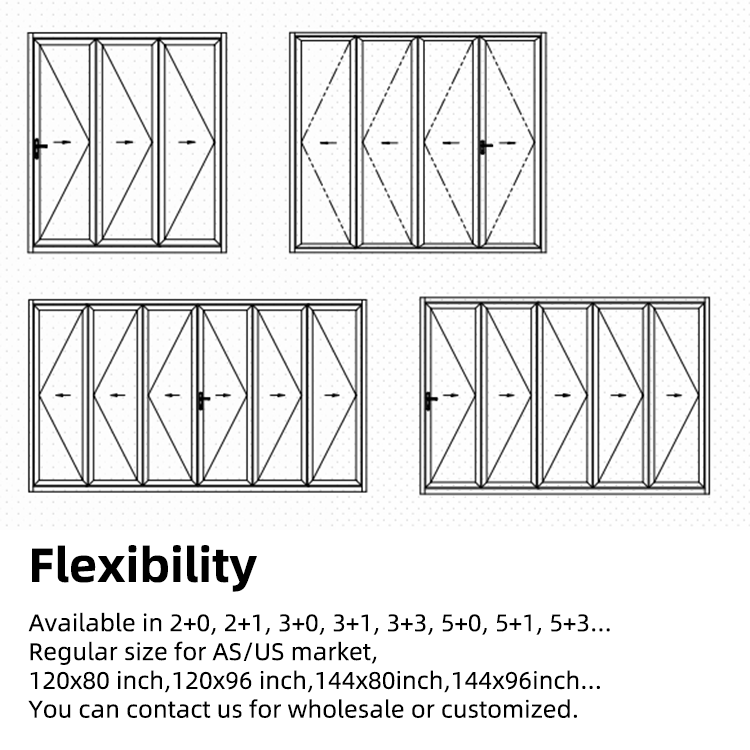

Fold-in, fold-out, and hinged-and-folding arrangements provide different operating layouts. Flexible multi-panel configurations and customizable grid patterns allow the door composition to follow the architectural design.
Both thermal break and non-thermal break structures are available. These are separate choices within the family. The structure should be selected alongside the glazing and project requirements, rather than treating every 68 series unit as the same thermal configuration.

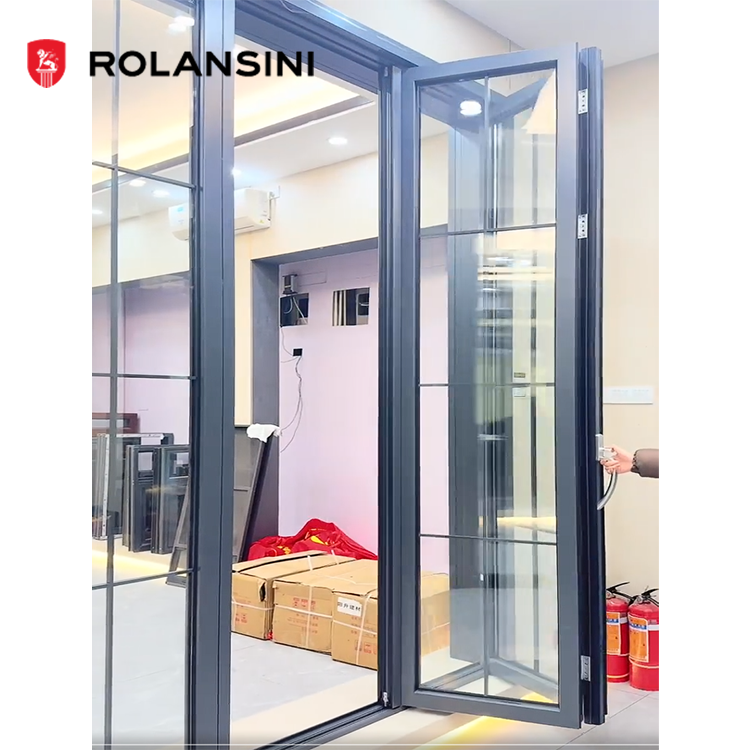

KERSSENBERG hardware is paired with the aluminum alloy frame. Concealed hinges keep the hinge detail less prominent in the closed elevation. A reinforced stainless steel track system is part of the described construction.
The track alternatives include a special waterproof track and a low track, with top and bottom tracks specified. Powder coating and electrophoretic oxidation are finish treatments. Metal Gray and Espresso are among the named color choices. Those details should be coordinated as one door package rather than selected independently after fabrication.
Standards and certification entries require current documentation for the selected assembly. They do not establish project approval.
Specification | Details |
Profile Reinforcement | 1.6 - 2.0mm |
Finish Treatment | Powder Coating, Electrophoretic oxidation |
Frame Depth | 77.3mm |
Sash Depth | 68mm |
Sash Width | 56.5mm |
Max. Leaf Width | 300 - 800mm |
Max. Leaf Height | 800 - 3000mm |
Glass Standard | (5mm + 20Ar + 5mm)Double Tempered Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 30mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Double Pane, Clear, Ultra Clear, Low - e, Flutted, Frosted, Obscure...Glass |
Hardware | German KERSSENBERG |
Grills | External Aluminum Bars, Built - in Decorative Bars |
Track Types | Special Waterproof Track (53mm), Low Track (30.5mm), Top and bottom tracks |
Folding Types | Fold In, Fold Out, Hinged and Folding |
Application | Kitchen, Balcony, Patio, Restaurant, Cafe, Office, Meeting Room |
Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA |
Warranty | 10 Years - Terms and conditions apply |
Structure Type | Non - Thermal Break / Thermal Break |
Double tempered clear glass with argon filling is the glass standard. Other options include Ultra Clear, Low-E, frosted and obscure glass. External aluminum bars and built-in decorative bars provide two approaches to the grid appearance.
Acoustic requirements should be tied to a tested glass-and-frame assembly rather than the word soundproof. For projects comparing opening actions, the 100/150 series stacker sliding door remains a sliding alternative. Additional folding products are grouped in the bifold door range.
Five finish choices include Metal Gray and Espresso. The alternative glass notation is 5+20A+5. The hardware load entry is over 400kg; its applicable panel arrangement and load basis require confirmation before sizing.

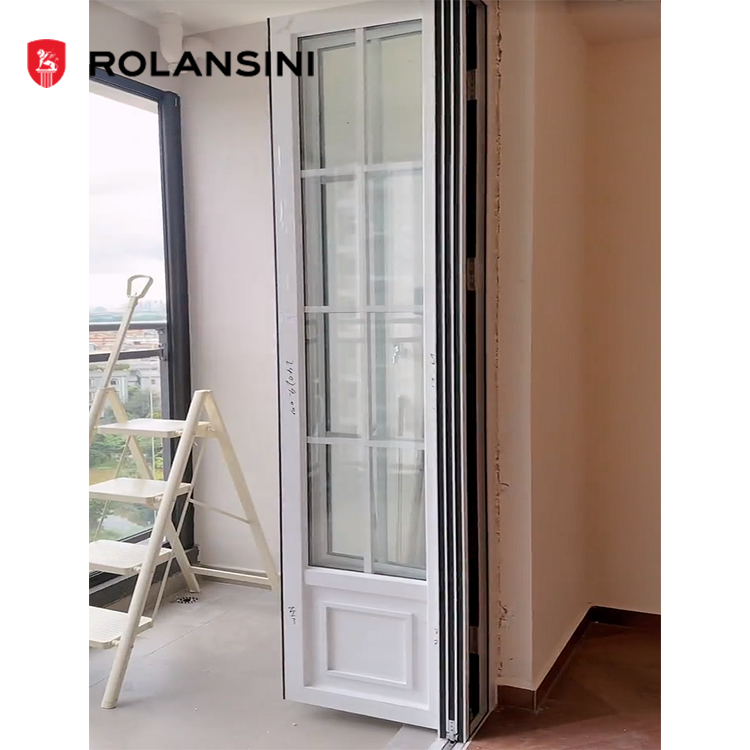

The 68 series uses folding panels. Its product identity is a bifold door, even when a project is comparing it with sliding systems.

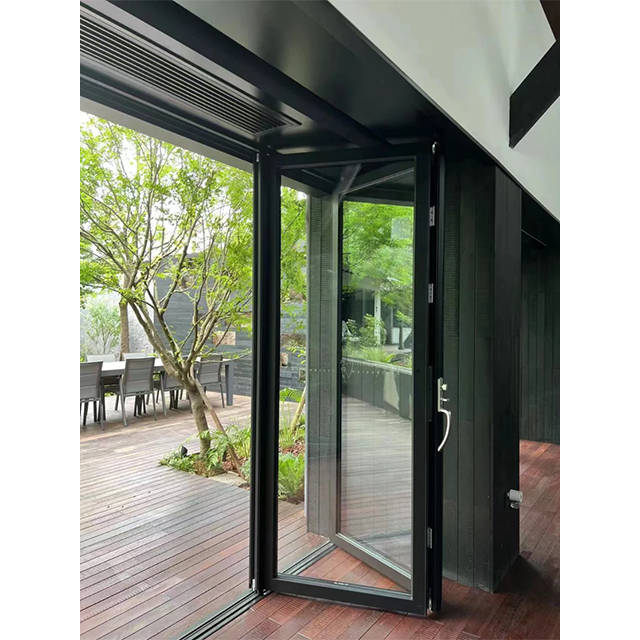

Fold-in and fold-out types are available. The opening design must identify the intended direction and panel arrangement.
Both non-thermal break and thermal break structures are offered. The order needs to identify which structure is required.

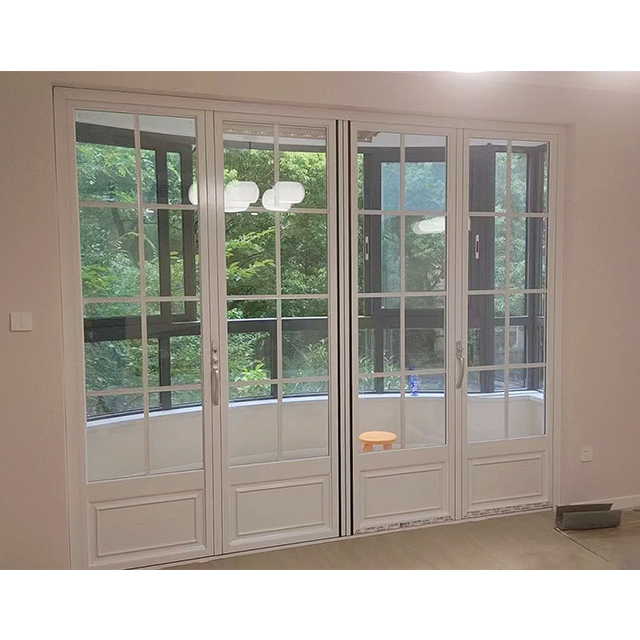

Customizable grid patterns are available, using external aluminum bars or built-in decorative bars as specified for the door.
A glass description alone does not establish a sound rating. The required acoustic result needs evidence for the complete selected assembly.
Panel sizing should use the confirmed hardware schedule and configuration-specific load limit. A general load statement should not be applied to every folding arrangement.
