108#
Rolansini

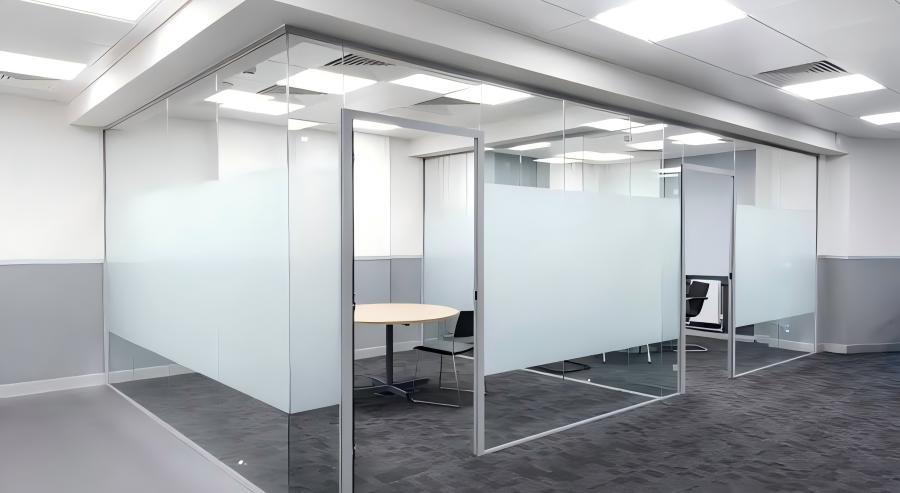

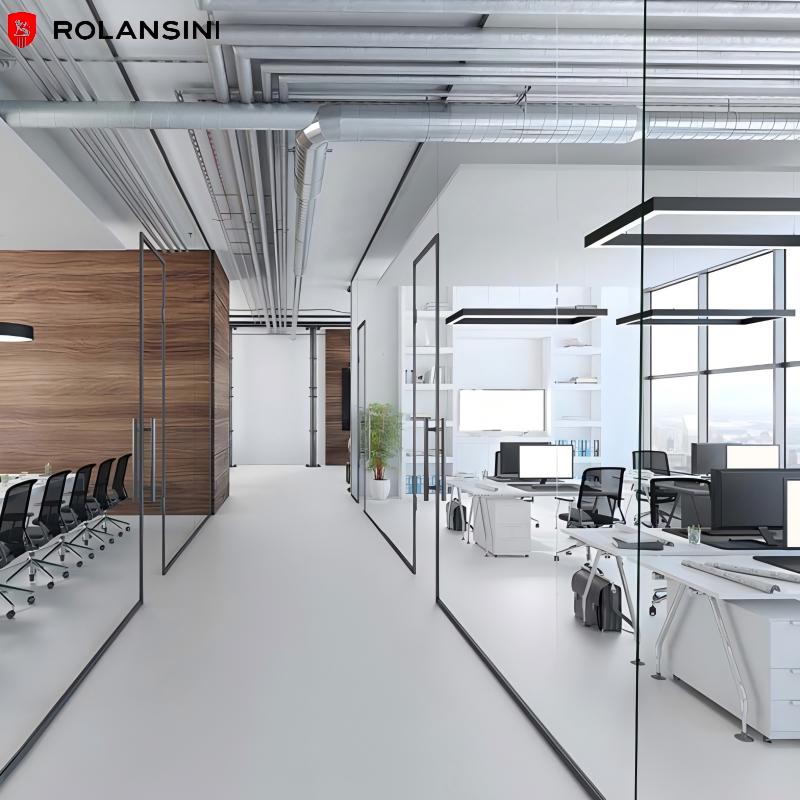

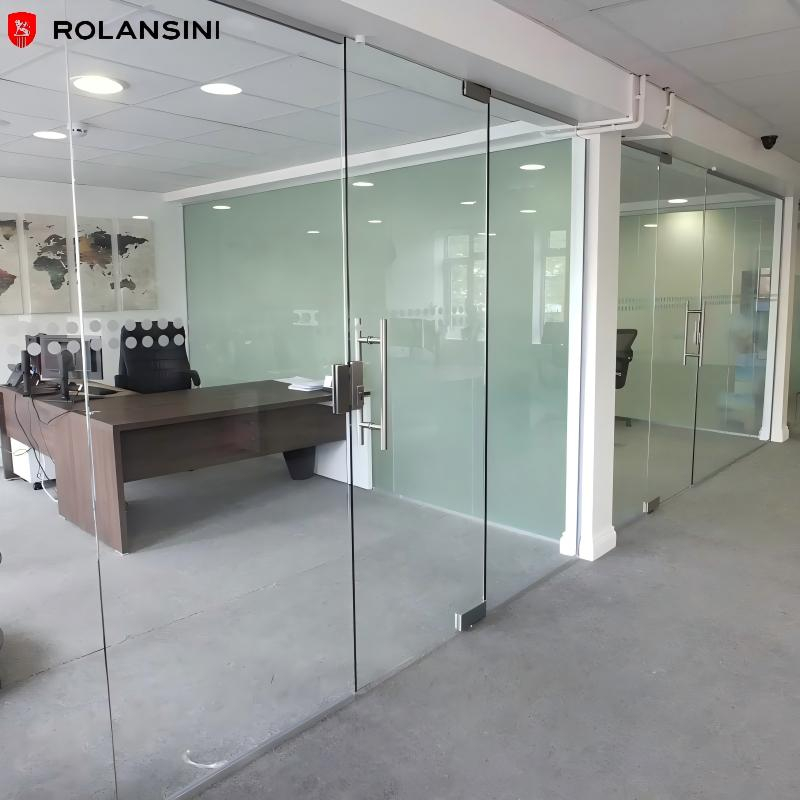

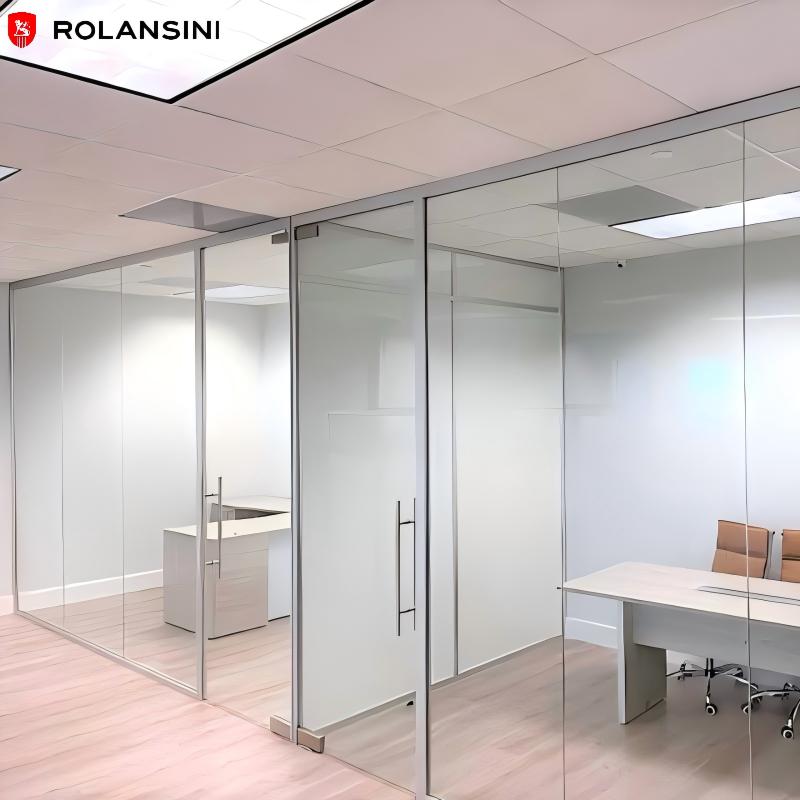

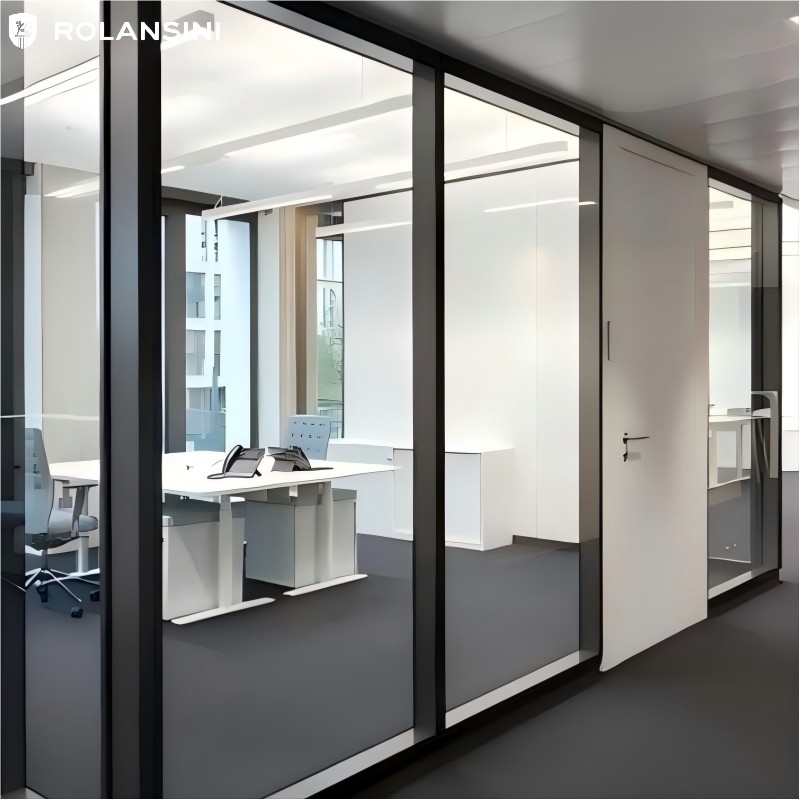

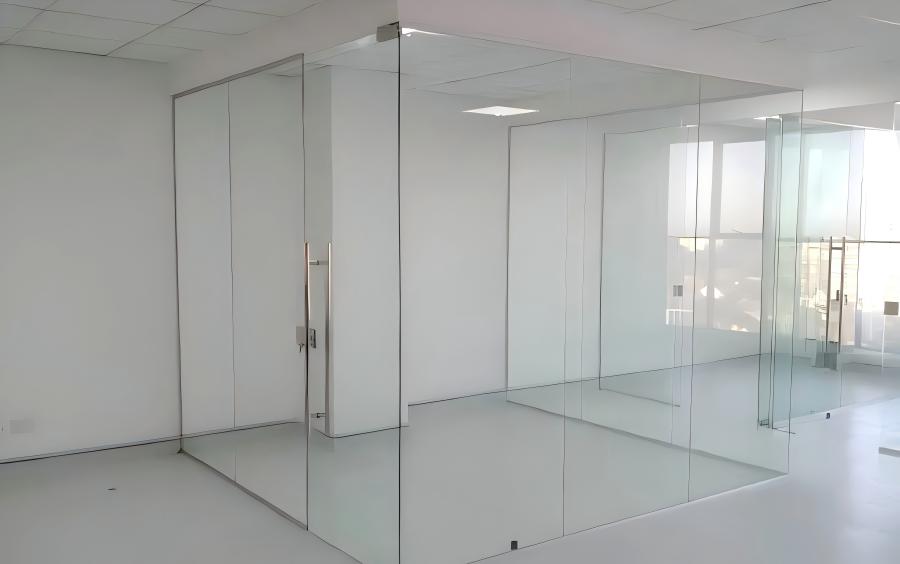

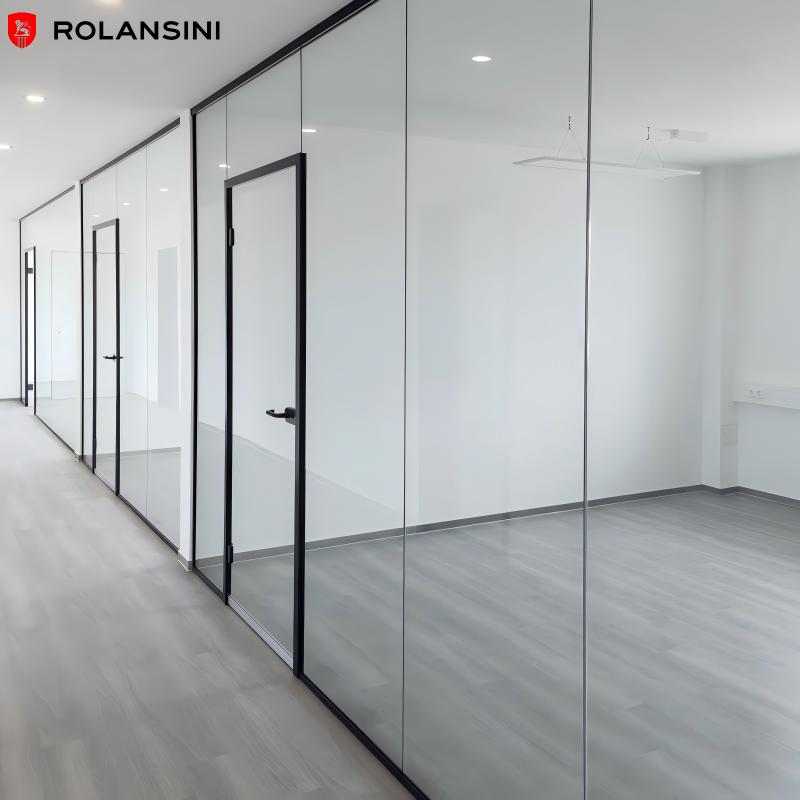

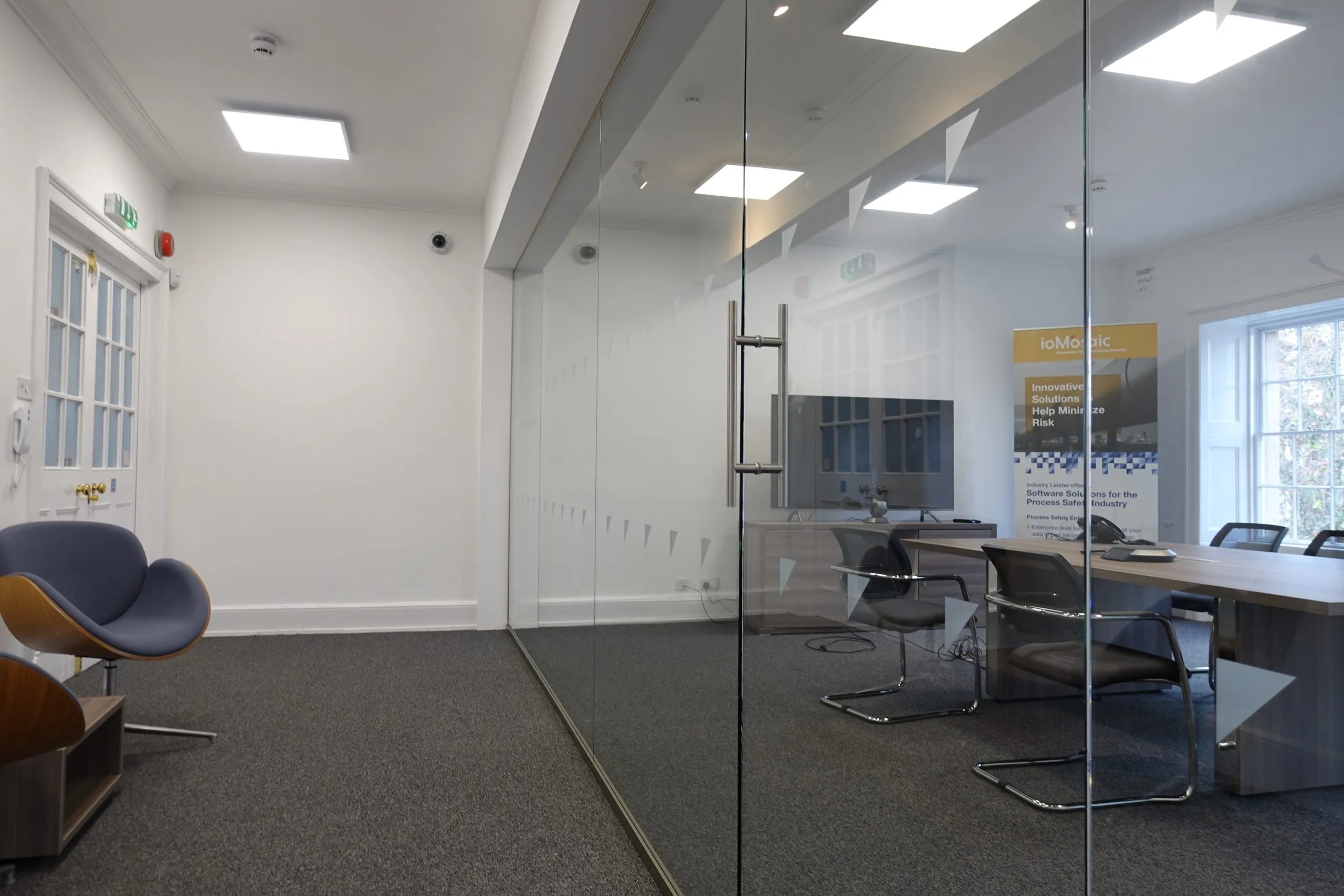

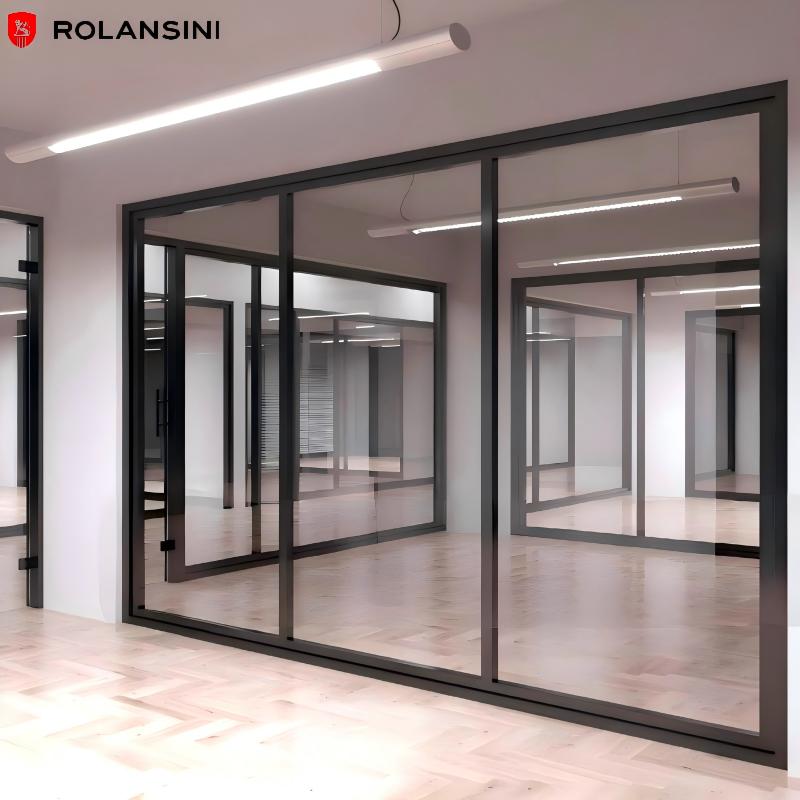

Glass partitions are often installed in office and conference room settings, making full use of transparent glass and aluminum alloy frames, with simple vertical columns to expand the visual sense of space.
| Product Name | 108# Hidden Frame Glass Partiton Series |
| Product Model | 108# Double Glass Hidden Partition |
| Material | Aluminum+Steel+Glass |
| Glass Type | Automotive-Grade Tempered Glass |
| Glass Thickness | 5-12mm |
| Solid Wall Thickness | 60mm/90mm/120mm |
| Glass-glass Connection | 3mm tape, Acrylic glass adhesive seam strips |
| Door Type | Swing door,wooden door,stainless steel door |
| Color | white,grey,gold,black,coffee,brown... |
| Size | Customized according to requirements |
| Function | Sound insulation, fire resistance, simple and quick installation |
| Application | Hospital, Office Building, School, Home Office, Hotel, Bank, Hall... |
·Profile Structure: The main frame is made of high-strength aluminum alloy, with anodized, powder-coated, or fluorocarbon-coated surfaces.
·Panel Configuration: Supports double-layer tempered glass, and can also be paired with frosted glass, laminated glass, or insulated blinds.
·Frameless Principle: The glass panels are fixed to the internal profile using edge strips or structural adhesive, making the frame almost invisible from the light-receiving side, achieving a flat visual effect of "only the glass is visible, not the frame."
·Sound Insulation Performance: Due to its 108mm cavity depth and double-layer glass structure, the airborne sound insulation generally reaches 42dB - 48dB.
·Open and Spacious: Eliminates the heaviness of traditional large frames, significantly improving the lighting and spatial extension of offices and meeting rooms.
·Flexible and Concealing: The ample internal cavity width allows for easy insertion of manual/electric blinds, balancing transparency and privacy needs.
·Modular Installation: Utilizes factory prefabrication and on-site assembly construction, eliminating paint pollution and offering high disassembly and reuse rates.
