83#
Rolansini

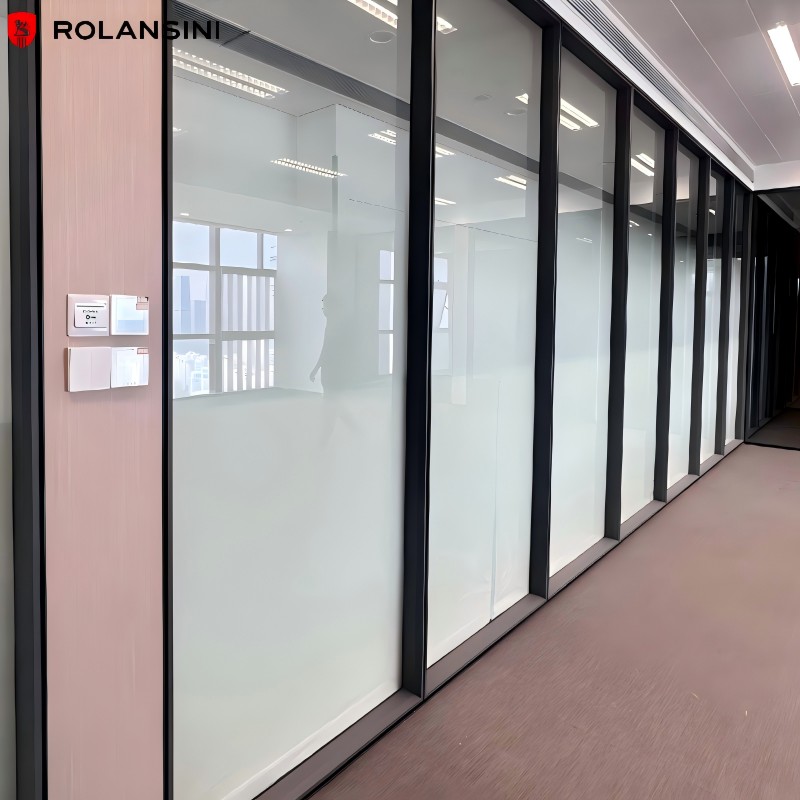

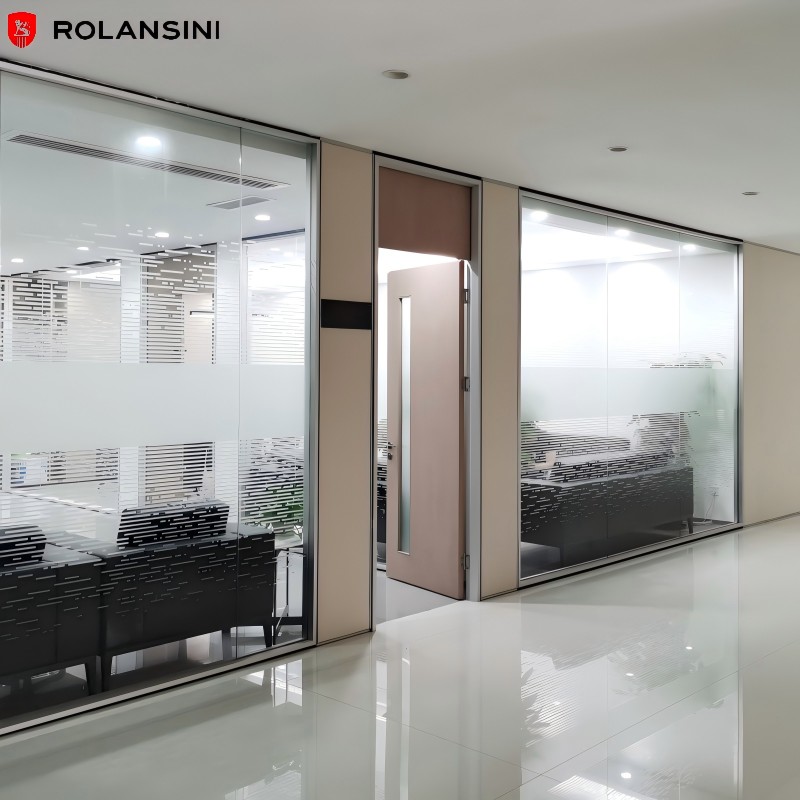

83 series glass partitions feature an all-aluminum alloy frame and double-layered tempered glass as the main body.They employ a modular design, allowing for partial disassembly and assembly, and boast a material reuse rate of 80%-90%. Customizable glass types (such as frosted or fire-resistant glass), door materials (glass or wooden), and frame colors are available. They are commonly used in commercial spaces such as office buildings, conference rooms, and exhibition halls.
Wall Structure: All-aluminum alloy frame, wall thickness 83mm, typically using 5+5mm double-layer tempered glass, with optional 25mm wide Venetian blinds in between.
Profile Specifications: Partition profile wall thickness approximately 1.2mm-1.4mm, door frame profile thickened to 2.0mm-2.2mm to ensure stability.
Height and Spacing: Height can reach 3000mm without horizontal bars; single-span width is recommended to be within 1200mm to ensure structural stability.
Connection Methods: Supports L-shaped, T-shaped, and cross connections, achieving ≥90° universal connections for flexible adaptation to different spatial layouts.
Surface Treatment: Offers various options including silver anodizing, powder coating, electrophoresis, and wood grain transfer; colors can be customized.
| Product Name | All Aluminum Glass Partition Series |
| Product Model | 83# |
| Material | Aluminum+Glass |
| Glass | Automotive-Grade Tempered Glass |
| Optional Glass | Single glass/double glass |
| Glass Thickness | 5-12mm |
| Solid Wall Thickness | 60mm/90mm/120mm |
| Glass-glass Connection | 3mm tape, Acrylic glass adhesive seam strips |
| Door Type | Swing door,wooden door,stainless steel door |
| Color | white,grey,gold,black,coffee,brown... |
| Size | Customized according to requirements |
| Function | Sound insulation, fire resistance, simple and quick installation |
| Application | Hospital, Office Building, School, Home Office, Hotel, Bank, Hall... |

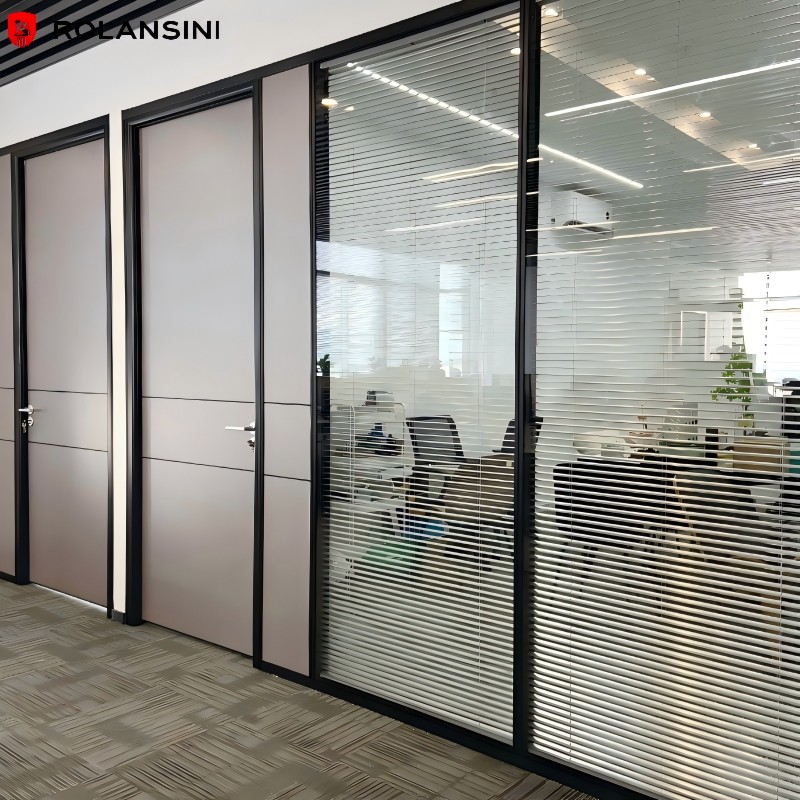

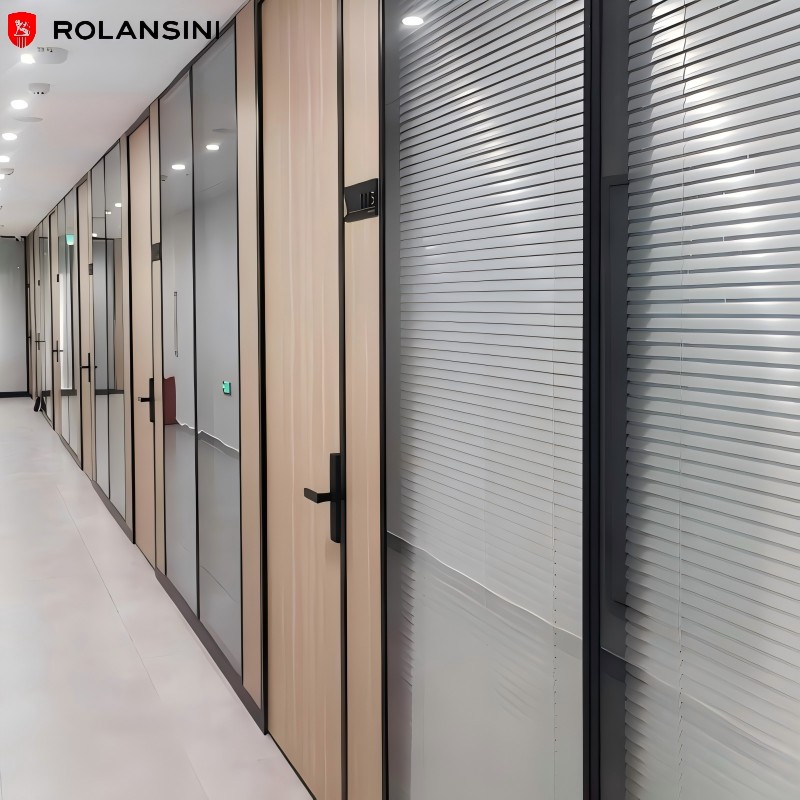

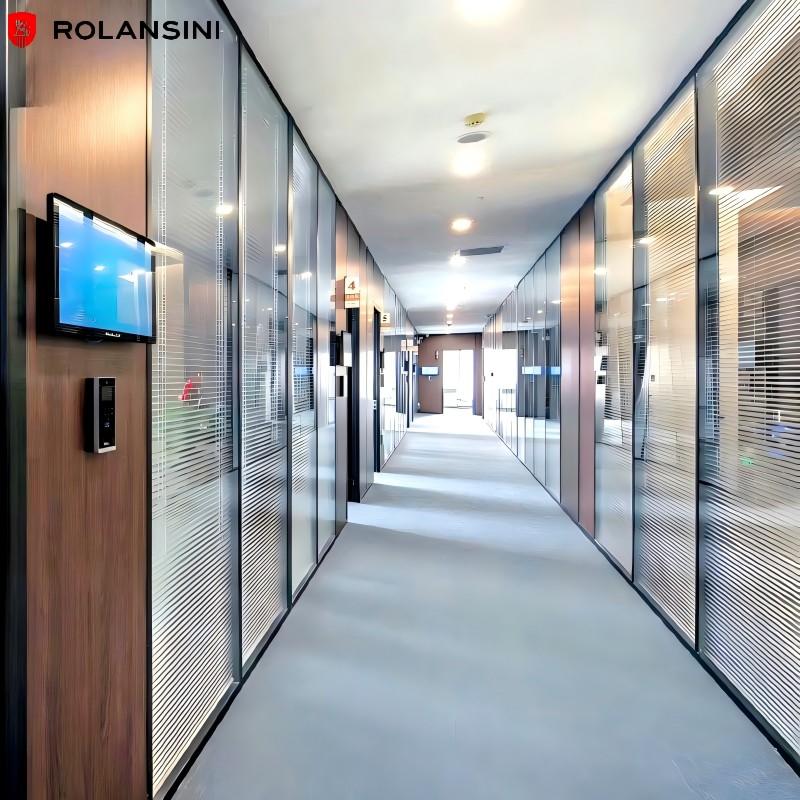

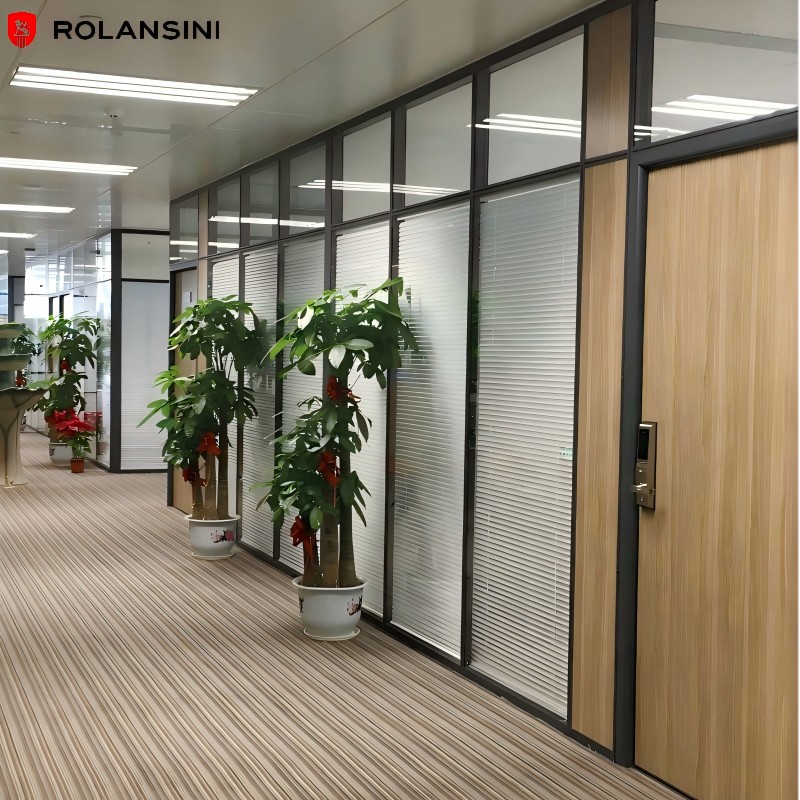

Flexible Lighting and Privacy Protection: With the double-glazed system featuring built-in blinds, light and privacy can be easily adjusted manually or remotely. The blinds are completely sealed inside the glass, requiring no cleaning or maintenance.
Excellent Sound Insulation: The precision aluminum alloy frame combined with the sealed design provides excellent sound insulation. Sound insulation values range from 35dB to 52dB depending on the product.
Powerful Wiring Management: Pre-installed wiring space within the frame allows for easy installation of switches and sockets, separating high and low voltage wiring for convenient future maintenance and expansion, resulting in a cleaner office desktop.
Green and Environmentally Friendly, Ready to Use Immediately: Both the all-aluminum frame and glass are made of environmentally friendly materials. The installation process is paint-free, odorless, and free of formaldehyde and other harmful substances, allowing for immediate use after completion.
Reusable and Cost-Effective: The modular design allows for partial disassembly and assembly, with a material reuse rate of 80%-90%. When relocating, the partition system can be moved and reconfigured, significantly reducing secondary renovation costs.
Stylish and aesthetically pleasing, enhancing the overall ambiance: The clean lines of the aluminum alloy frame paired with transparent glass significantly increase the sense of spaciousness and modernity, making the office environment brighter and more professional.

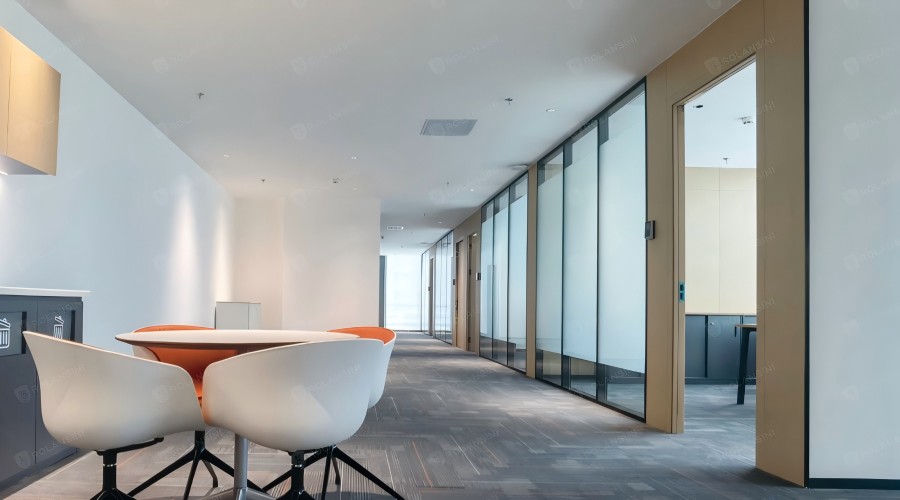

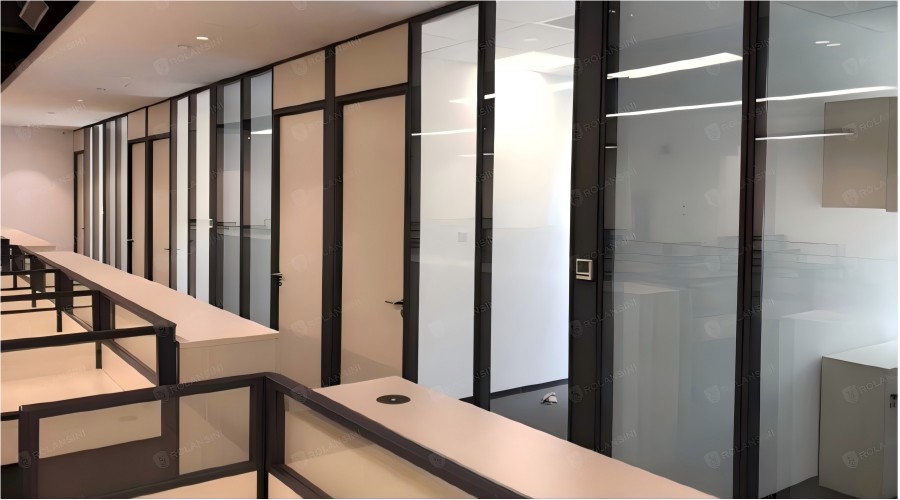

Glass partitions are widely used in commercial spaces such as office buildings, conference rooms, and exhibition halls, as well as in hospitals, schools, and shopping malls. Different venues require different glass partitions with varying requirements and specifications; please contact Rolandsini's foreign trade manager for details.
