Views: 0 Author: Site Editor Publish Time: 2026-03-18 Origin: Site

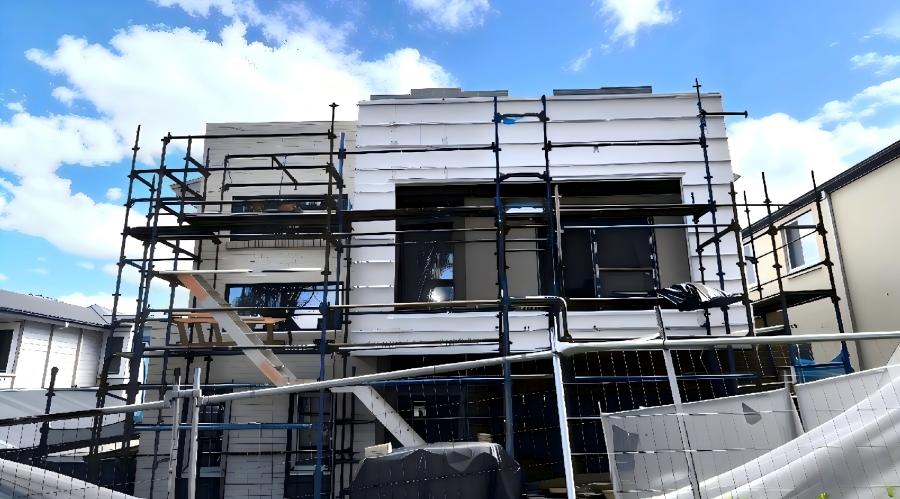

In the journey of building a single dwelling in Australia, doors and windows are not only the eyes of the building, but also crucial barriers for sound insulation, heat preservation, wind resistance, and safety. In this project, a Sydney builder customized a complete door and window system via shipping from China, communicating closely with us throughout the process from selection and structural confirmation to installation details. Faced with geographical distance, climate differences, and construction uncertainties, we used our professional knowledge to address concerns one by one, ultimately achieving a high-quality completion.
The customer observed that most domestic manufacturers filled the gap to 15mm and worried whether this was the optimal solution.
→ We provided scientific data support: The thickness of the air-filled layer has a significant impact on the K-value (heat transfer coefficient). The optimal thickness is 12-16mm for normal vertical placement and 6mm for horizontal placement. Thicker is not necessarily better; performance needs to be optimized based on the installation direction.
In Australia, 6.38mm single-pane glass is commonly used, raising concerns about the strength of 5mm.
→ We clearly state that single-pane glass is far inferior to double-pane structures in terms of wind pressure resistance and noise reduction. We recommend a double-glazed design, which not only improves safety but also significantly enhances living comfort.
Key Performance Indicator | ❌6.38mm Laminated Glass | ✅5mm Double Glazing |
1. Wind Load Resistance | ❌ Weaker | ✅ Stronger |
2. Sound Insulation | ❌ Average | ✅ Excellent |
3. Thermal Insulation & Energy Saving | ❌ Poor | ✅ Superior |

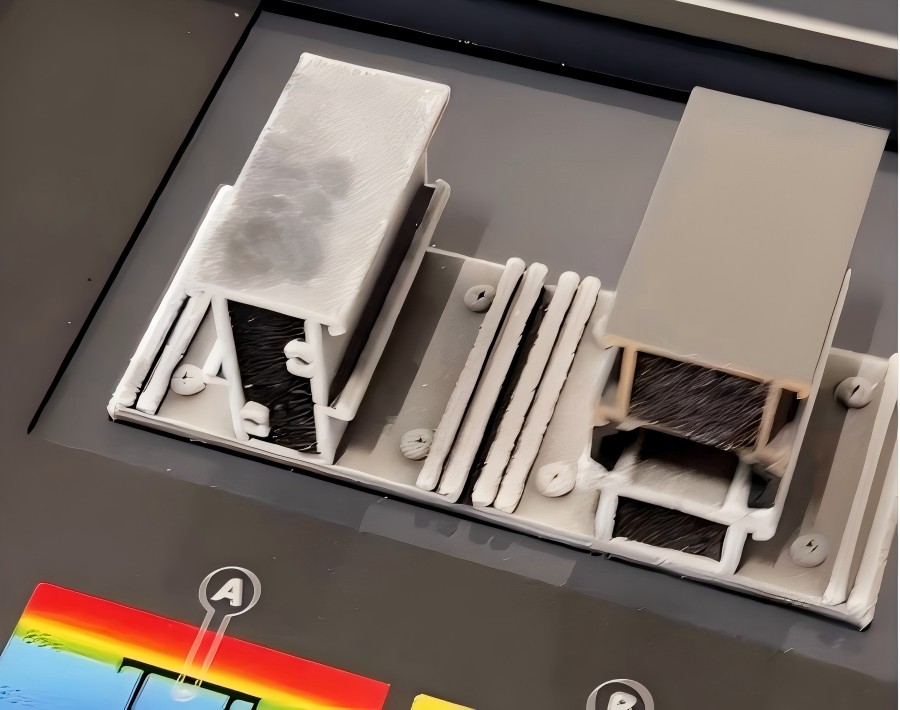

→ We frankly explain that thermally broken aluminum profiles have excellent thermal insulation performance, making them suitable for areas with large temperature differences; although the unit price is higher, it can save on air conditioning electricity bills in the long run. Sydney has a mild climate, so if energy efficiency and comfort are prioritized, thermally broken profiles are a wise choice.And he finally choose to upgrade it.

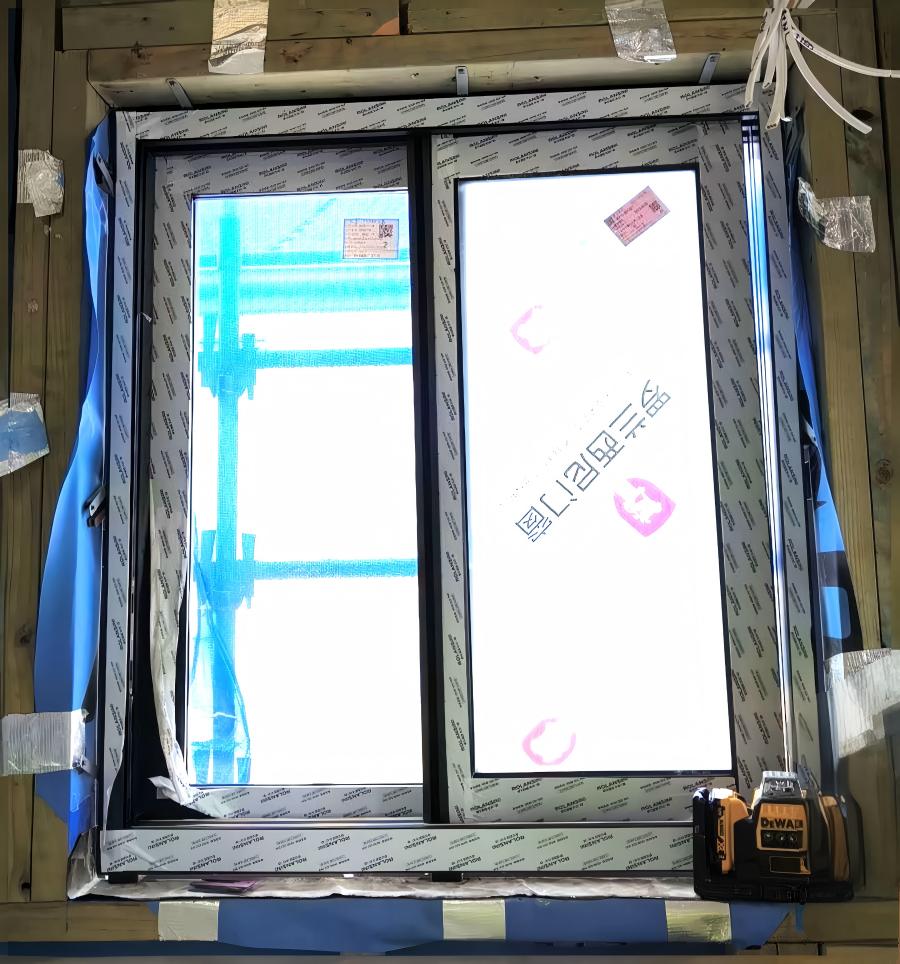

→ Our responses to each point: The extra-thick fixing plates can be bent or installed at an angle to ensure stability.We recommend installing fixing plates on all four sides to enhance overall stability.Covering the fixing plates with plasterboard leaves gaps for cushioning, preventing cracking from minor vibrations.

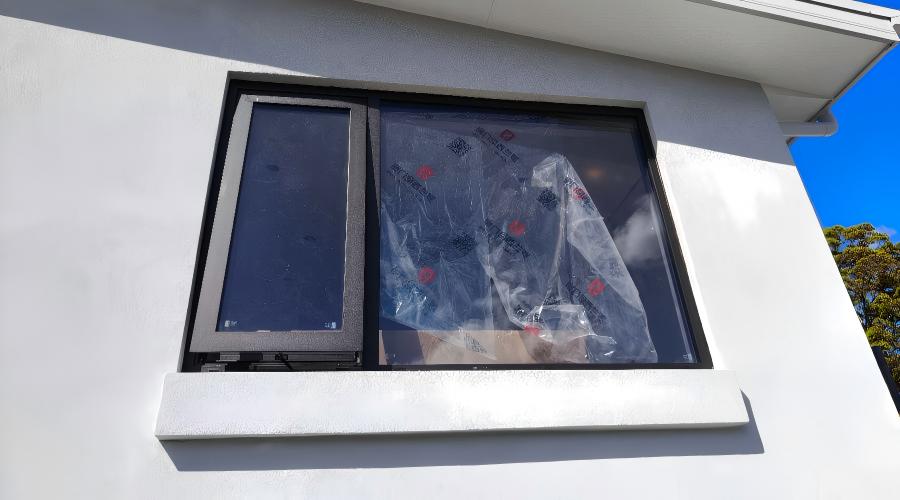

→ We recommend replacing the W11/W12 with hand crank awning windows, which offer better sealing and significantly improved sound insulation compared to sliding windows.

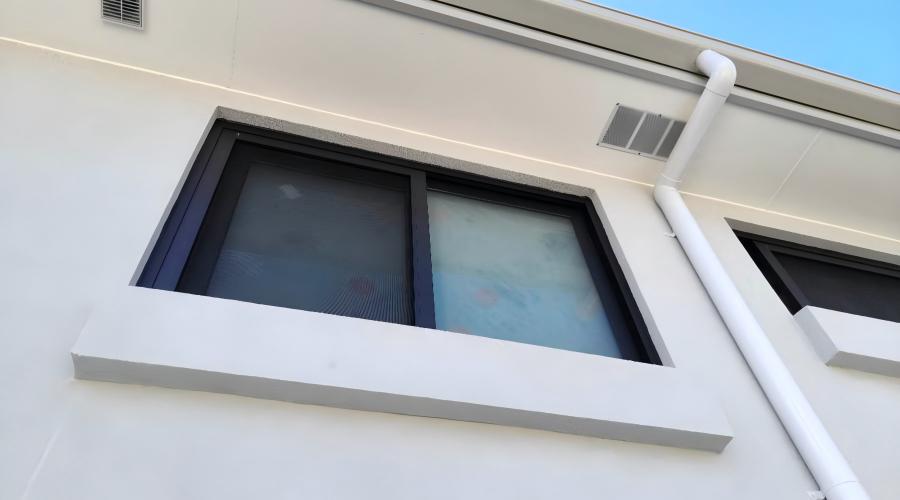

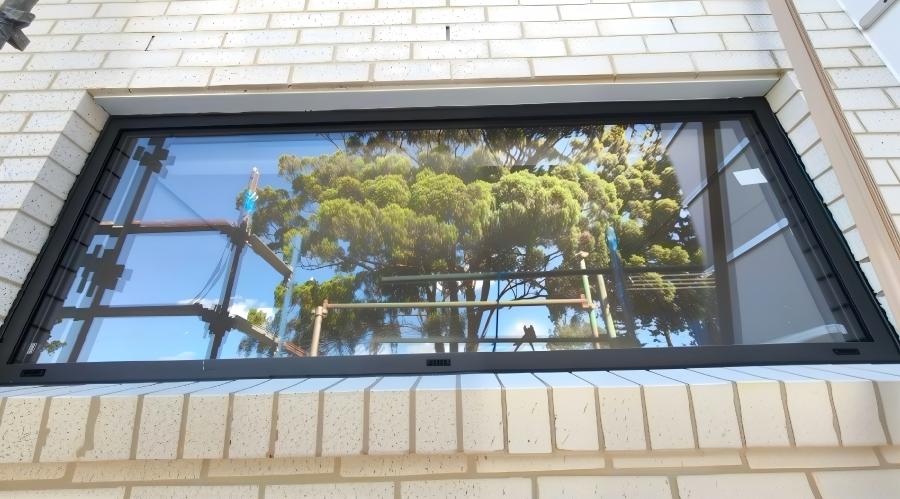

After multiple rounds of detailed communication and technical confirmation, the homeowner confidently placed the order and successfully completed customs clearance by sea. All windows were custom-made according to the drawings and precisely installed, with special optimizations made for noise-sensitive areas. Now, the new home not only boasts a modern and stylish exterior but also a quiet and comfortable interior, truly achieving a high-quality living experience of "what you see is what you get."
"From the initial questions to the smooth installation, everything has gone well so far. The team's professional responses gave me great peace of mind. Especially their detailed explanations regarding glass thickness, thermal break selection, and fixing plate installation completely dispelled my concerns."
✅ In-depth Technical Support — More than just aluminum windows and doors, we provide solutions.
✅ Worry-free Cross-border Service — From drawing confirmation to sea freight installation, we accompany you throughout the entire process.
✅ Customized Response — Tailored to Australian climate, regulations, and lifestyle.
If you are planning a new-built house or renovation project, please contact us for a consultation on your exclusive window and door solutions!
