From Raw Aluminum To Stylish Fixtures: The Craftsmanship Behind Modern Aluminum Windows And Doors

Views: 0     Author: Guangdong Rolansini Home Furnishing Technology Co., Ltd.     Publish Time: 2025-07-18      Origin: https://www.rolansini-windows.com/

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Ever wondered how durable, energy-efficient, and architectural-grade aluminum windows and doors come to life? Behind every sleek frame lies a strict engineering workflow. Here is a behind-the-scenes look at our 7-step precision manufacturing process—from raw alloy selection to export-ready packaging.

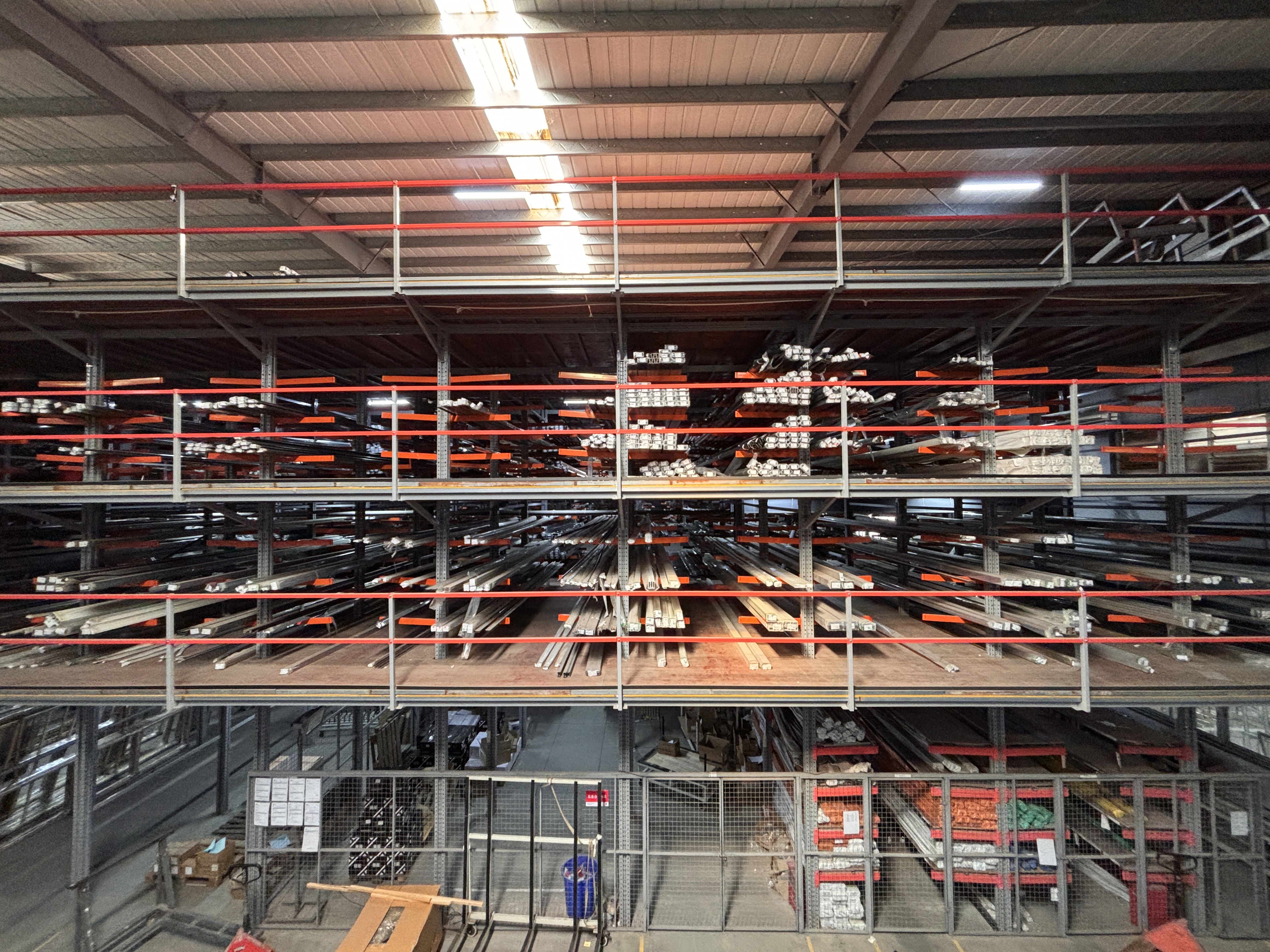

1: Selecting & Powder-Coating 6063-T5 Aluminum Profiles

Every high-performance fenestration system starts with primary 6063-T5 architectural-grade aluminum profiles. Known for an optimal balance of tensile strength, corrosion resistance, and surface finish quality, these profiles form the structural backbone of the window or door. Before fabrication begins, the profiles undergo custom powder coating or anodizing in certified finishing lines to match exact architectural color specifications.

aluminum window and door

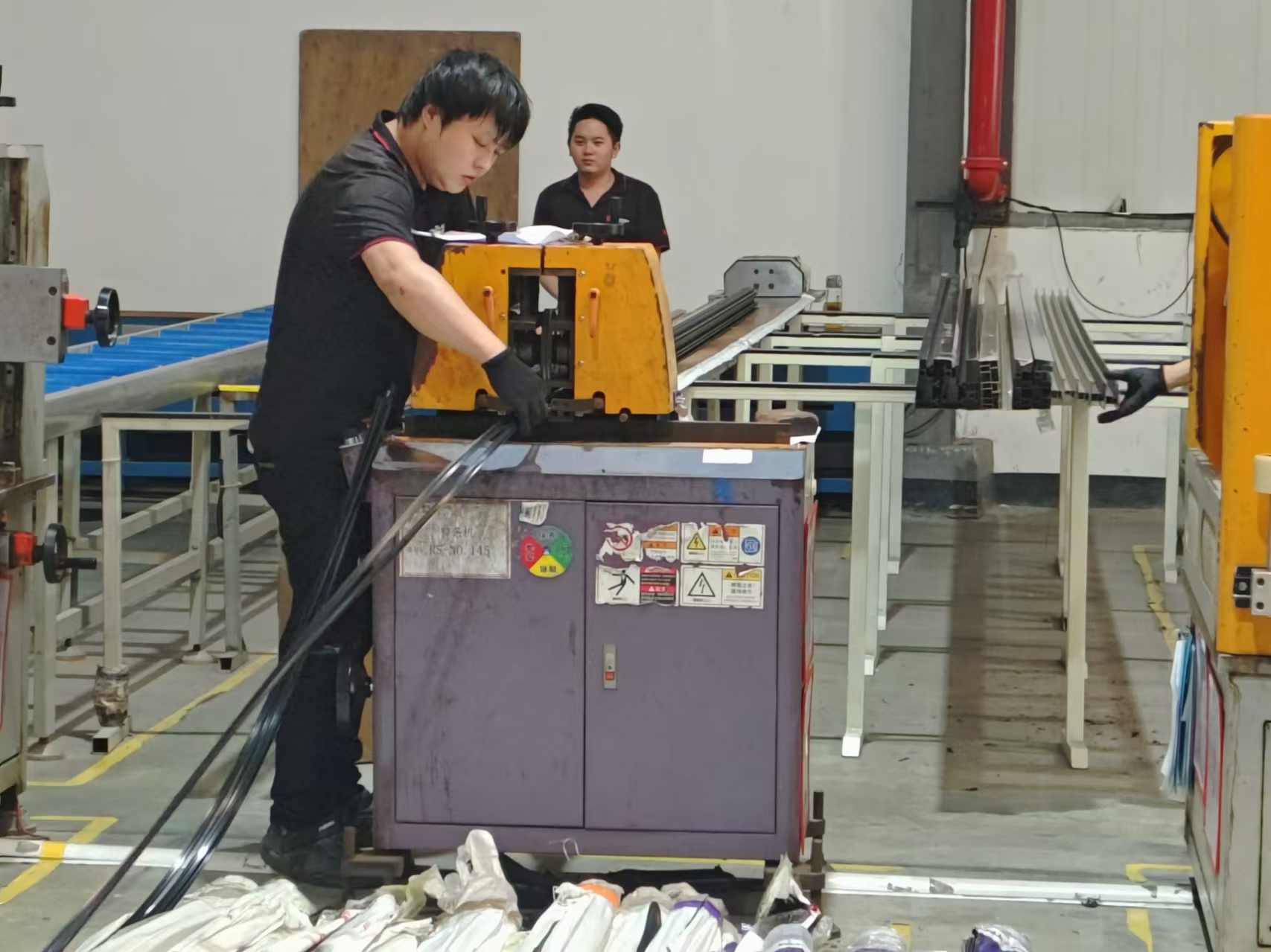

2: Knurling & Thermal Break Strip Threading

To achieve superior thermal insulation, screened aluminum profiles go through a precision knurling (gear-threading) and rolling process:

  • Teeth Rolling: A knurling machine creates micro-teeth along the profile channel to maximize mechanical friction.

  • Polyamide Strip Insertion: High-strength PA66 thermal break strips are threaded between the interior and exterior aluminum profiles and locked in place via a rolling machine.

  • Strict Shear Strength Testing: While the national standard (GB/T 8478-2008) requires a longitudinal shear characteristic value of ≥ 24 N/mm, our factory enforces an internal benchmark of ≥ 48 N/mm—double the standard. High shear resistance prevents strip slippage or profile deformation, directly guaranteeing long-term air tightness, water tightness, and U-value thermal performance.

aluminum window and door

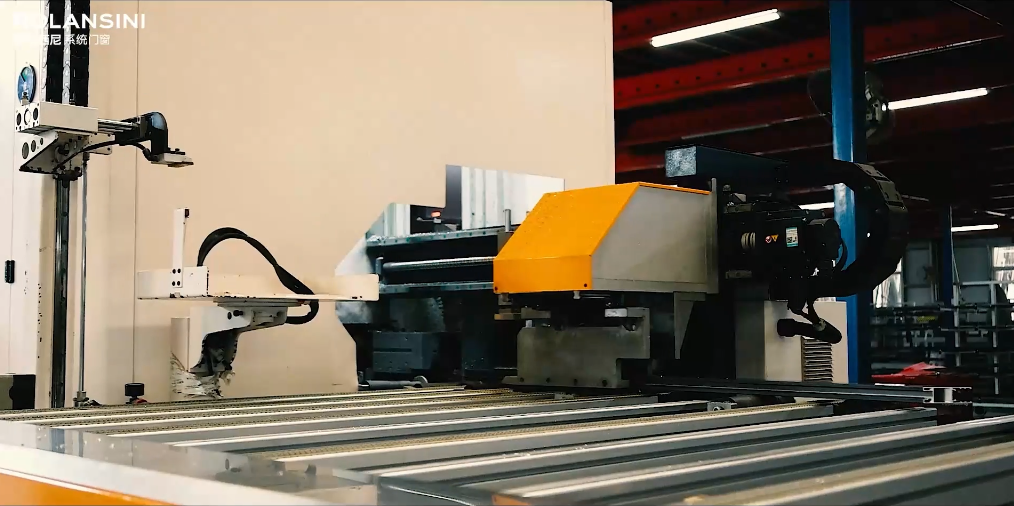

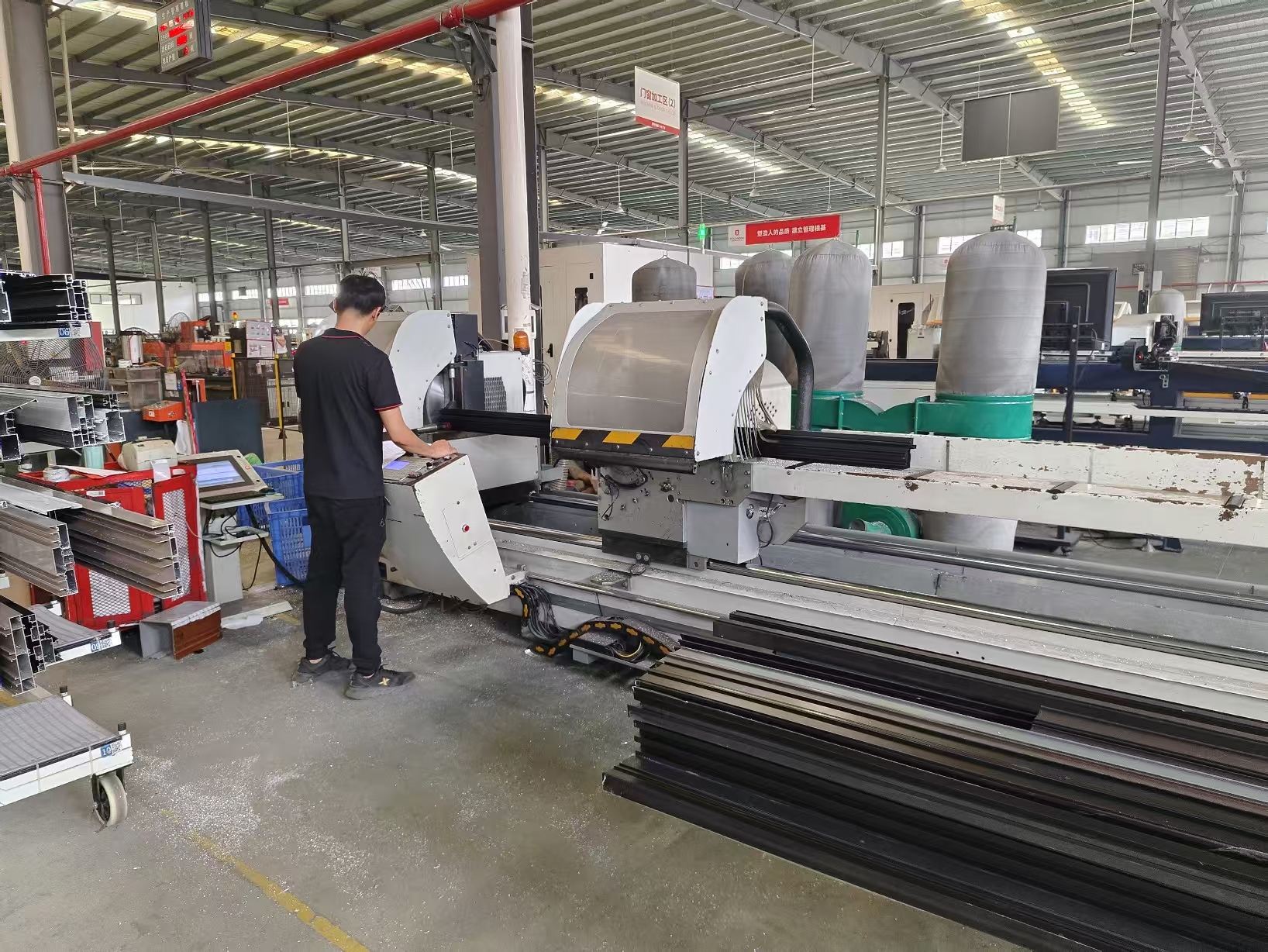

3: High-Precision CNC Cutting

Next, the thermal break profiles are transferred to fully automated CNC double-head cutting centers. Operating at micron-level accuracy, the machinery cuts profiles to exact engineering tolerances for seamless 45-degree or 90-degree corner joints. Standard mounting holes are pre-drilled every 40–50 cm along the frame to ensure structural safety and straightforward on-site installation.

aluminum window and door

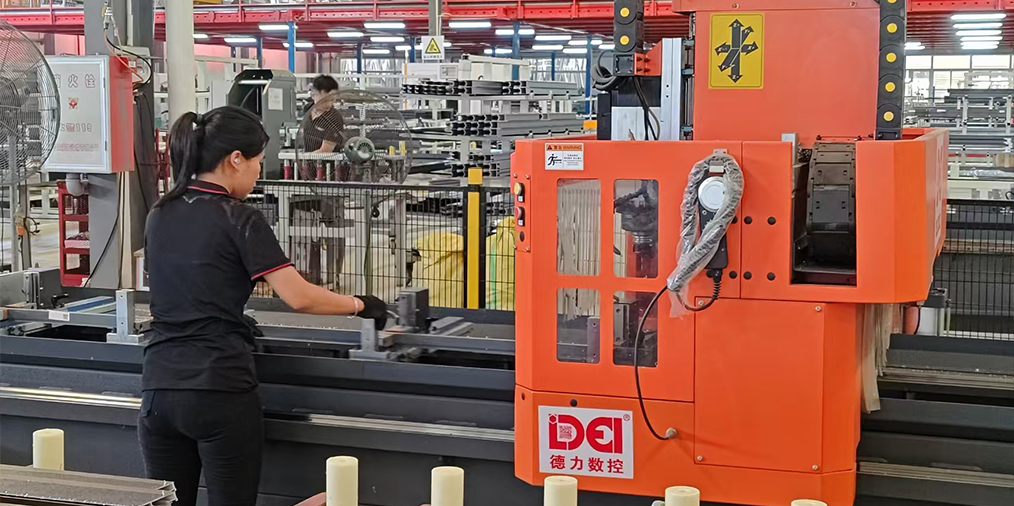

4: CNC Punching and Milling for Hardware

During the CNC punching and milling stage, precision slots, drainage channels, and mounting grooves are machined to house multi-point locks, heavy-duty hinges, and concealed rollers. Accurate hardware milling is critical for smooth operation and wind-load resistance. All machined edges are then cleaned and treated to prevent oxidation in coastal or high-humidity climates.

aluminum window and door
aluminum window and door

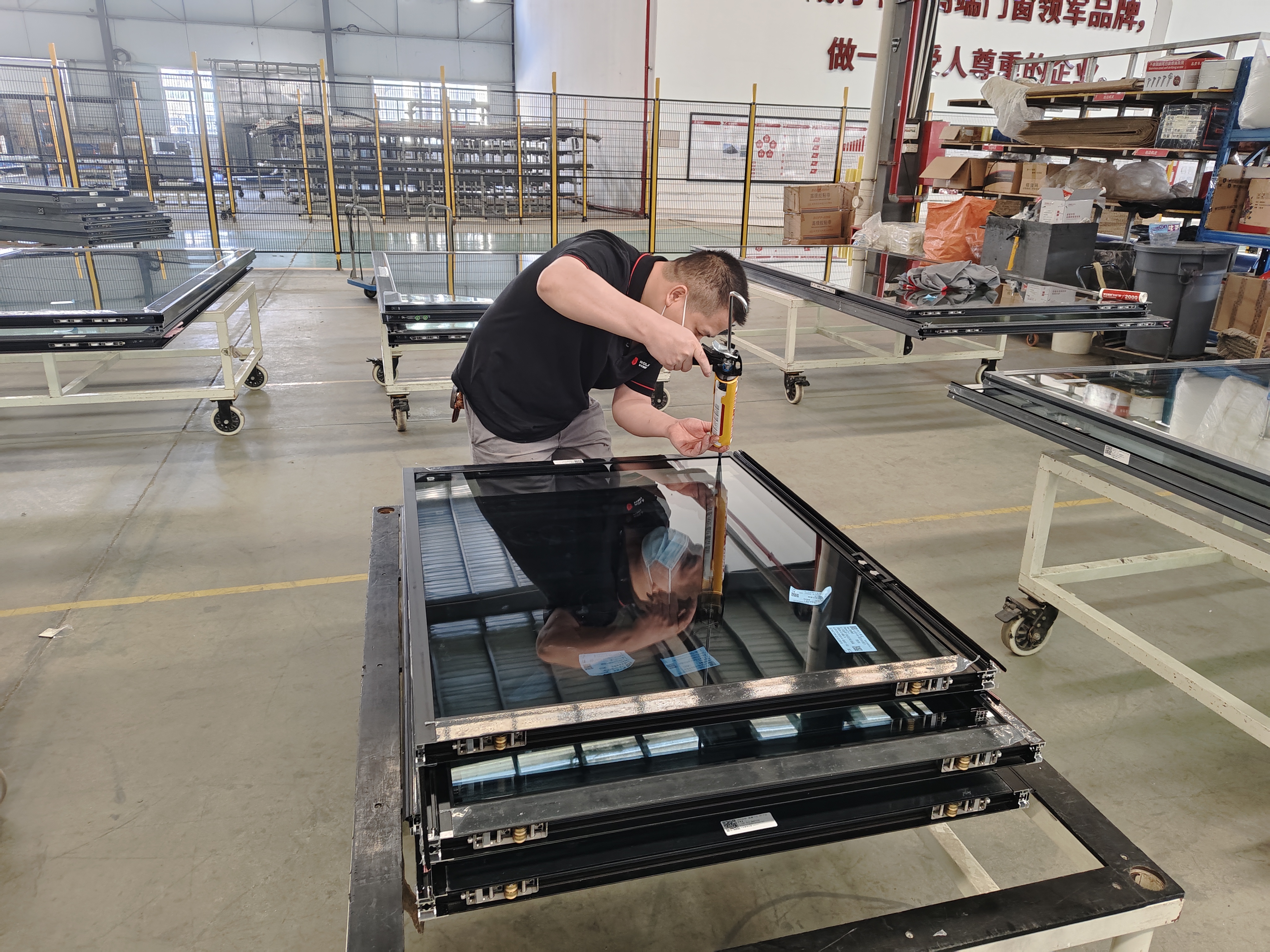

5: Frame Assembly, Glazing & Structural Sealing

Skilled technicians assemble the cut and milled profiles using corner cleats and structural injection glue to ensure rigid, weather-tight joints.

  • Custom Glazing: Double or triple Low-E insulated glass units (IGUs), laminated acoustic glass, or tempered safety glass are fitted according to project acoustic and thermal specifications.

  • Precision Caulking: On dedicated glazing workbenches, technicians apply a continuous, uniform bead of neutral-cure weatherproof silicone sealant along the glass-to-frame perimeter, followed by a controlled curing period to ensure complete solidification.

aluminum window and door
aluminum window and door

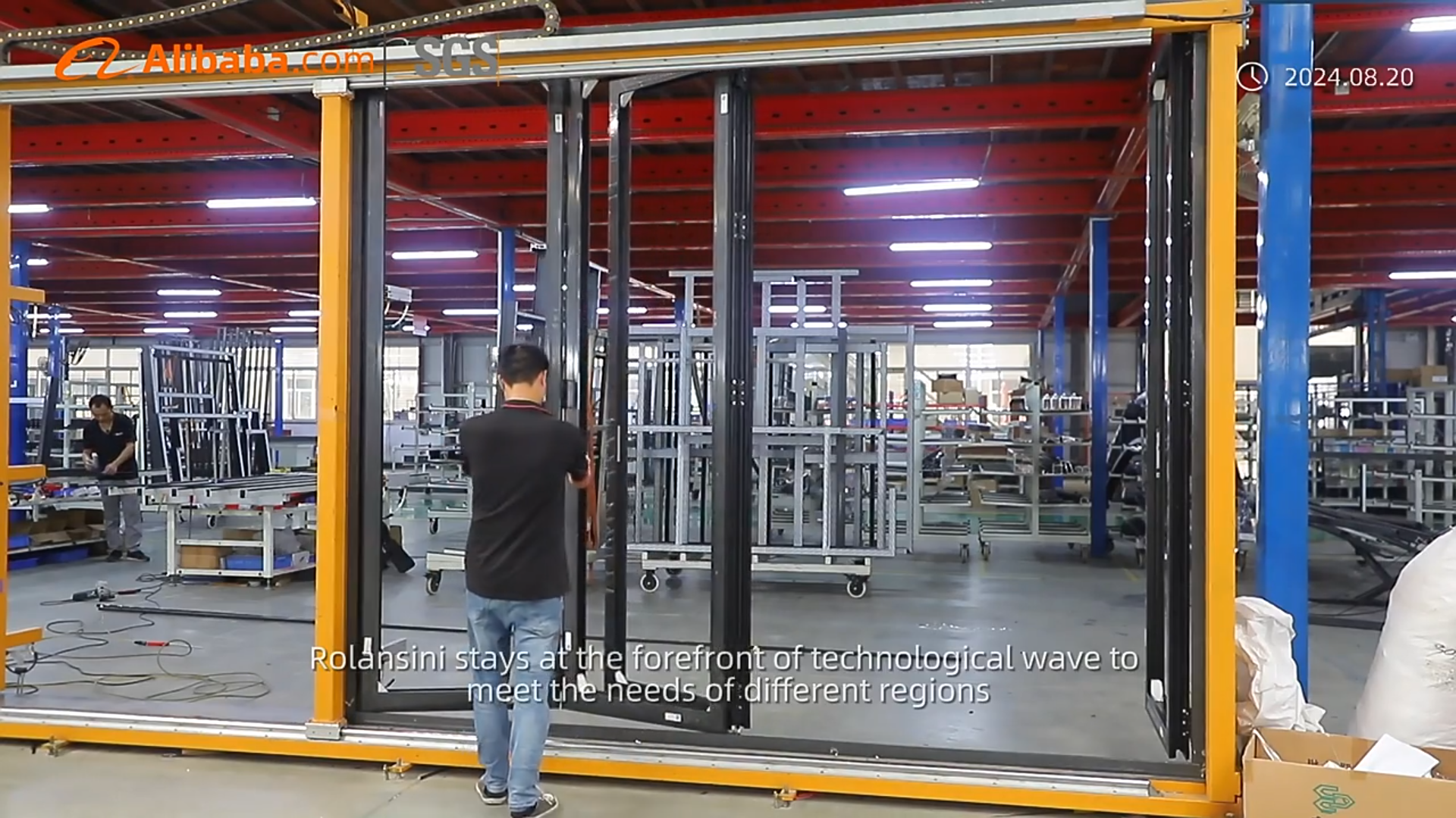

6: Rigorous Multi-Point Quality Inspection

Before leaving the production floor, every finished unit undergoes a comprehensive 100% quality control (QC) inspection covering dimensional accuracy, surface finish, and hardware operation. For example, bi-fold and panoramic sliding doors are mounted on test rigs to verify smooth track gliding, sash alignment, locking compression, and zero dimensional deviation.

test1

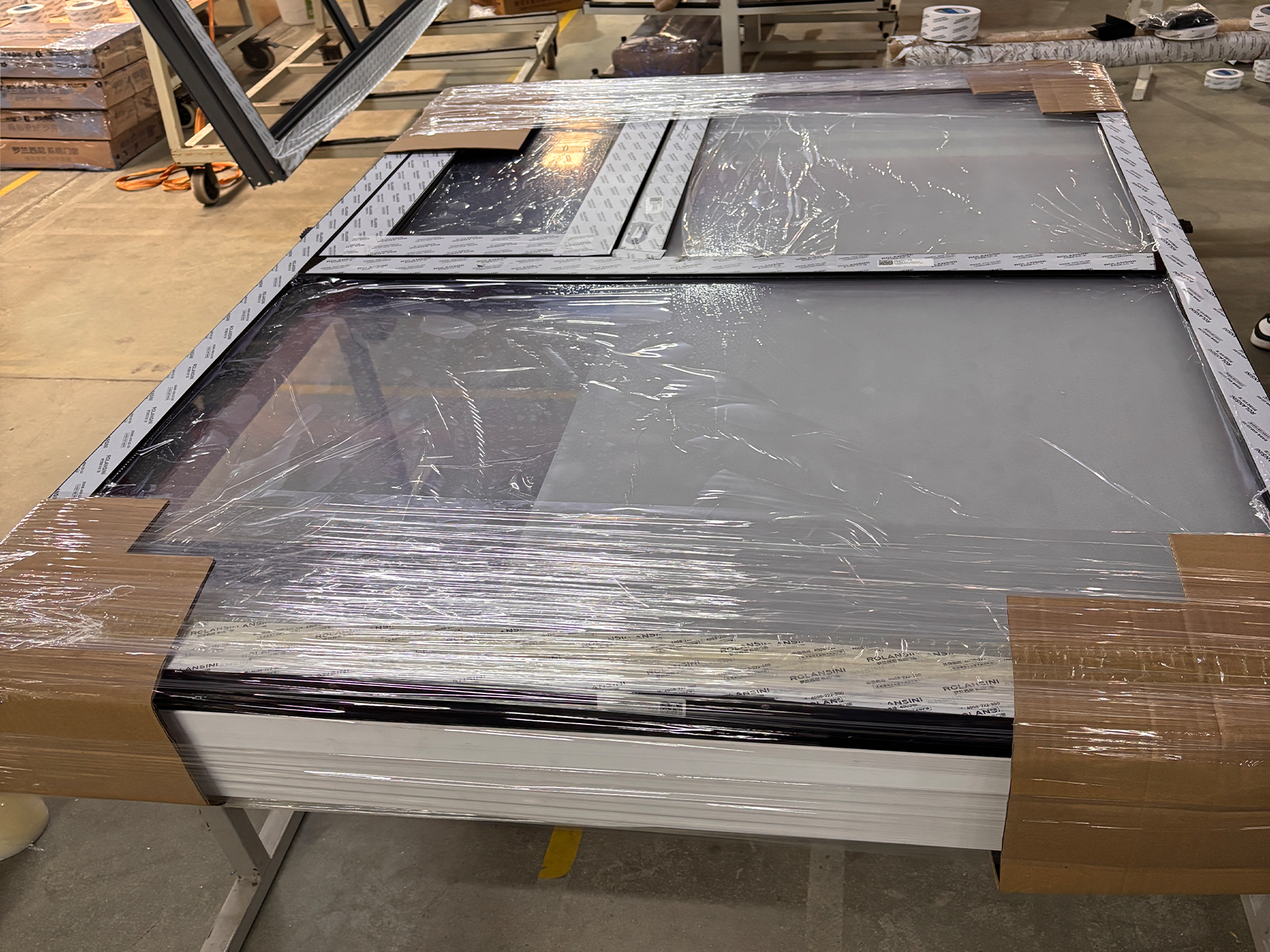

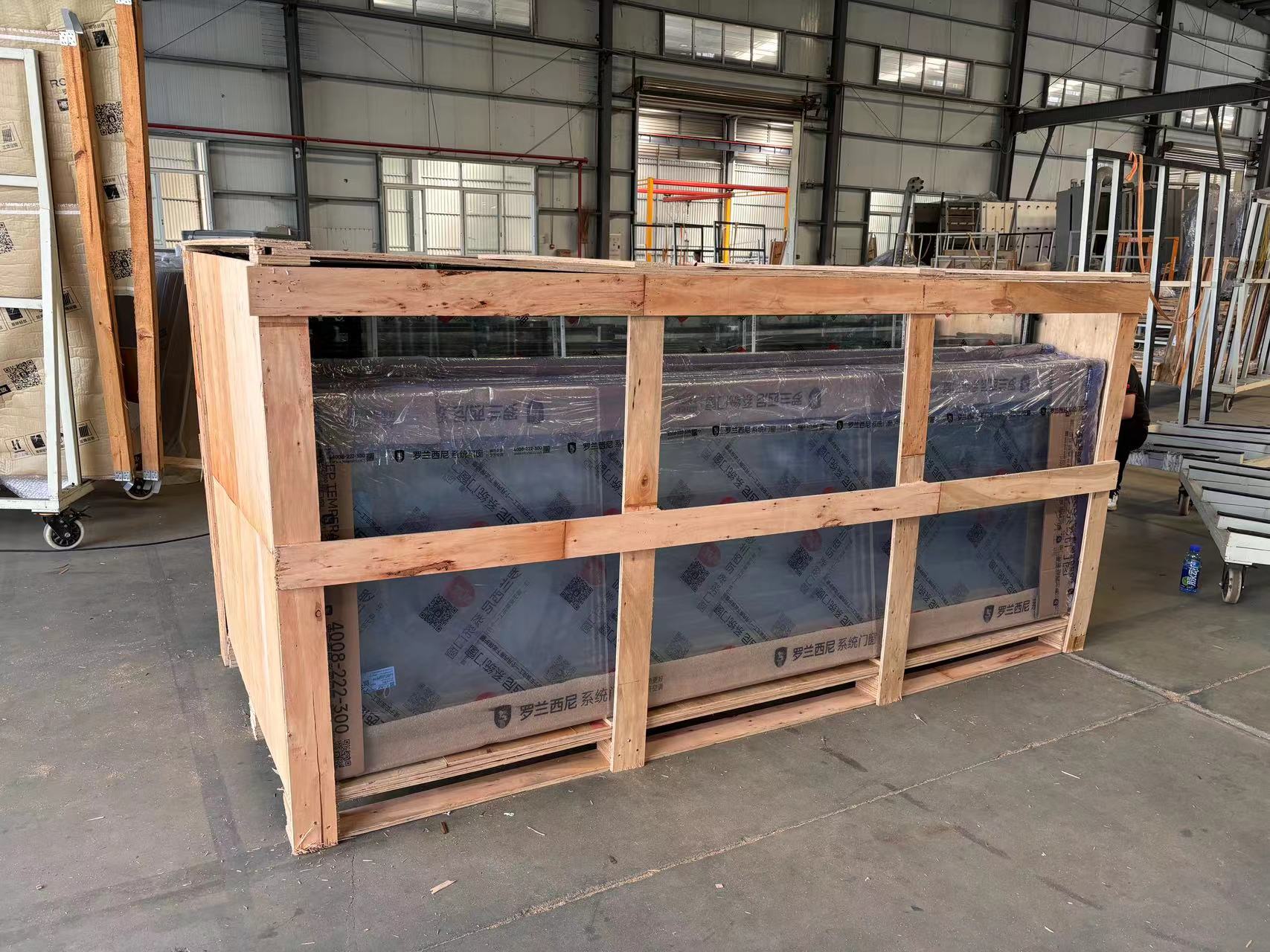

7: Custom Installation Prep & Export Wooden Crating

To streamline on-site construction for overseas builders and contractors, we pre-assemble region-specific installation accessories according to project requirements—including Timber Reveals, Sub Sills & Heads, T-Fins, and Mounting Brackets (widely used in Australian, North American, and European building standards). Finally, each product is wrapped in protective film and pearl cotton, then secured inside custom-built, fumigation-free export plywood crates ready for container loading.

packing wooden case01
packing wooden case

Precision Engineering Built to Last

From raw 6063-T5 billets to export-ready crating, every step in our manufacturing line is governed by measurable quality standards. Looking for a reliable custom aluminum window and door manufacturer for your residential or commercial project? Contact Rolansini engineering team for technical specs and factory consultations.
