Quality Craftsmanship丨How Chamber Design Boosts Insulation in Aluminum Window and Door Systems

Views: 0     Author: Guangdong Rolansini Home Furnishing Technology Co., Ltd.     Publish Time: 2025-05-02      Origin: https://www.rolansini-windows.com/

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

When selecting high-performance aluminum window and door systems, architectural beauty is only half the story. The real secret to year-round indoor comfort lies hidden inside the profile structure: the chambers.

In modern architectural design, multi-chamber aluminum profiles are no longer a luxury—they are the core foundation of thermal insulation and energy efficiency. Let's decode the science behind how Rolansini’s engineered multi-chamber systems revolutionize building performance.

腔体隔热推文1


1️⃣ Why Do Chambers Matter in Window & Door Systems?

Aluminum is inherently a strong conductor of heat. Without precise engineering, heat easily transfers through metal frames into your home during summer and escapes during winter.

This is where chambers come in. Scientifically designed hollow compartments within the aluminum profile interrupt direct thermal conductivity. Unlike conventional single-cavity windows, Rolansini’s advanced multi-chamber design creates multiple air pockets that dramatically reduce heat transfer, lowering your HVAC energy consumption year-round.


腔体隔热推文2

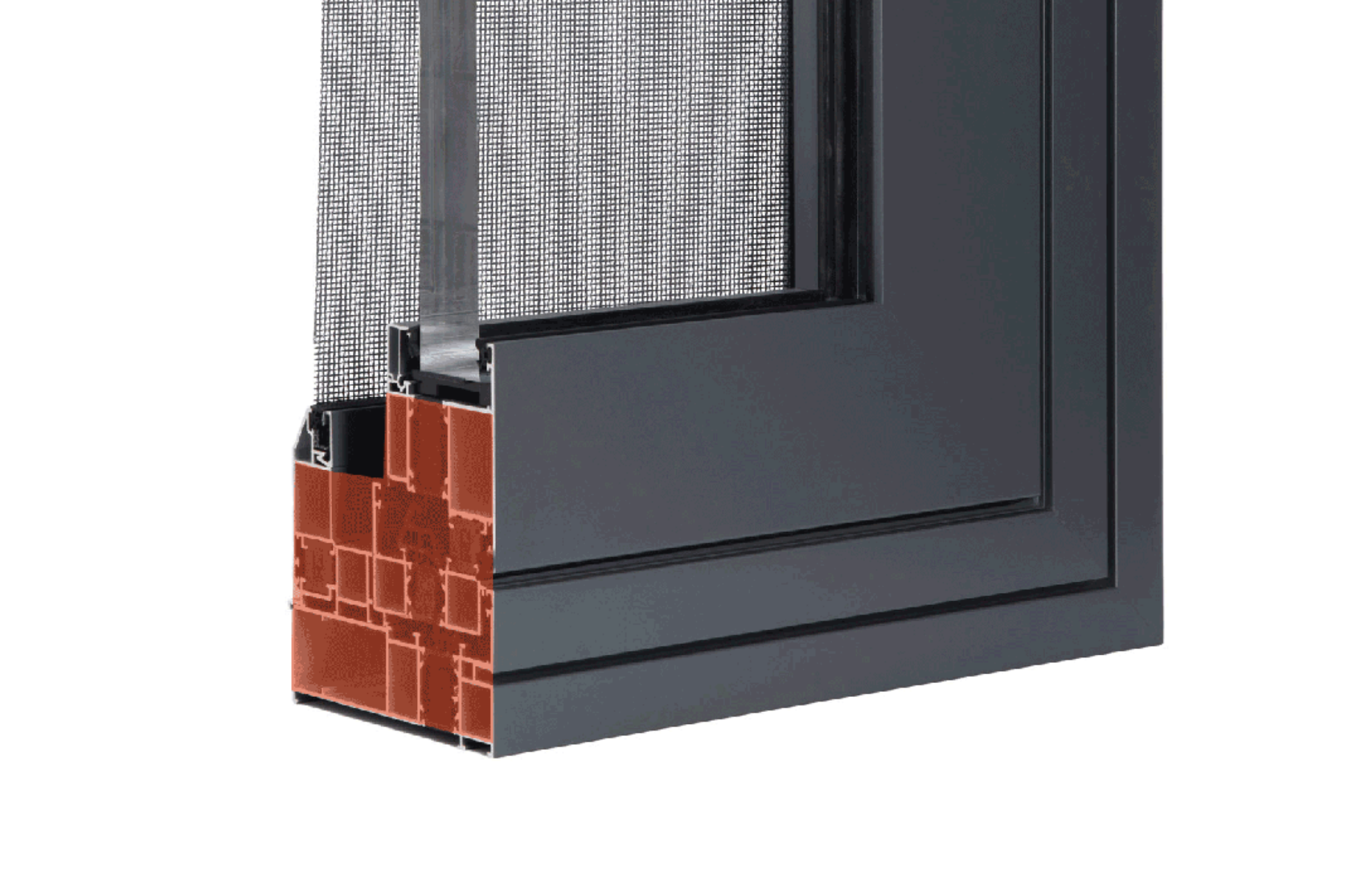

2️⃣ What Are Chambers in Aluminum Profiles?

At their core, chambers are sealed hollow compartments inside aluminum window and door frames.The Science of Air Insulation: Still air inside a sealed chamber acts as a natural thermal insulator.

  • The Science of Air Insulation: Still air inside a sealed chamber acts as a natural thermal insulator.

  • The Multi-Barrier Principle: The rule is simple—more chambers equal more barriers against thermal radiation, conduction, and convection. By dividing the interior of the frame into smaller cells, internal air circulation (convection) is minimized, effectively stopping heat in its tracks.


腔体隔热推文03

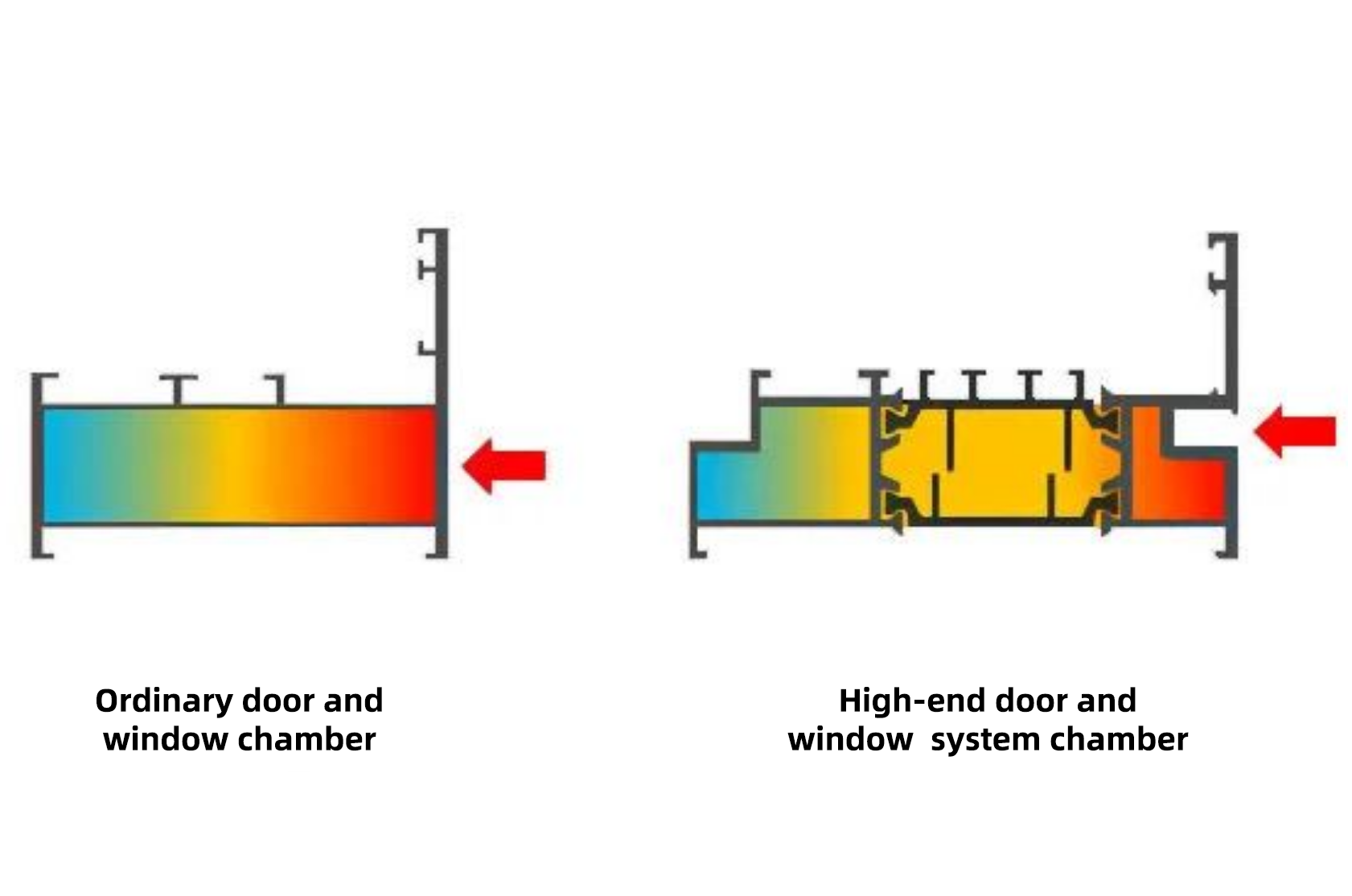

3️⃣ Ordinary Windows vs. Rolansini System Windows

To understand why system windows perform significantly better, let’s compare traditional single-chamber designs with Rolansini’s high-performance multi-chamber architecture:

Feature / Performance Ordinary Aluminum Windows Rolansini Multi-Chamber Systems
Profile Structure Single-chamber hollow design Multi-chamber structural cavities
Thermal Break Layer None or low-grade plastic Super-sized PA66GF25 reinforced nylon bars
Internal Cavity Fill Empty High-density insulation foam ($\le 0.027 \text{ W/m}\cdot\text{K}$)
Heat Blocking Efficiency Low (High $U$-value) Blocks 70%+ of heat exchange
Airtightness & Water Isolation Single seal layer (Prone to drafts) Multi-stage continuous sealing system


 4️⃣ The Scientific Engineering Behind Rolansini Chambers

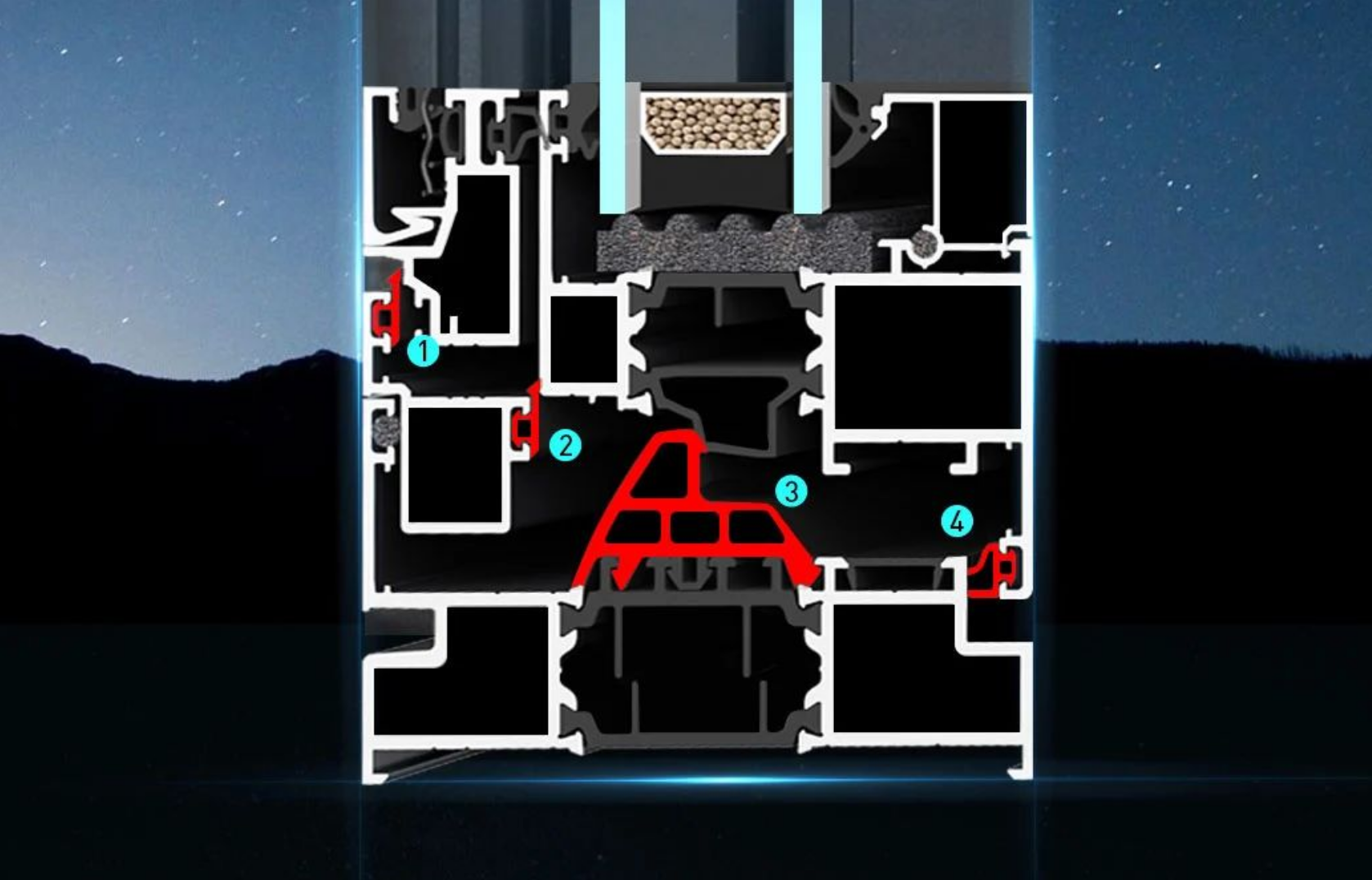

️ Multi-Seal Layer Separation

Rolansini divides the profile interior into dedicated drainage chambers, structural chambers, and insulation chambers. This multi-stage sealing separates air and water flow, preventing rainwater penetration while locking in ambient indoor temperatures.

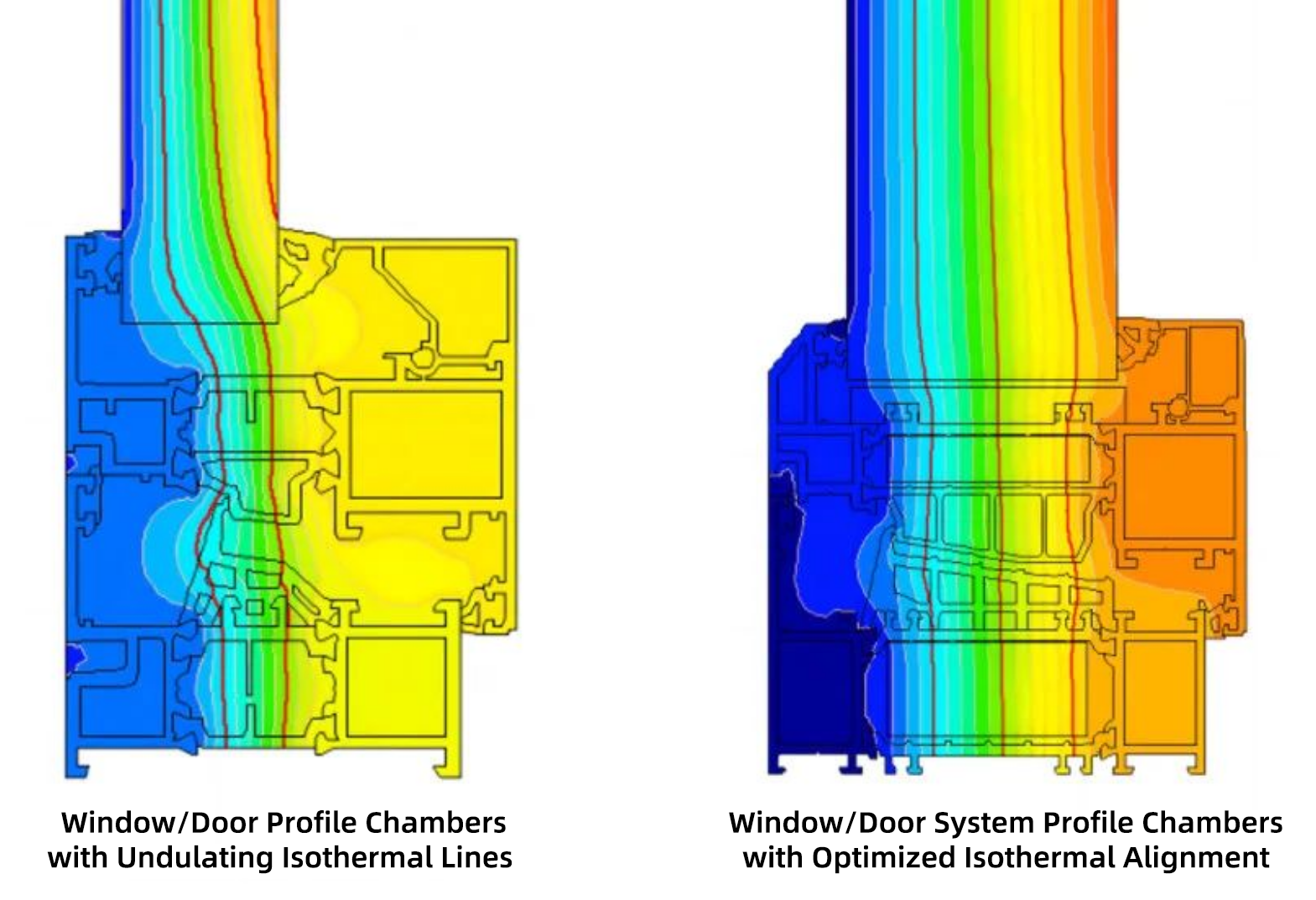

Isothermal Line Alignment

Thermal efficiency drops if heat paths bypass internal barriers. Rolansini aligns the insulation bars of the glass, window sash, and frame along a single straight isothermal line. This creates a continuous, unbroken thermal shield across the entire window unit, eliminating cold bridges and reducing heat loss.

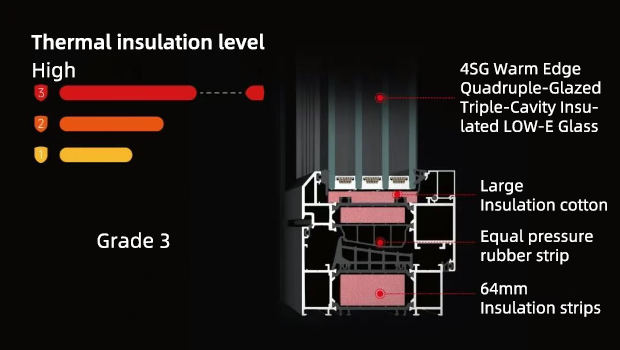

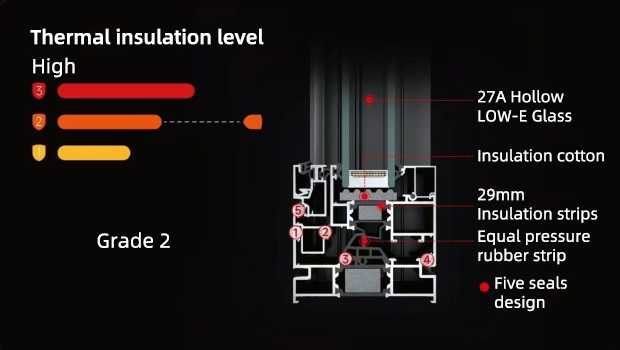

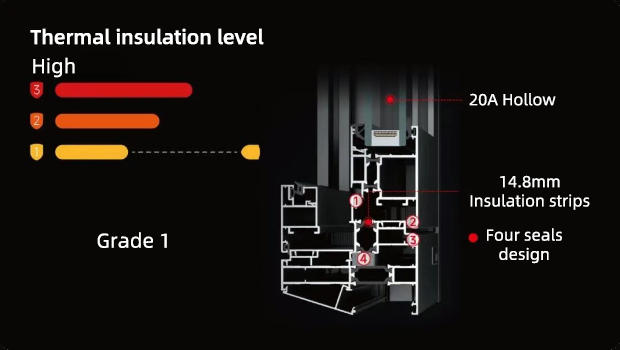

⚡ Super-Sized PA66GF25 + Low-Conductivity Foam

  • PA66GF25 Insulation Bars: Rolansini utilizes ultra-wide polyamide thermal breaks reinforced with 25% glass fiber for superior mechanical strength and structural stability.

  • 0.027 W/m·K Foam Infill: Cavities are injected with high-density polyurethane foam with extremely low thermal conductivity, transforming hollow chambers into dense thermal locks.

腔体隔热推文07
腔体隔热推文08
腔体隔热推文09
腔体隔热推文010
腔体隔热推文4


5️⃣ The 3 Pillars of Rolansini’s Superior Insulation Performance

A high-performance window relies on a holistic design. Rolansini achieves industry-leading thermal insulation through three integrated core pillars:

  1. Engineered Chamber Architecture: Multi-layer cavity barriers disrupt thermal conduction and convection paths within the frame.

  2. Advanced Glass Upgrades: Double or triple Insulated Glass Units (IGUs) featuring low-emissivity (Low-E) coatings and argon gas filling.

  3. Precision EPDM Sealing: Premium automotive-grade EPDM rubber gaskets provide multi-point continuous seals that eliminate tiny gaps and air leaks.


6️⃣ Beyond Chambers: Complete Thermal Harmony

Chambers are the backbone of a system window, but total home comfort requires synergy. By seamlessly unifying multi-chamber aluminum profiles, high-performance glass units, and precision EPDM seals, Rolansini’s aluminum window and door systems excel in all climate conditions.

The Rolansini Result: Complete airtight insulation that reliably keeps your home cozy in winter, cool in summer, and quiet all year round.


腔体隔热推文6

Frequently Asked Questions (FAQ)

Q1: How many chambers should a good aluminum window profile have?

While 3-to-5-chamber designs are common for standard energy savings, high-performance systems use specialized multi-chamber layouts combined with thermal break bars to achieve optimal insulation ($U$-value reduction).

Q2: Do multi-chamber windows also improve sound insulation?

Yes! The same multi-cavity structures and sealed air pockets that block heat also act as acoustic barriers, significantly dampening external noise levels (such as traffic and wind).
