T9
Rolansini

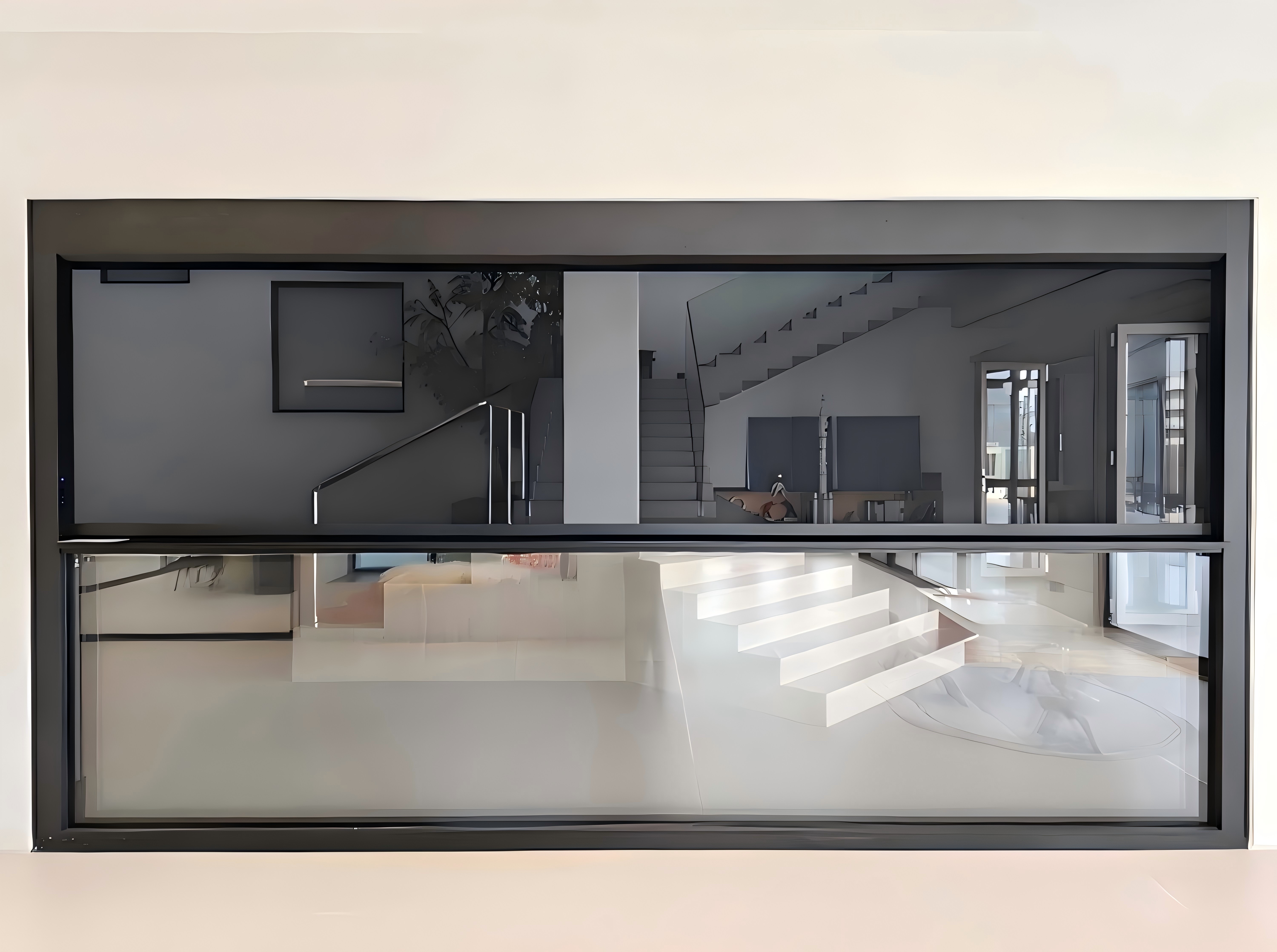

Rolansini T9 electric panoramic lift-up window features a 3.0mm thick frame with a total frame size of only 168mm, providing exceptional wind pressure resistance. It comes standard with 8G+18A+8G double-glazed windows, offering excellent sound and heat insulation.
The lift-up window employs a minimalist panel design, with a visible pane of only 2.1cm, significantly reducing visual obstruction. The fixed lower glass is designed to be over 1.1 meters high, providing a panoramic view and offering an unrestricted, expansive experience whether used as an open balcony for enjoying the scenery or as a closed balcony for shelter from the elements.
Profile Reinforcement | 1.8-3.0mm |
Finish Treatment | Powder Coating |
Frame Depth | 168mm |
Frame Width | 21mm |
Sash Width | 46mm |
Max. Leaf Width | 1377-4000mm |
Max. Leaf Height | 700-1200mm |
Glass Standard | 34mm(8G+18A+8G) Double Toughened Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 34 mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Double Panes,Triple Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure...Glass |
Hardware | China Brand |
Screens | Motorized Polyester Mesh Screen |
Blinds | No Blinds |
Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA Certification |
Warranty | 10 Years - Terms and conditions apply |
The lift-and-slide system features an ultra-thin 2.1cm middle frame and 8mm tempered glass fixed panel. Its horizontal split frame design allows for a 95% unobstructed view while instantly converting between an open-air terrace (upper sash fully retracted) and a weatherproof enclosure. The patented wind-proof wing structure and 3.0mm thick 6063-T6 aluminum profiles can withstand wind loads of less than 4,500Pa, making it ideal for coastal balconies or high-rise sunrooms seeking spatial flexibility.The intermediate transom can also bear the weight of three adults (about 200kg).
The load-bearing system uses a composite material made of BASF materials for flexible connections. The high-precision industrial-grade brushless motor provides 25dB silent operation and 0.1mm height adjustment accuracy. The intelligent safety beam immediately reverses the sash movement when an obstacle is detected, while the child lock mode and IP68-level sealing prevent accidents. Maintenance-free composite rails and modular access ports ensure over 100,000 uses in wet climates, and paired with the optional electric insect screen (0.5mm mesh), it allows for seamless indoor-outdoor living.
To resolve the conflict between ventilation and mosquito control, the T9 electric lift window is equipped with an electrically operated, high-transparency, windproof screen. Users can intelligently control the raising and lowering of the screen with a single button, effectively blocking mosquitoes and achieving free ventilation while enjoying high-definition, transparent views of the outside world.
