T6
Rolansini
Electric vertical-lift windows represent a major leap in modern architectural design. By gliding straight up and down rather than swinging on a hinge, they solve a classic design dilemma: how to provide maximum ventilation without sacrificing a single square inch of usable indoor or outdoor floor space.
| Miniature electric lift window |
| Product Model | T6 |
| Frame Material | Aluminium alloy |
| Profile Thickness | 1.6-2.0mm |
| Frame to Wall | 120mm |
| Outer Frame Front Width | 70mm |
| Window Sash Front Width | 40mm |
| Armrest front width | 41mm |
| Opening Method | Vertical lifting |
| Unique design | Ultra-narrow exterior design + system modules, Fixed position large bevel pressure line design |
| Micro-plate Design | Maximum width of a single panel: 1.2m Maximum height: 1.5m |
| Glass Types | Double glass,Frosted glass,Reflective glass,laminated glass,Low-E glass etc. |
| Glass Thickness | 5+27A+5、5+0.76+5+12A+5、6+18A+6、8+14A+8、10+15A+10 |
| Glass Compatibility Range | 30-35mm |

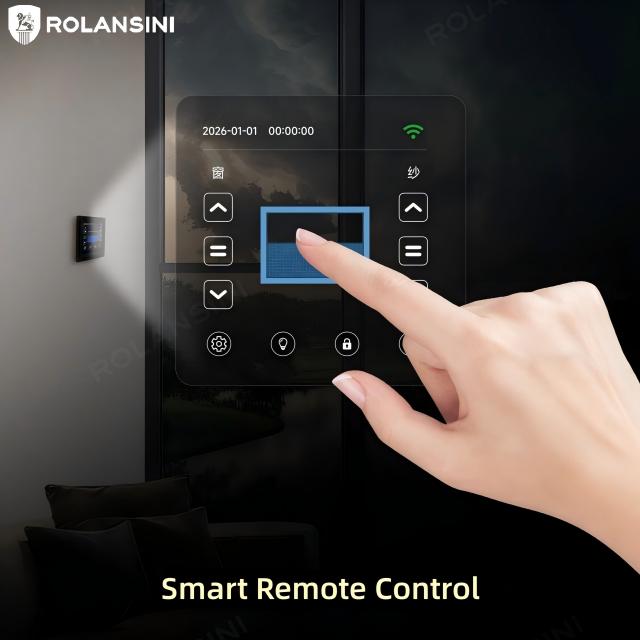

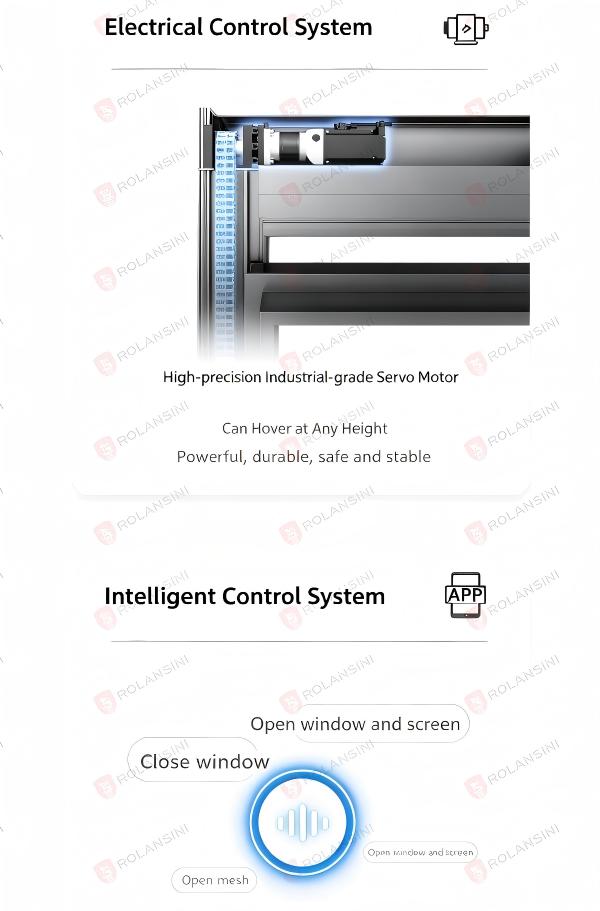

| Standard hardware | Servo motor + smart panel + remote control、AI voice/remote control |
| Hardware Optional | Rain sensor, backup power |
| Optional features | Electric windproof roller shutter screen, manual pull-up and drop screen |
| Electric power | 240 |
| Maximum load | 60kg |
| Frame Color | Starry Gray |
| Warranty | 10 years |
| Lead Time | 45-55 workding days |
| Feature | Heat Insulation/Sound insulation/Waterproof etc. |
| Application | Balcony window enclosure renovation, living room scenic windows, high-mounted or heavy-duty windows, restaurants, cafes, bars, shopping malls and office buildings, etc. |
The high-performance profiles used in these systems deliver several distinct engineering and design advantages:
Thermal Efficiency & Insulation: Premium models feature thermally broken aluminum profiles paired with double or triple-pane insulated glass. This structure acts as a thermal barrier, drastically minimizing heat transfer to keep indoor environments stable while lowering heating and cooling costs.
Acoustic Control: The multi-layered glass configurations, combined with heavy-duty EPDM rubber seals and precise motorized alignment, provide excellent sound damping against urban noise pollution.
Smart Integration: Beyond structural benefits, miniature electric lift windows seamlessly connect with smart home ecosystems. They can be operated via mobile apps, voice commands, or automated sensors (such as wind, rain, or air quality sensors) to optimize natural ventilation automatically.
Sensor Integration: They can automatically close the moment built-in sensors detect rain or high wind speeds.
Climate Automation: They can sync with indoor air quality monitors or HVAC systems to open for natural ventilation when outdoor temperatures are ideal, reducing reliance on air conditioning.
Safety Barriers: Integrated anti-pinch sensors instantly detect obstacles in the window's path, reversing the motor to protect hands or objects.
Prioritize "Temperature Thermal Break" Structure: Ensure your chosen model includes high-quality Technoform thermal break strips. Sacrificing thermal break structure for an extremely narrow design will create a "greenhouse" effect in summer due to the large area of glass and aluminum.
Properly Reserve Access and Power Supply: During the ceiling installation phase, coordinate with the window and door engineer to reserve a concealed access panel near the motor and pre-install a 220V power line.
Large Glass Window First: Confirm in advance whether the building's elevator can accommodate the large glass window. If hoisting is required, report to the property management and assess the crane's working conditions.
