In modern residential design, the balance between the openness and functionality of space is becoming more and more important. This time, we provided a high-quality and customized indoor partition solution for a residential project in the Philippines - a slim hanging sliding glass pocket door system with invisible track, which successfully met the owner's multiple needs for beauty, practicality and space utilization.
[Project Background]
The client wanted to create a modern partition system between the living room and dining room, requiring a bottom no-track design to avoid ground obstacles affecting daily traffic. At the same time, when not in use, the three glass leafs can be completely hidden inside the wall to maintain the transparency and neatness of the space. In addition, the client also specifically proposed that fluted glass be embedded in the middle of the door to enhance the overall decorative effect.
[Solution]
In response to the personalized needs of customers, we provide a customized hanging glass pocket door solution based on our M5 perfect system:
1. Accurate measurement and solution design

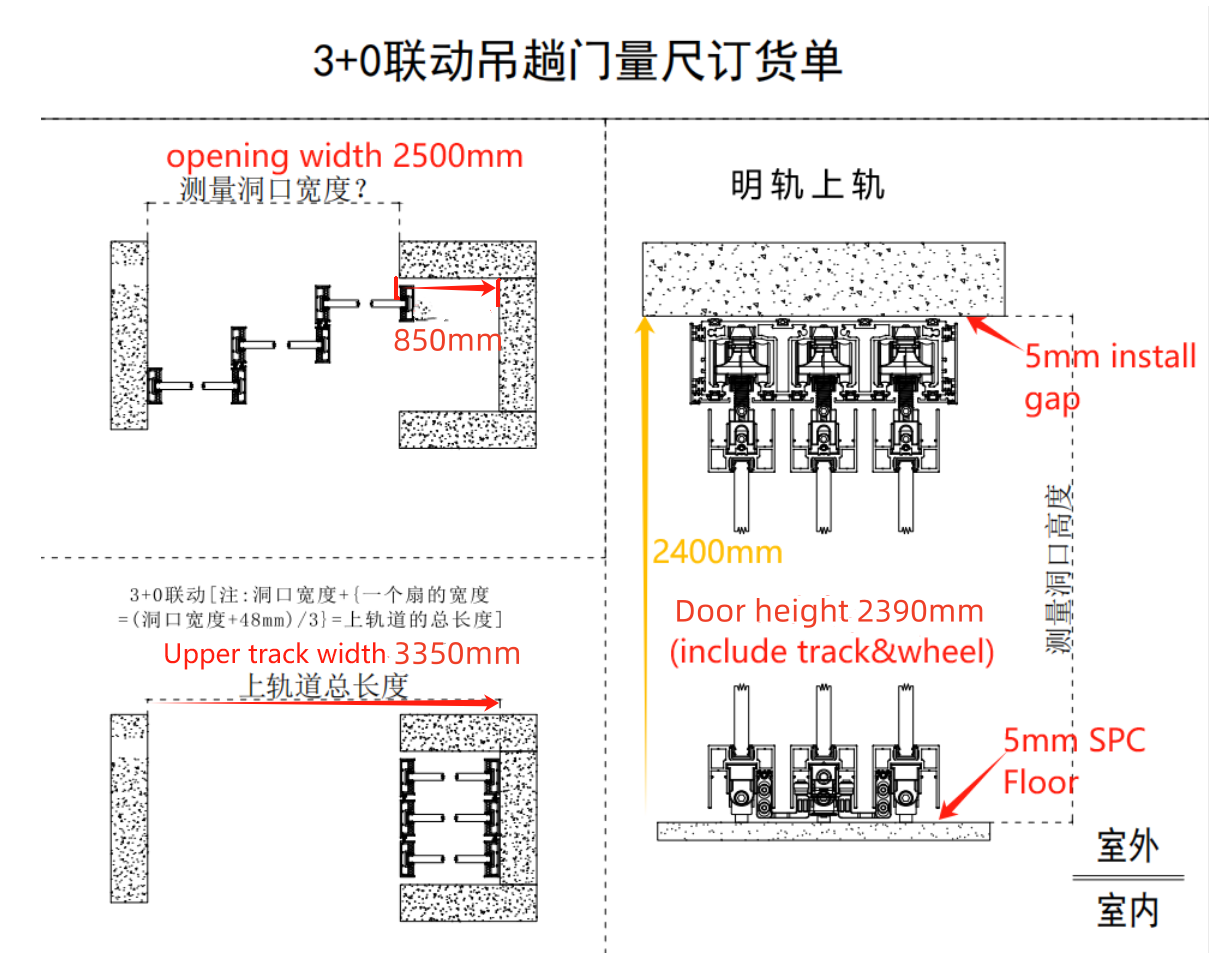

At first, we quickly completed the preliminary design plan based on the site photos and opening dimensions provided by the customer, combined with the actual installation environment, and issued detailed node diagrams and product drawings. This not only helps the customer's contractors understand the product structure and installation process more intuitively, but also lays a solid foundation for subsequent construction, ensuring that the final product has accurate dimensions and perfect functions.
2. M5 Perfect System - Flexible indoor solution

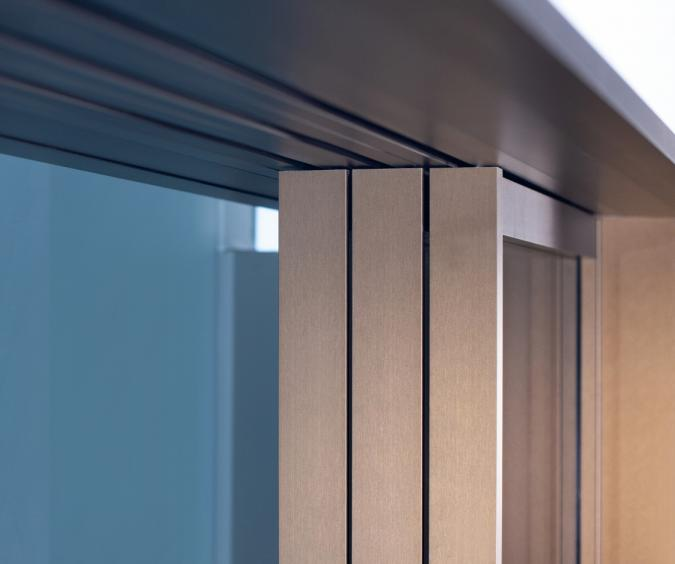

The M5 system is a multifunctional door system designed for home interior partition scenes，feature with OPK hardware. It is widely used,such as pocket doors, ghost doors, different-direction sliding doors, and electric remote sliding doors. The profile width of door panel is only 16mm while the side width is 40mm, which is almost invisible visually, greatly enhancing the beauty of the space.

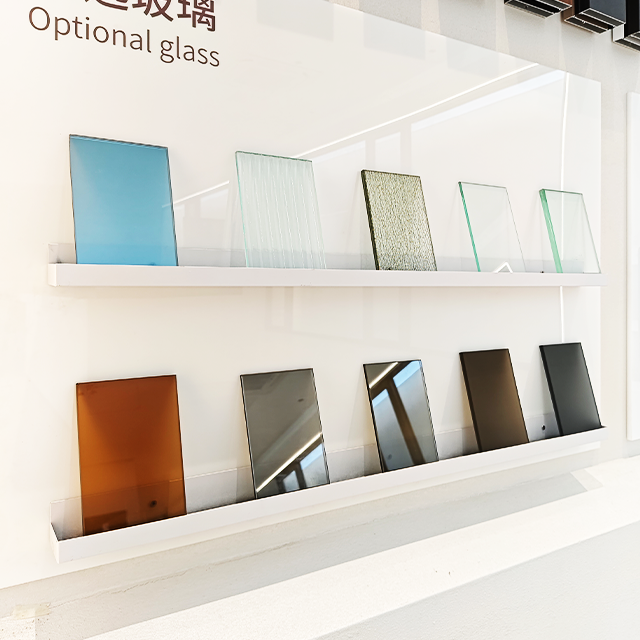

Rolansini M5 comes standard with 8mm single-layer tempered glass and supports a variety of glass material options, including ultra-clear glass, tea glass, gray glass, oil sand glass, wired glass and reeded glass specified by the customer this time, which not only meets the architect design of different styles, but also takes into account privacy and lighting performance.
The profile thickness is 2.0-2.5mm, the structure is stable, and load-bearing capacity is strong. It is suitable for a variety of application scenarios such as kitchens, dining areas, bedrooms, office spaces, and hotels.
3. Safe packaging for global transportation
Considering that this project is an overseas export order and is shipped to the domestic warehouse of the freight forwarder designated by the customer, we strictly follow the international export standards for product packaging, and use high-strength foam and plywood frame external reinforcement structure to ensure that the product is not damaged during long-distance transportation and arrives safely at the construction site.
4. Guidance to help efficient installation
In order to assist the customer's local contractors to successfully complete the installation work, we specially produced a detailed product installation guidance video, covering key steps such as assembly, commissioning, track installation, and pulley adjustment. By combining remote technical support with video demonstrations, the technical problems in the installation process were effectively solved, ensuring the smooth progress of the project.
[Project Results]

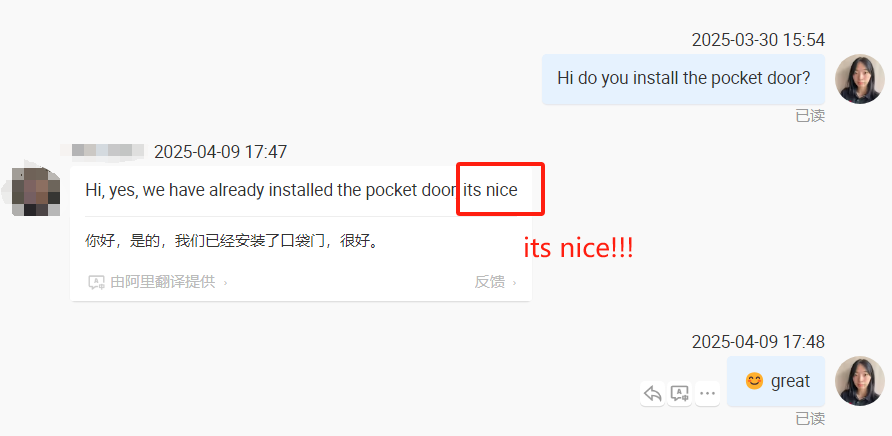

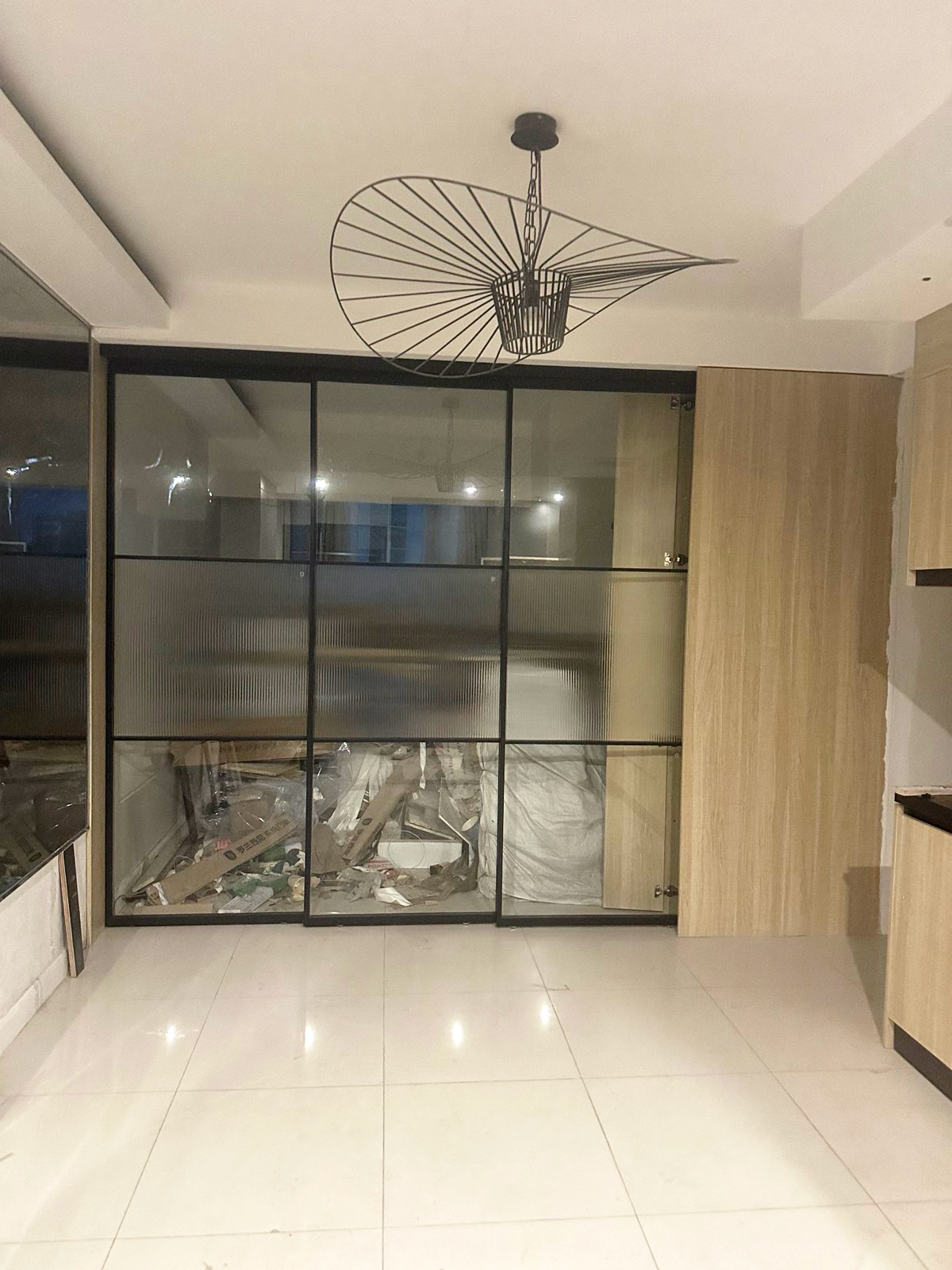

After the installation of the entire set, the customer was highly satisfied with the appearance, smooth opening and closing, and space integration of the product.
[Conclusion]
The successful implementation of this Philippines project once again verified our professional capabilities in high-end customized interior partition systems. In the future, we will continue to deepen the aluminum door and window system, provide more creative and high-quality space solutions for global customers, and make every inch of space full of possibilities. “Keep Home Temperature!"
