P9
Rolansini

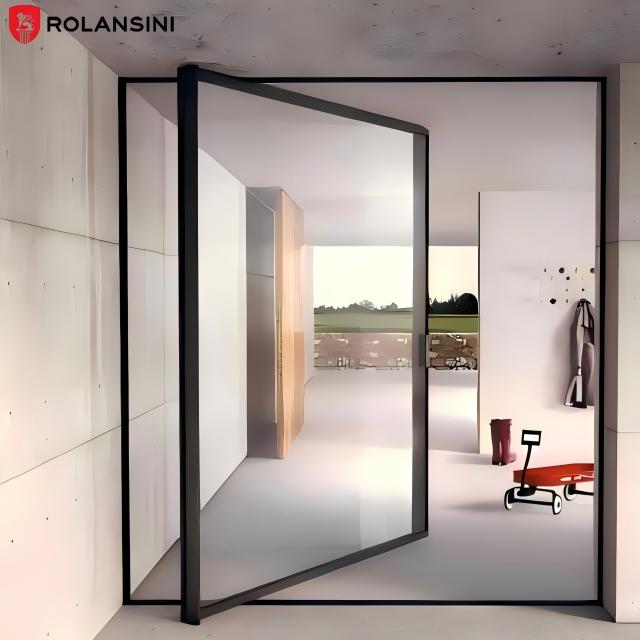

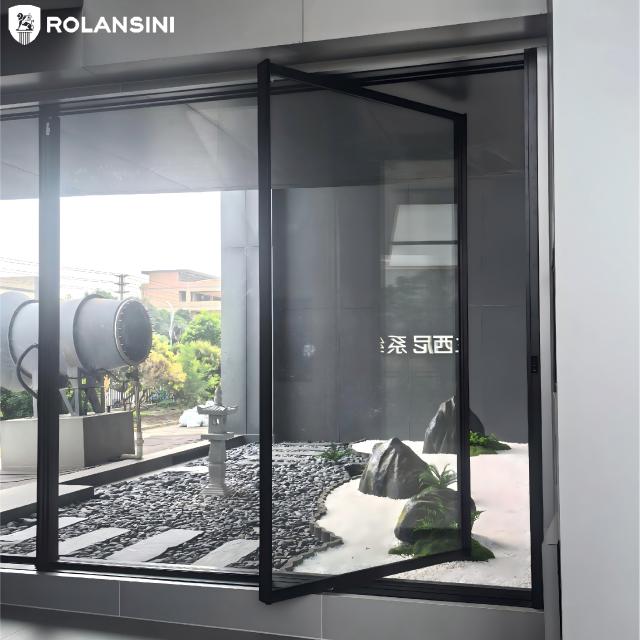

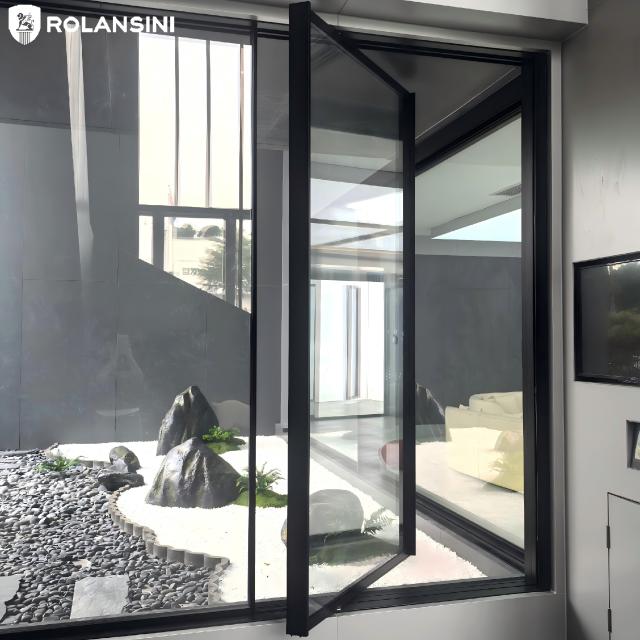

Rolansini pivot sliding glass door is a premium architectural system that fuses expansive glazed panels with a sophisticated dual-movement mechanism. Unlike conventional sliding glass doors that glide rigidly along a fixed track, this innovative design integrates heavy-duty pivot hardware with a lateral sliding rail, enabling the glass panel to rotate around its vertical axis while simultaneously shifting sideways. The result is a graceful "swing-and-slide" motion that transforms static boundaries into dynamic spatial transitions.
| Product Name | Pivot Sliding Door |
| Product Model | P9 |
| Frame Material | 6063-T5 aluminium alloy |
| Operation | Hinge-Free,off-center pivot,slide |
| Glass Types | Double glass,Frosted glass,Reflective glass,laminated glass,Low-E glass etc. |
| Glass Thickness | 8G+22A+8G,10G+18A+10G,12G+14A+12G |
| Glass Coating | Low-E+Optional argon gas fill |
| Frame Color | Matte black,Grey,Starry Gray |

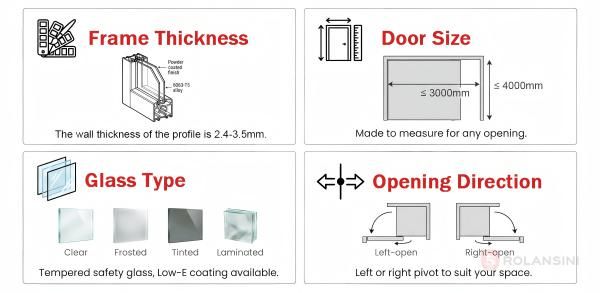

| Profile Thickness | 2.4-3.5mm |

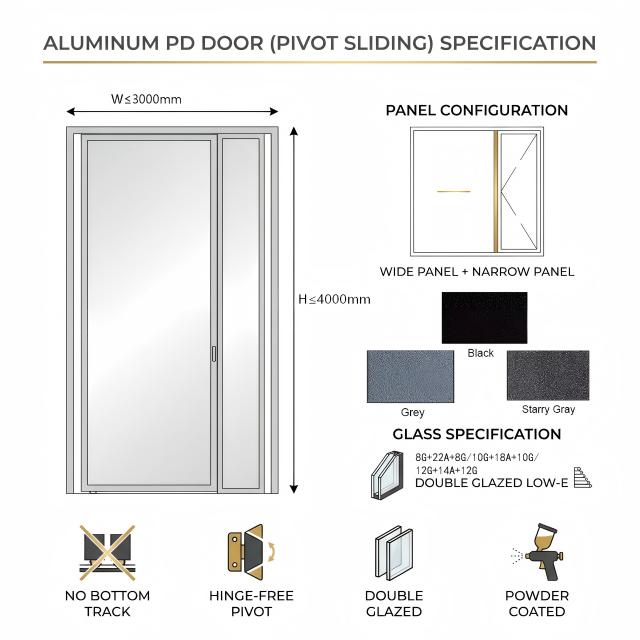

| Width | ≤3000mm(Custom) |
| Height | ≤4000mm(Custom) |
| Wall Clearance | 90.6mm |
| Outer Frame Width | 88mm |
| Window Sash Width | 59mm |
| Maximum Load Capacity | 500kg |
| Thermal Break Strip | 34mm |

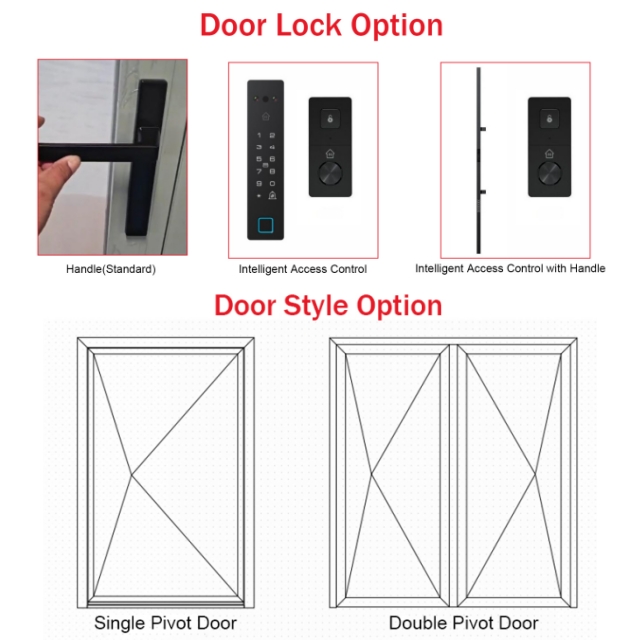

| Standard Hardware | Handle,hinge |
| Optional Hardware | Smart Access Control System |
| Track Style | Trackless |
| Surface Finish | Powder Coat |
| Warranty | 10 years |
| Lead Time | 35-45 workding days |
| Feature | Heat Insulation/Sound insulation/Waterproof etc. |
| Application | Terrace,patio,balcony,courtyard,living room,office, hotel,apartment,etc. |
PD door perfectly integrate two opening methods:
Slide: The door panel can slide left and right on the track, just like a regular sliding door.

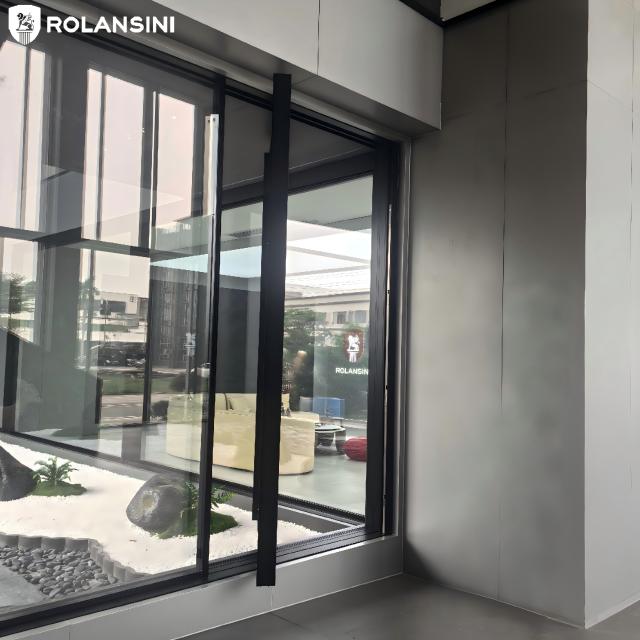

Pivot/Swing: When the door panel slides to the end of the track (side), it can rotate 90 degrees via the off-axis hinges, just like a regular swing door, fitting perfectly against the wall.
In high-end architectural design, large-scale glass panels are used to open up living rooms to backyards or patios. A standard sliding door only opens half of its total width. A pivot sliding glass system allows massive, heavy-pane glass walls to rotate open and stack compactly, creating a dramatic, unobstructed threshold between the inside and outside.
